SierraNet M408 User Manual 161
Switching Views Teledyne LeCroy
Spec View
This view shows the Frame as it would appear in the spec, with the field names and values
spelled out clearly. Fields that are too short to clearly contain the description can be
viewed as tooltips by hovering the mouse over them. Some fields might have a a
lowercase ‘e’ button at the top right corner. Pressing this button displays an ‘expanded’
view of the sub‐fields in this field.

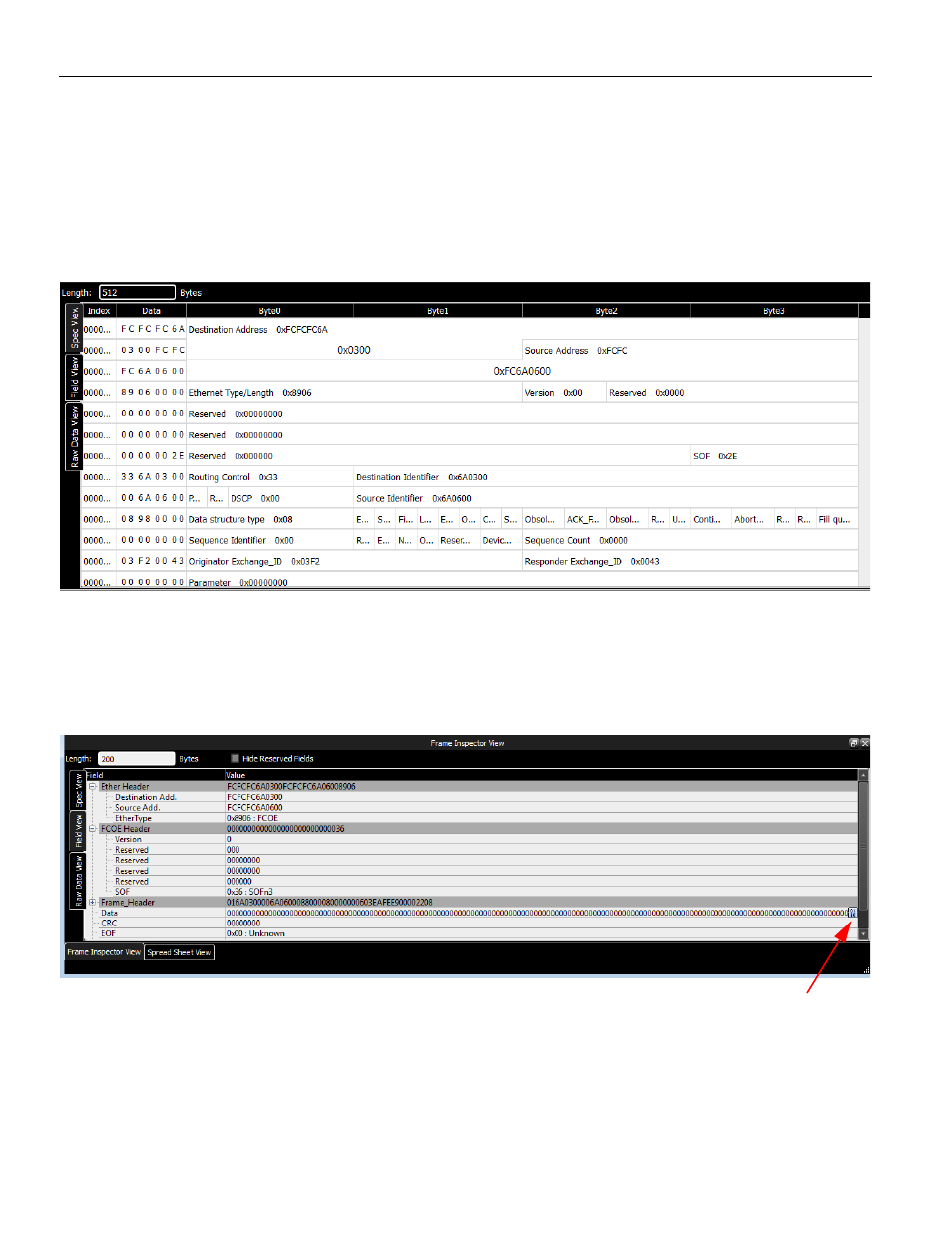

Figure 3.20: Frame Inspector-Spec View
Field View
This view shows, when applicable, a hierarchical display of the selected Packet, with the
relevant fields in each level.
Figure 3.21: Frame Inspector-Field View
Click the Data Payload button to display the Data Payload dialog (see Figure 3.22 on
page 162 ).
Data Payload Button
