SierraNet M408 User Manual 11
Analyzer Overview Teledyne LeCroy
On the back, the Analyzer has:
 Power In
 SYNC Expansion Card In/Out data ports (optional)

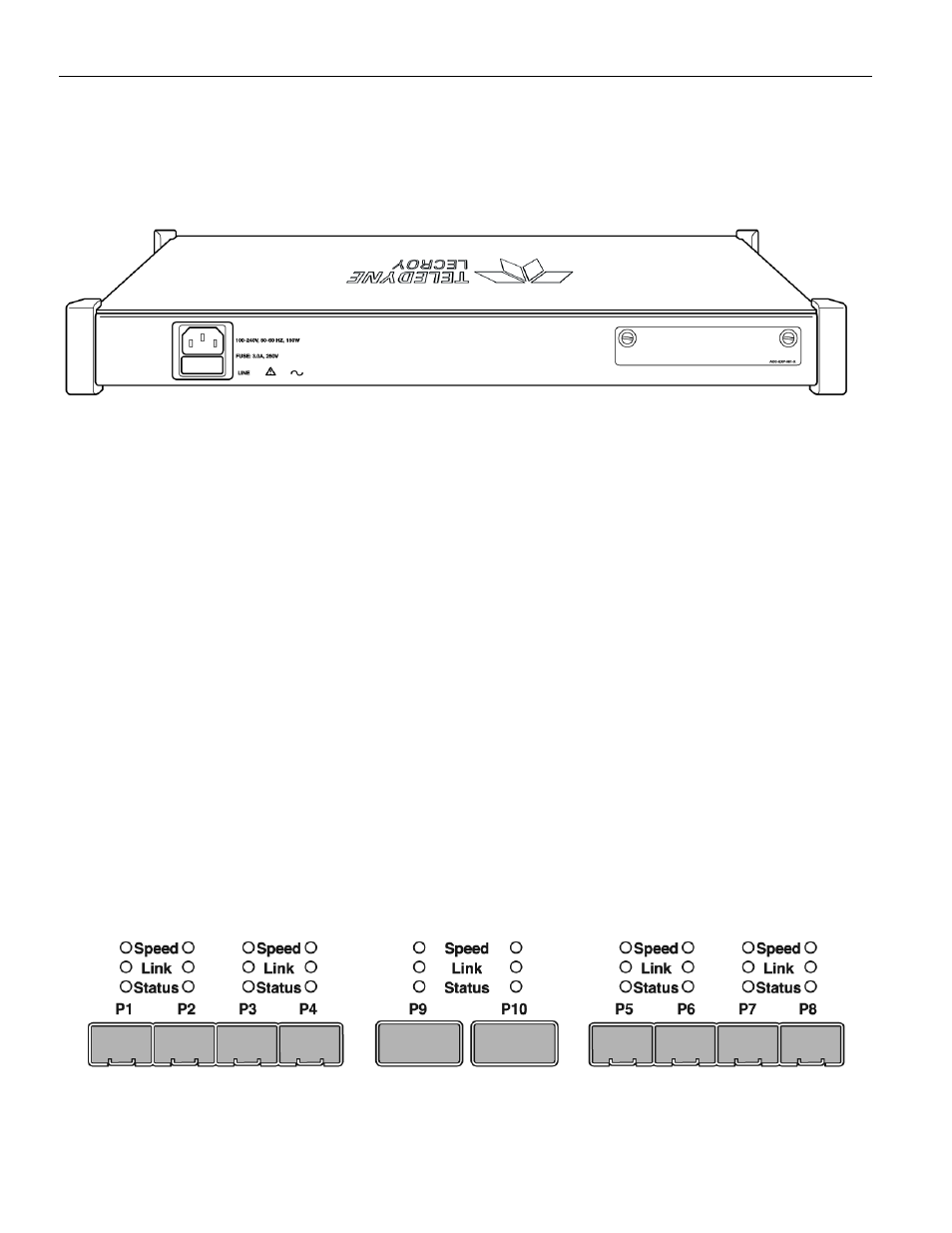

Figure 1.3: Back Panel
1.1.4 LEDs
LEDs indicators support each port link pair (P1 ‐ P2; P3 ‐ P4; P5 ‐ P6; P7 ‐ P8 and P9 ‐10)
with the following functionality (see Figure 1.4):
Speed LEDs
GigE Fibre Channel
Yellow Reserved 4G/2G/1G FC
Green 10GigE 8G
Blue 40GigE 16G
Link Activity LED
Green
Network activity
Yellow Link up, no activity
No Color No link
Status LED
Yellow Blinking
Waiting for trigger
Yellow Solid Trigger activated
Red Error detected
No Color Off
Figure 1.4: LEDs on the Front Panel
