Trigger and Filter Settings in Easy Mode

116

SierraNet M408 User Manual

Trill Frame

Double‐click Trill Frame to open the dialog.

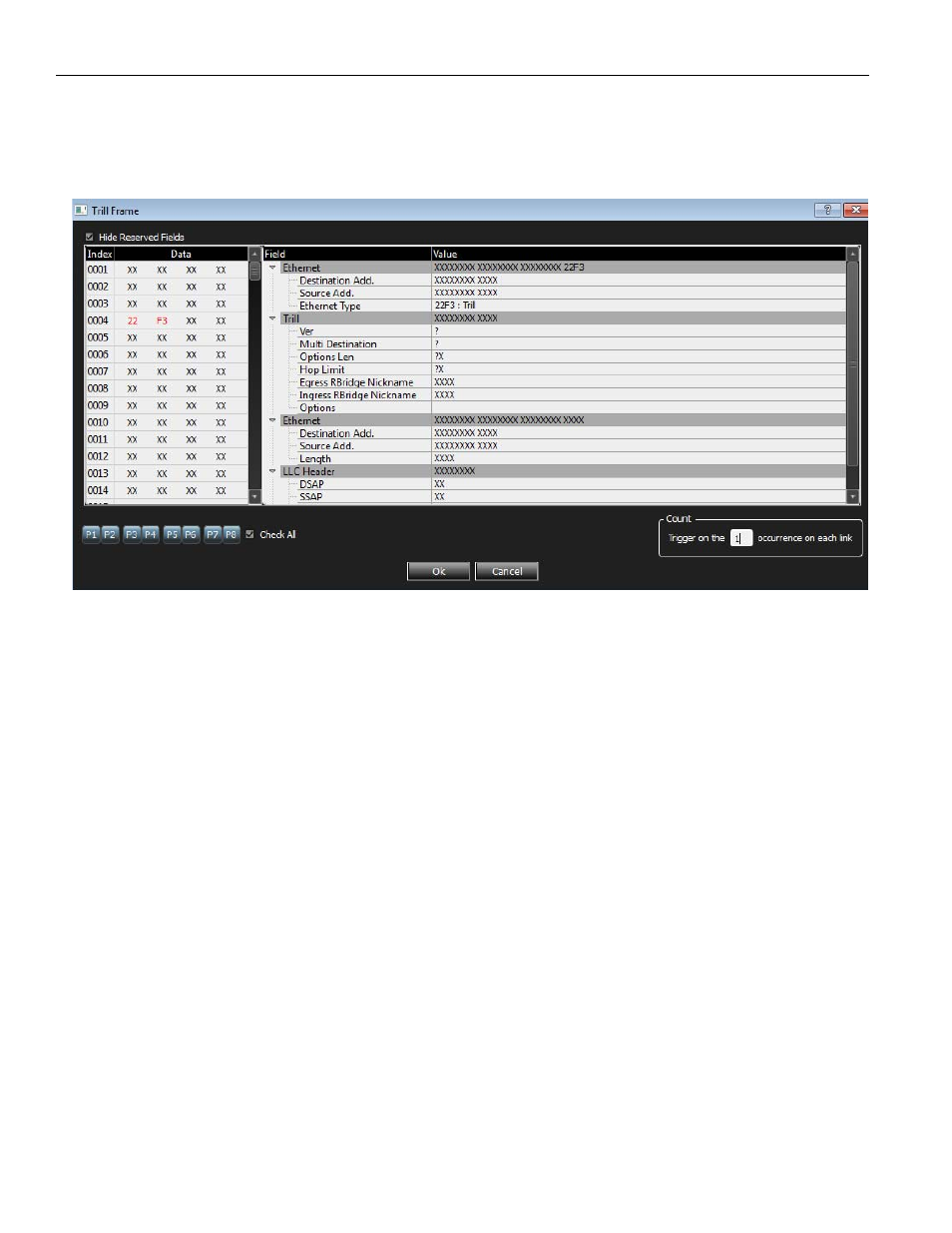

Figure 2.76: IP Frame Dialog

Enter the values for the Ether header, Trill and the count of the expected number of
occurrences. Check the Check All box to select ports P1 through P8 or individually select
ports.
