Teledyne LeCroy Trigger and Filter Settings in Easy Mode
118 SierraNet M408 User Manual
Timer
You can set a timer independently of any other trigger selection, to cause an
unconditional trigger after a set time.
Double‐click Timer in the Pattern window to open the Add Timer Pattern dialog (see
Figure 2.78 on page 118 ). Check a Time Unit, enter the Timer Value, and click OK.

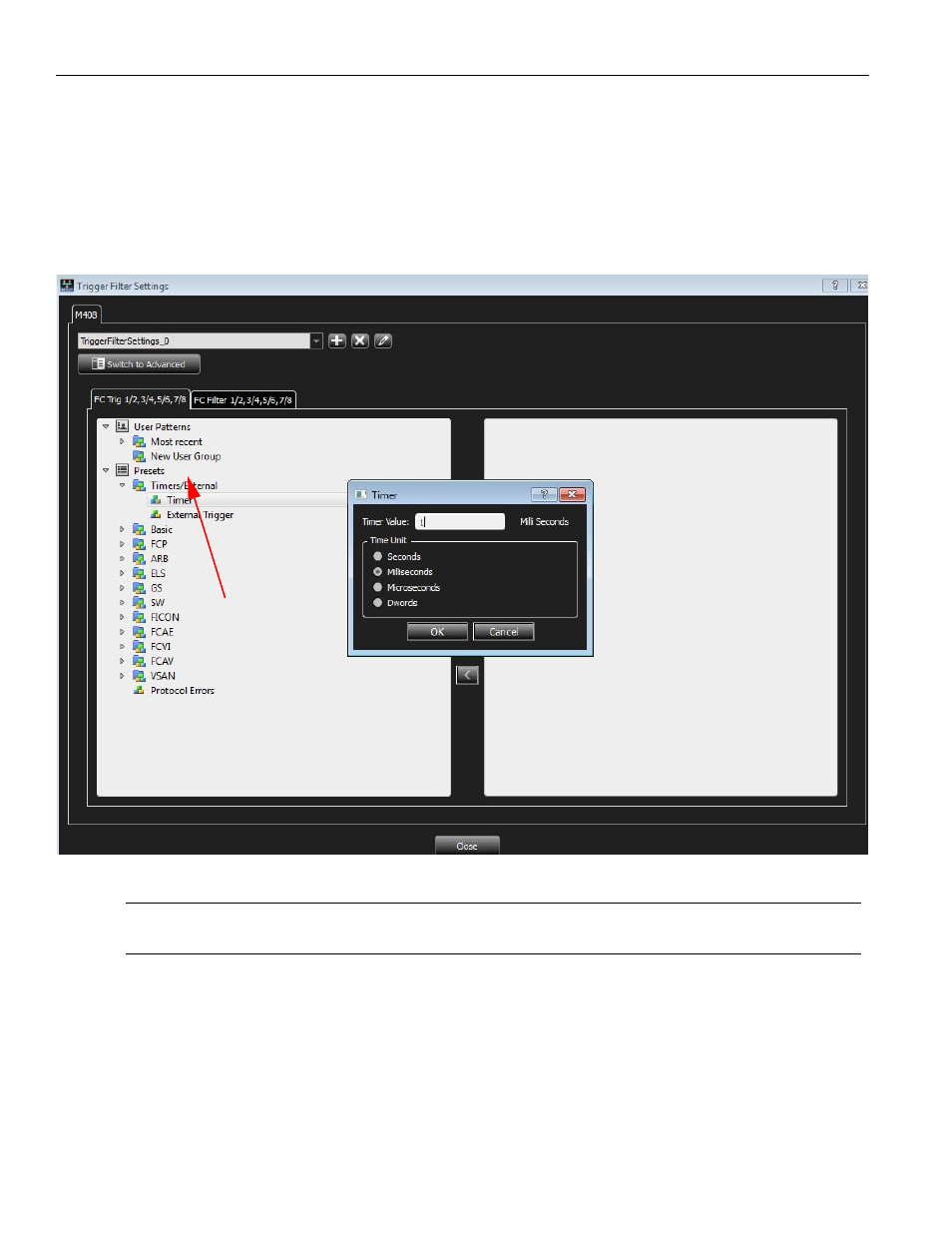

Figure 2.78: Add Timer Pattern Dialog
Note: The timer and timeout resolution is limited to one DWORD. The minimum value is 12‐13
DWORD.
External Trigger
Please refer to “Probe Calibration” on page 70 and “External Trigger” on page 88.
