SierraNet M408 User Manual
163
Switching Views
Teledyne LeCroy

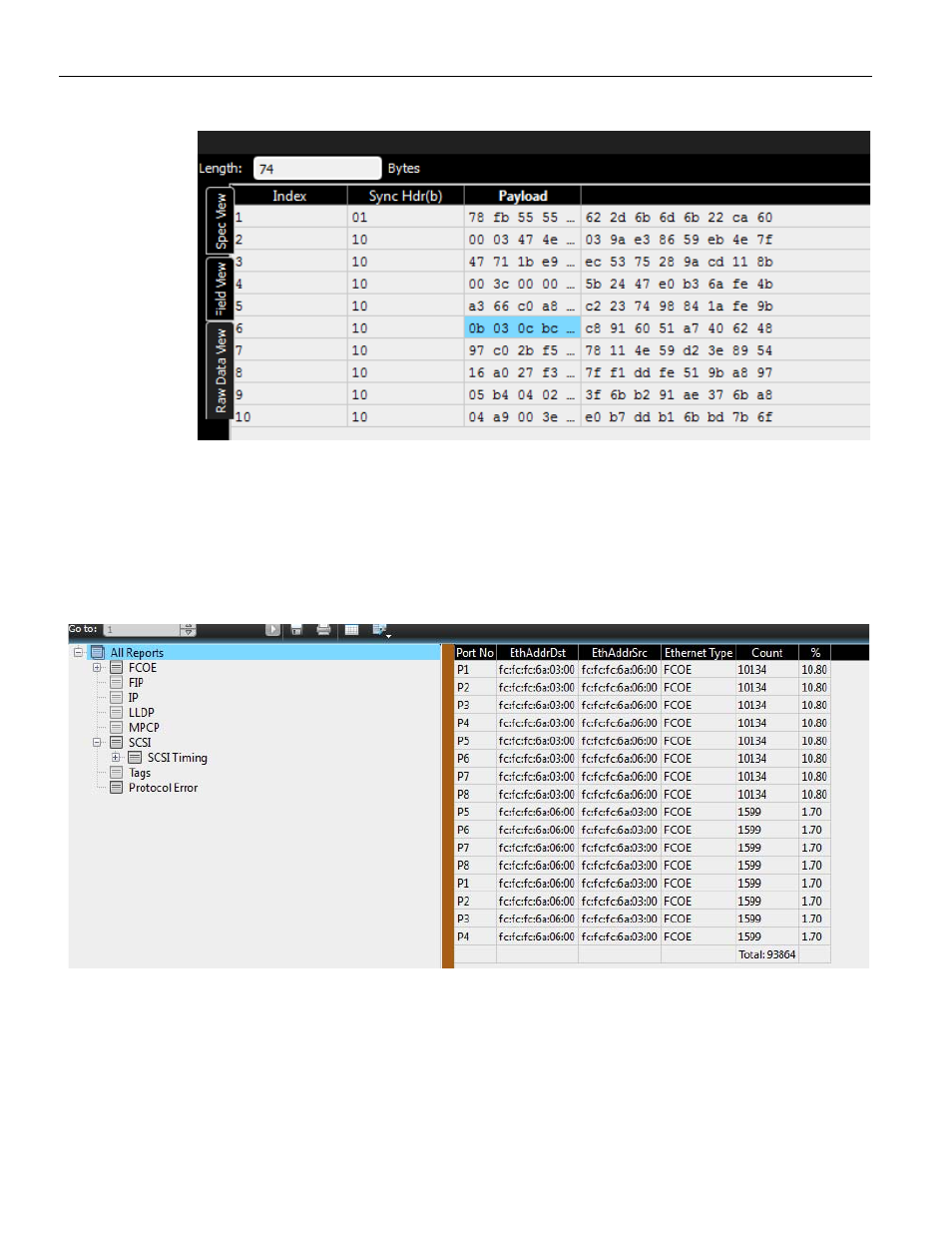

Figure 3.23: Raw Data View without FEC
3.2.4
Traffic Summary View
The Analysis menu option allows you to run a traffic summary of the captured trace. The
Traffic Summary View for each captured pattern can be viewed. This Summary View
displays the port number, statistics and the percentage of the total count.
Figure 3.24: Traffic Summary View
