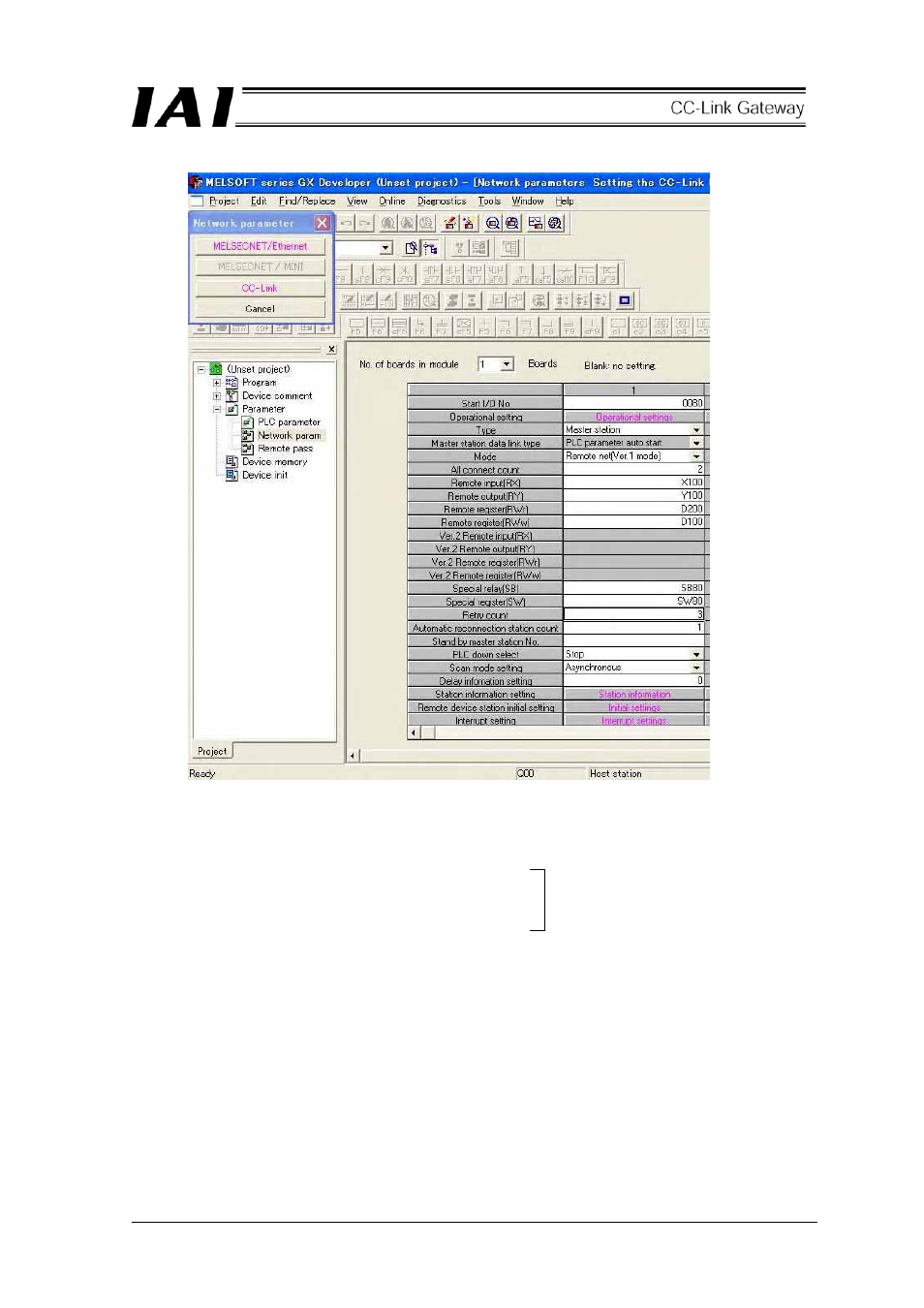

[3] Set parameters as shown below from now. Mode setting should be “Remote net [Ver. 1 mode].”
Parameters different from initial setting are as follows.
・
“Start I/O No”
・・・・・・・・・・・・
I/O address of master unit, 0080
・
“All connect account”
・・・・
Number of remote stations, 2
・
“Remote input (RX) Refresh device”
・・・・・・・・・
X100
・
Remote output (RY)
・・・・・・・・・・・・・・・・・・・・・・・・・
Y100
・
Remote register (RWr)
・・・・・・・・・・・・・・・・・・・・・・
D200
・
Remote register (RWr)
・・・・・・・・・・・・・・・・・・・・・・
D100
・
Special relay (SB)
・・・・・・・・・・・・・・・・・・・・・・・・・・・
SB80
・
Special register (SW)
・・・・・・・・・・・・・・・・・・・・・・・・
SW80
Install master station buffer
memory to an internal device
of the PLC-CPU.
