MOD 30ML Data Base Reference

BUILT-IN ANALOG OUTPUT BLOCK

2.8.3

Typical Block Connections for Built-In Analog Output Block

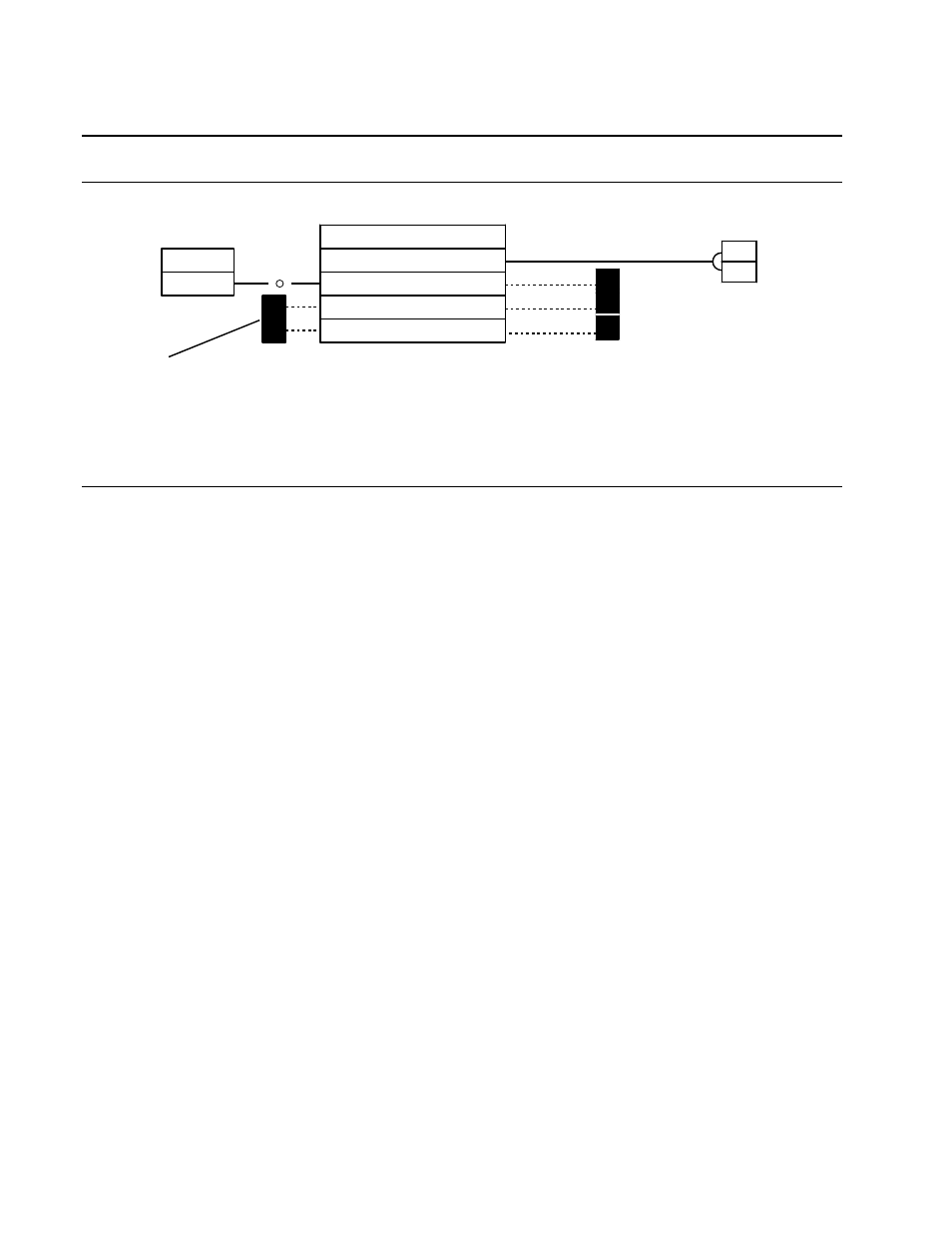

Typical softwiring block connections are shown in Figure 2-30.

R

MODE

RSC

Operator indication of

input value, output value,

and mode.

Input

Operator write access to set

mode and scaled result.

LN1

Result

Scaled Result

Mode

Result

AOUT1

17
16

INPUT

Figure 2-30. Built-In Analog Output, Typical Block Connections


2.8.4

Built-In Analog Output Block Events

The event codes (and their suggested text messages) for the built-in analog input
block are given below. See the descriptions of referenced data base attributes (in
brackets) for additional information. See the system event block for a description of
event transitions.

4

BLOCK MODE SET TO AUTO (Attribute No. 14)

5

BLOCK MODE SET TO MANUAL (Attribute No. 14)

6

I/O COMMUNICATIONS ERROR (Attribute No. 05)

7

OUTPUT ERROR (Attribute No. 08)


2-86
