MOD 30ML Functions

TUNE LIST BLOCK

Tune List Display Formats
Use this display page to configure up to 512 format types for a tune list block. Multiple inputs
can be assigned the same format.

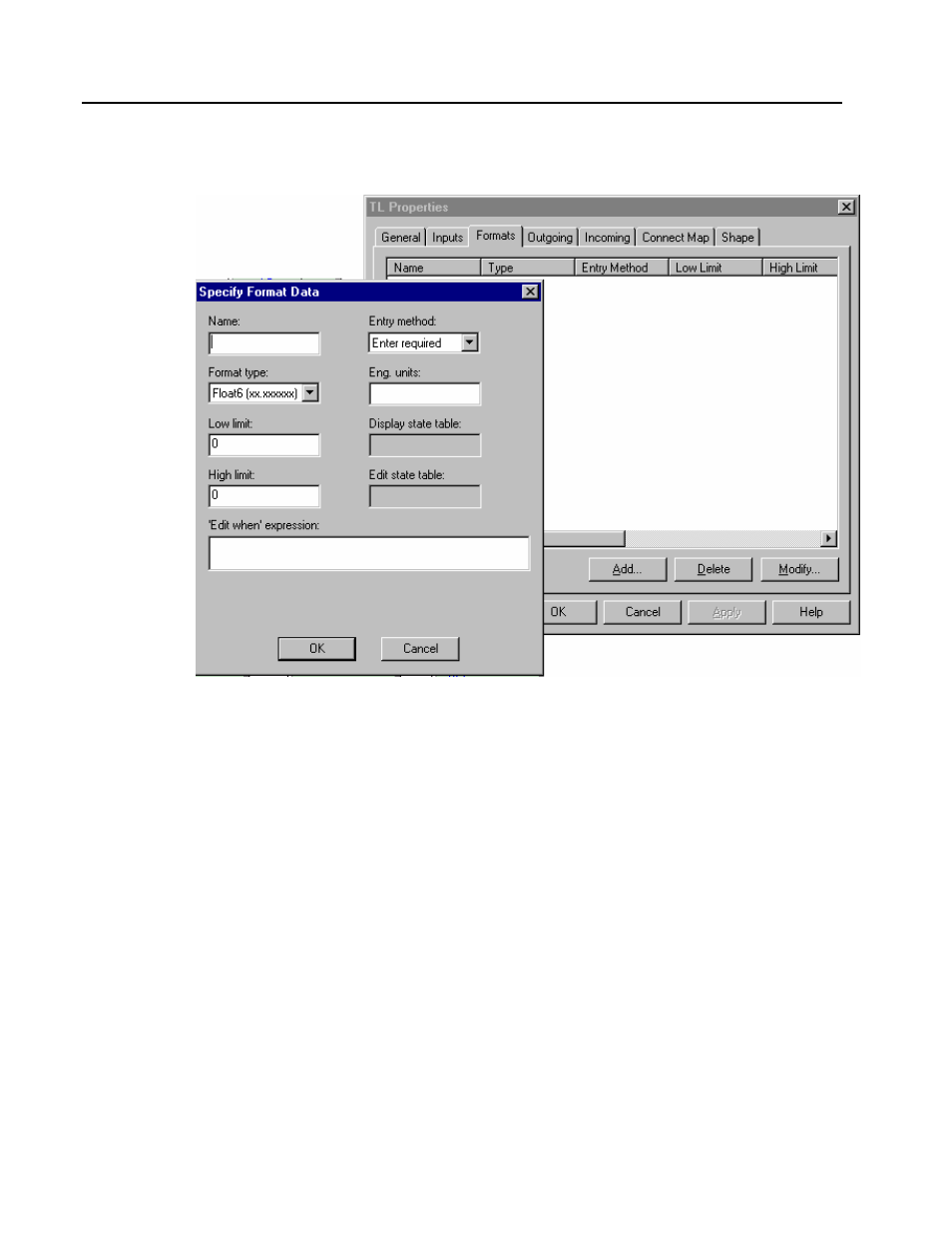

Figure 2-17. Tune List Display Formats, Edit Display, page 1

Select Add or Modify to edit formats and Delete to remove a format.

Move Up, Move Down
Select the item to be moved up or down and then select the Move Up or Down button to
move the item.

Duplicate
Select the item to be duplicated and then select the Duplicate button to make a copy (default
name is assigned).

Name

Eight characters that start with a letter and contain only letters, digits, and underscores. This
becomes the unique name of the format for reference in this block.

Format type
:
Table 2-6 lists the different display format types and what fields are active for each type. A
referenced format cannot be NONE.
