Micromod MOD: 30ML Functions Data Base Reference User Manual
Page 116
MOD 30ML Functions
CONFIGURATION EXAMPLES

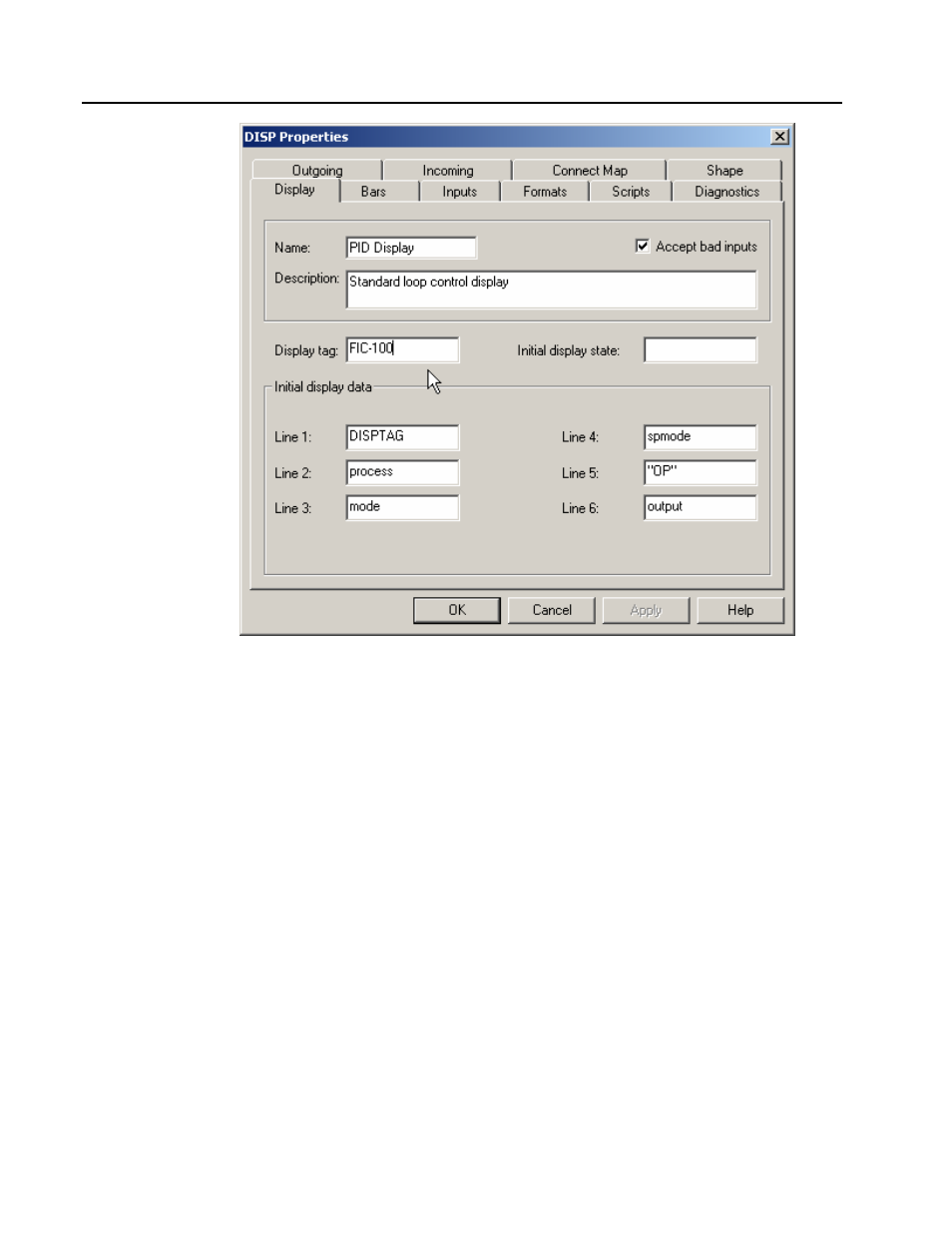

Figure 3. 28.
Display block Properties
• Click on OK to accept the changes.
• Click on a empty are of the workspace to deselect any selected blocks. Close the loop
compound by right-clicking and then selecting Close Compound from the resulting menu.
Refer to the next figure.
3-22
