MOD 30ML Functions

CONFIGURATION EXAMPLES

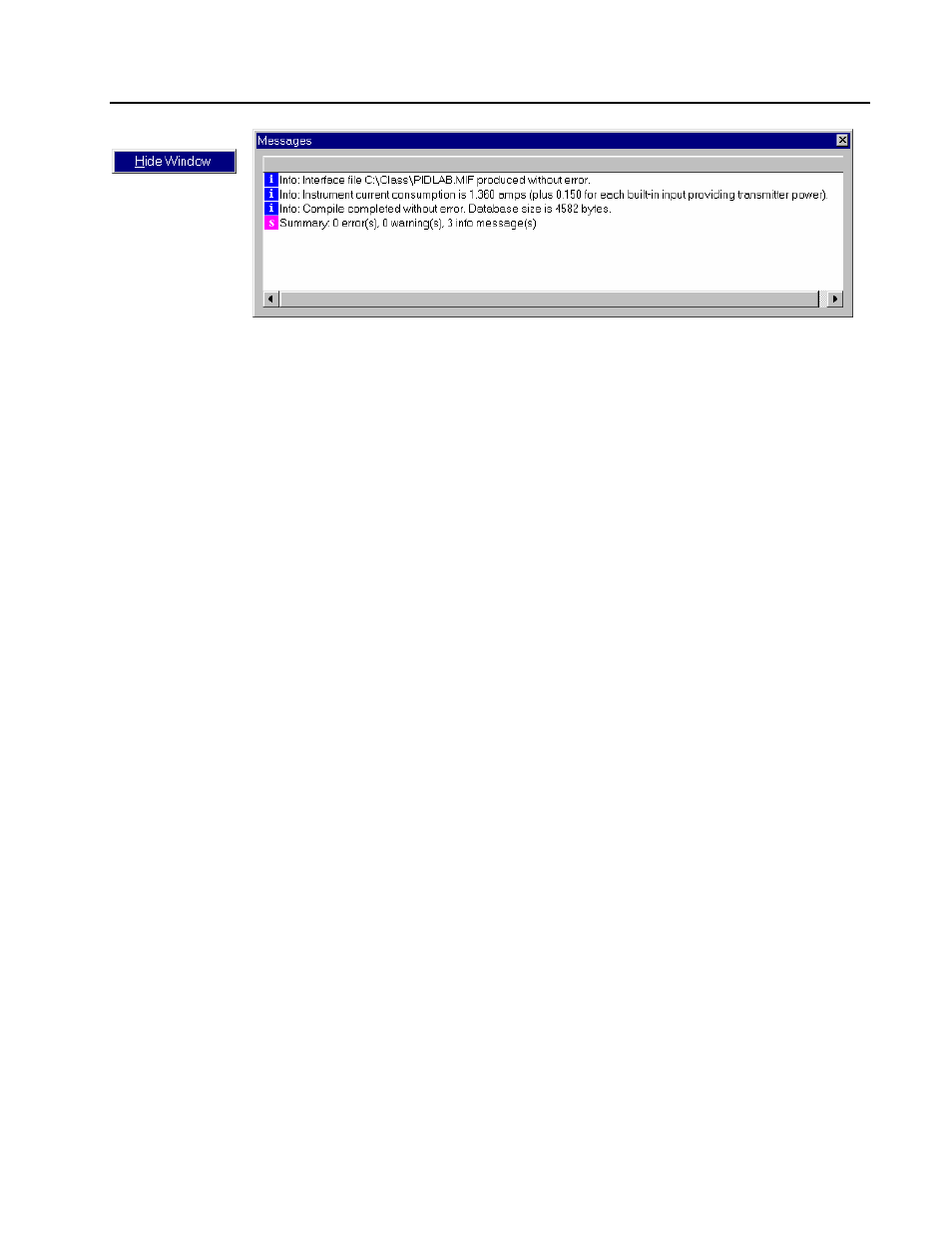

Figure 3. 33. Information Window

• You can double-click on an error to open the block that has a configuration problem. If the

database has no errors, there is a message saying that the Compile was completed without
error.

• Also look for messages on database size and current consumption of the instrument.
• You can close this info sub-window by right-clicking on the window and then clicking on the

resulting Hide Window button or by selecting View-Information from the menu bar at the
top.

Refer to the VIZAPP Training manual (IB-VIZAPP-TUT) for information and labs on
configuring OPC Server for communicating with the controller and downloading a
compiled database. For more configuration examples and labs, refer to the Vizapp
Training Manual and also the Display Script Guide IB-1800R-SCR.

3-25
