MOD 30ML Data Base Reference
BUILT-IN ANALOG OUTPUT BLOCK
2.8 BUILT-IN ANALOG OUTPUT BLOCK (AOUT)
The built-in analog output block serves as the data handling block for the built-in
current output circuit. This block is used to output an analog value to the current
output circuit. The output circuit converts the value to a milliampere field signal.
This block determines output scaling, tracking and failure conditions.
Available to the user as block outputs are the result, scaled result, track status, and
the data quality for each of these attributes. Also available is the active and
unacknowledged status of the block diagnostic errors. A functional block diagram
of a built-in analog output block is shown in Figure 2-27a (part 1) and Figure 2-27b
(part 2). The Built-In Analog Output Block edit display, which is used to configure
the block, is shown in Figures 2-28 and 2-29.
Bad
Lock
Initialize
Bad
Unlock
See PART
2
Manual
TRACK
Auto
Normal
Lock
Manual
Auto
BAD
GOOD
Input
LSP
FP Value
AND
OR Track
Status
I/O Lock
(from IF Block)
Initialize
PART 1
TRUE
Bad Inputs
Accepted
(YES/NO)
Quality Check
LSP Data Quality
GOOD
Mode
Manual
Auto
RQ
GOOD
Sheet 1 of 2
TRKQ

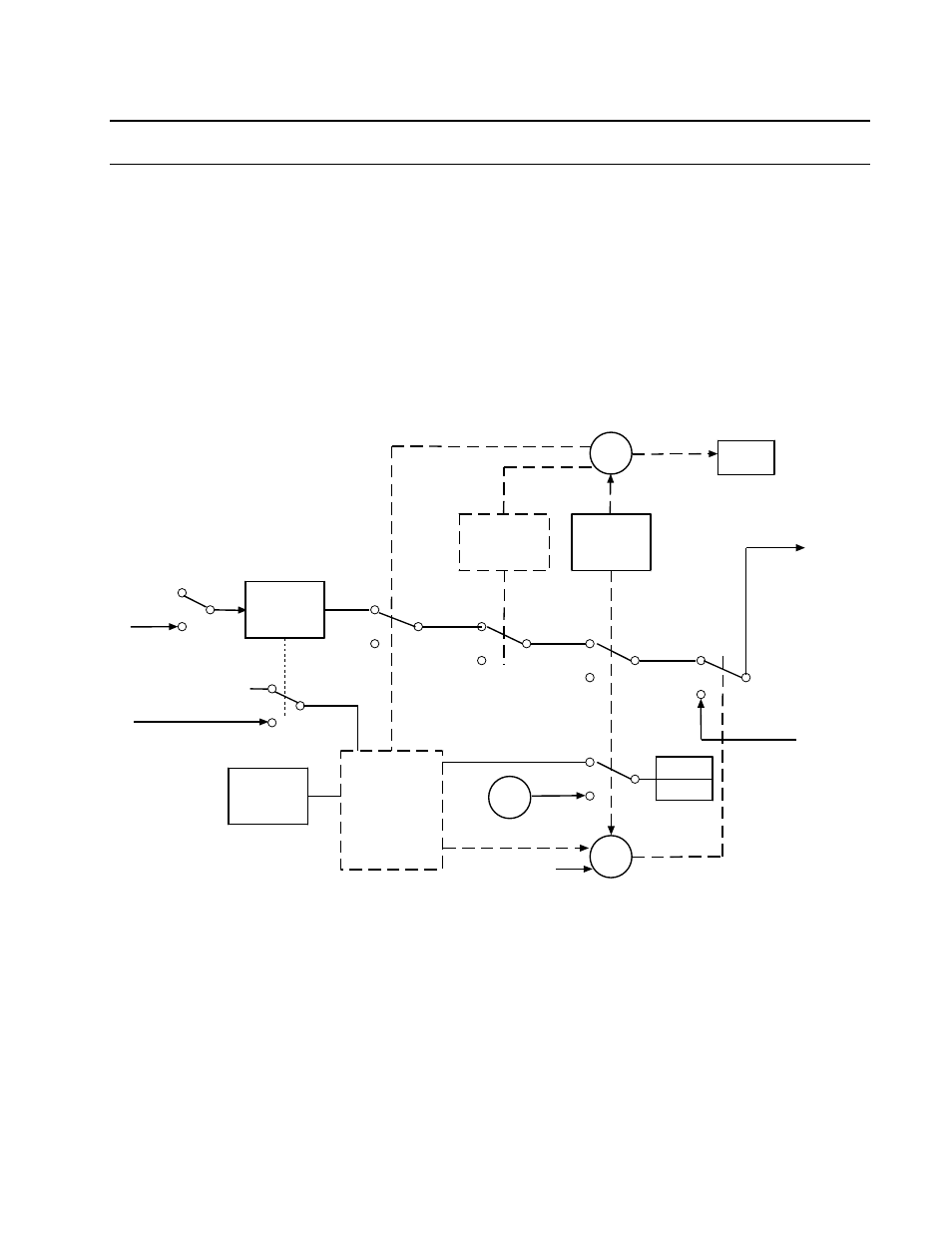

Figure 2-28a. Analog Output Module Block, Functional Block Diagram (Part1)
2-77
