MOD 30ML Functions
CONFIGURATION EXAMPLES
5. Add a loop compound. We will configure our control loop inside this loop compound.
• Select the Loop Cpd (Loop compound) block from the Algorithms window add it to the
document. Do this by first locating the block in the menu by selecting the All submenu at the
bottom and then by dragging the scroll bar on the right up/down. See the next figure:

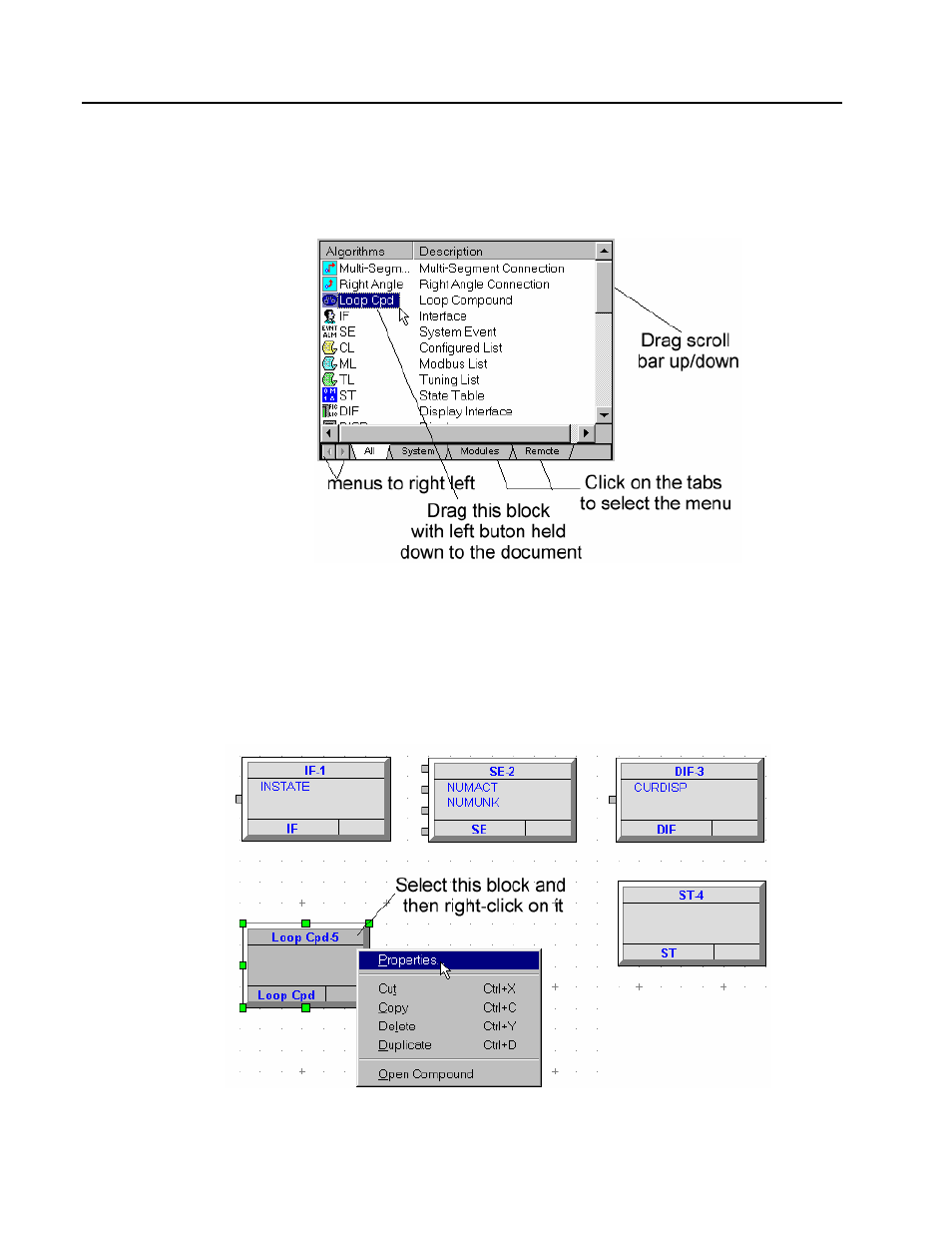

Figure 3. 11. Algorithms menu
• Drag the Loop Cpd block (Loop Compound) from the Algorithms menu on the left frame to
the right frame. Click on the Loop Cpd block with your left mouse button and then drag it to
the instrument document. Click on the mouse button to place the Loop compound block with
the other existing blocks (IF, SE, DIF and ST) on the right frame.
6. Configure a name and description for the Loop Compound: Click once on this block with
your right mouse button. A menu as shown in the next figure will appear.
Figure 3. 12. Loop Compound Properties
3-8
