MOD 30ML Functions
CONFIGURATION EXAMPLES
• Move the cursor to the ML_PID compound and either double-click, or select it and then select
the Export button. The Component Gallery dialog box closes and the ML_PID compound is
placed in your workspace. The compound is highlighted with small green boxes.

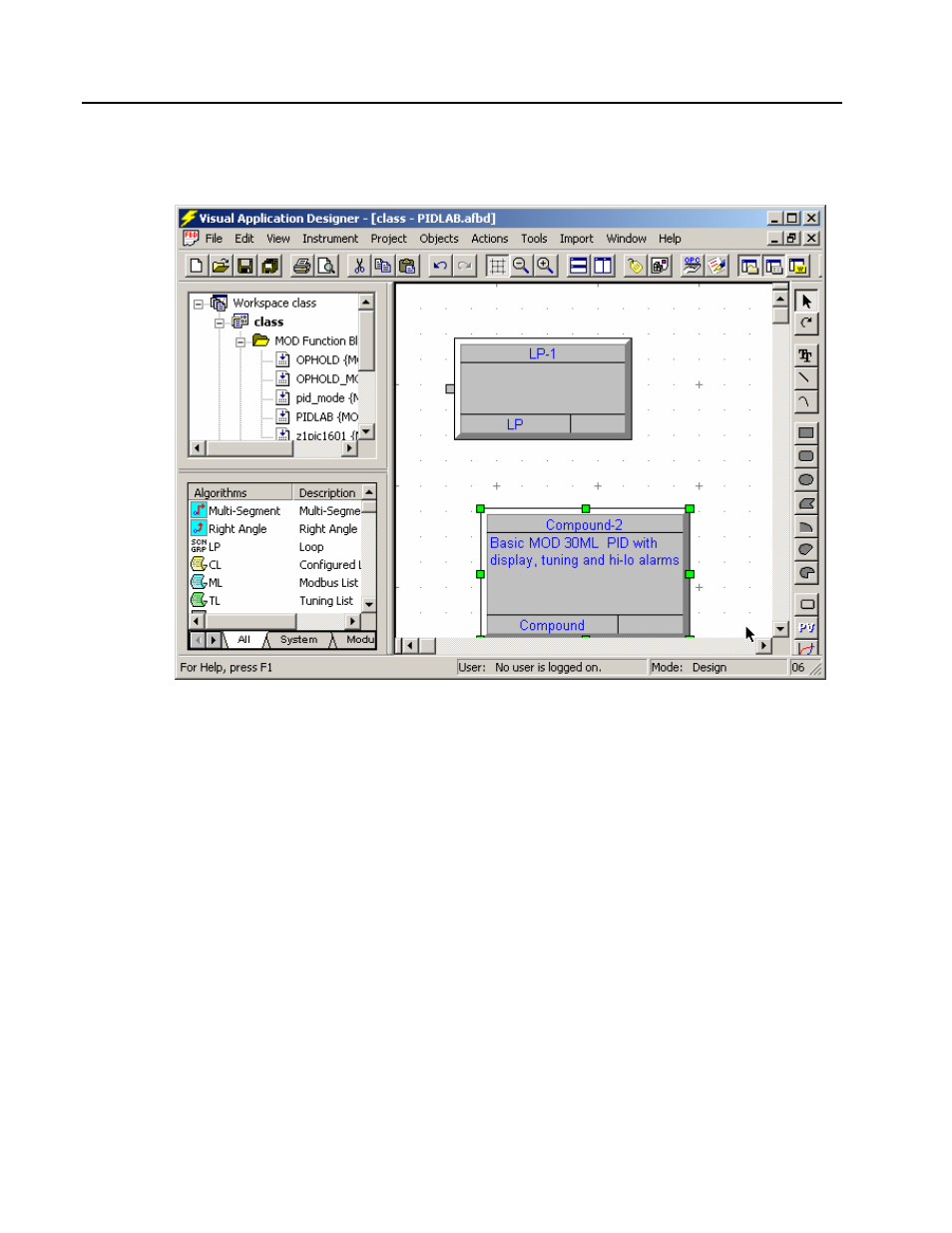

Figure 3. 18. Loaded compound
• With the compound selected, select Objects – Uncompound from the menu bar. This will
break and open the compound. You will see a set of function blocks as shown in the next
figure.
• Click elsewhere on the screen to deselect the function blocks.
• The loaded blocks include a AIN (built-in analog input), VCI (Signal Conditioning for
voltage/current input), PID, AOUT (built-in current output), DISP (display), a TL (tuning list
block (TL) and two PAD (process alarm display) blocks.
• Click on OK to close the block.
3-12
