MOD 30ML Functions

CONFIGURATION EXAMPLES

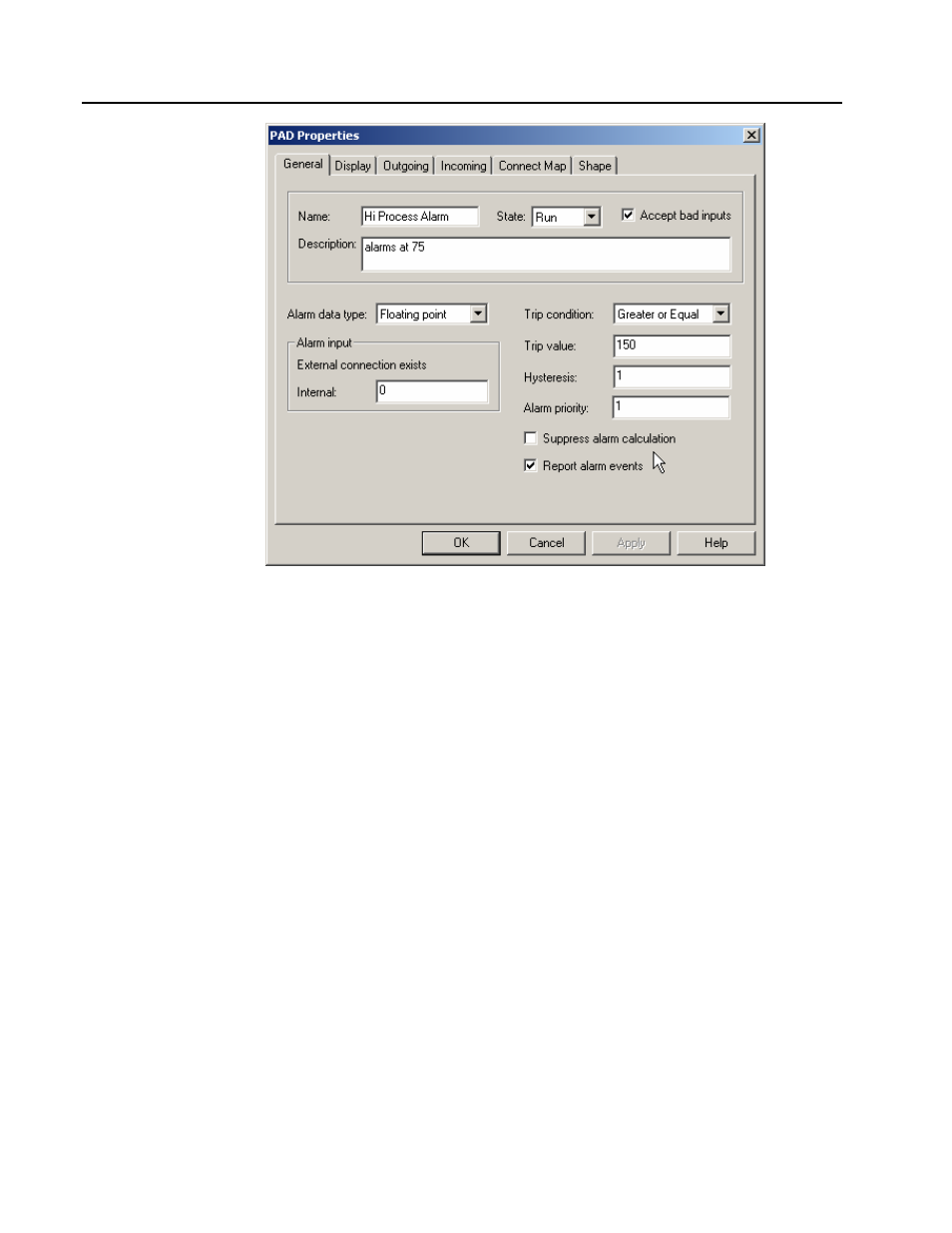

Figure 3. 26.

PAD block Properties

• Change the Trip value to 150 and then click on OK to accept the changes.
• The alarm label for this alarm is PROCESS HIGH. Optionally you can change the Alarm

Label for this alarm from the Display tab of the PAD block.

• Click on OK to accept the changes.
• Open the PAD block Lo Process Alarm by double-clicking on it. Refer to the next figure.
• Change the Trip value to 50.
• The alarm label for this alarm is PROCESS LOW. Optionally you can change the Alarm

Label for this alarm from the Display tab of the PAD block.

3-20
