MOD 30ML Functions

CONFIGURATION EXAMPLES

3.3.8

PIDTOT2.CSM- Totalizer and PID with Separate Commands Menu

This compound includes the totalized value as part of the PID display. However, the totalizer
commands menu is assigned to a separate display tag.

To use this compound:

1. Enter your loop tag name in the display (PIDDISP and TOTDISP) blocks and in the tag

list of DIF block.

2. Set

the

to “User” and enter the Display Tag name in the

field. This causes the instrument to come up after a power loss with your new display.

3. Enter the totalizer block and set the proper rate, threshold, etc. values.

4. Set the input and PID block fields to meet with your particular application.

5. Enter a scan group rate in the IF block.

6. Add the data found in the State Table Description block to the State Table Block by

adding the state table found below.

7. Place the proper communications block.

8. Compile and download the strategy.

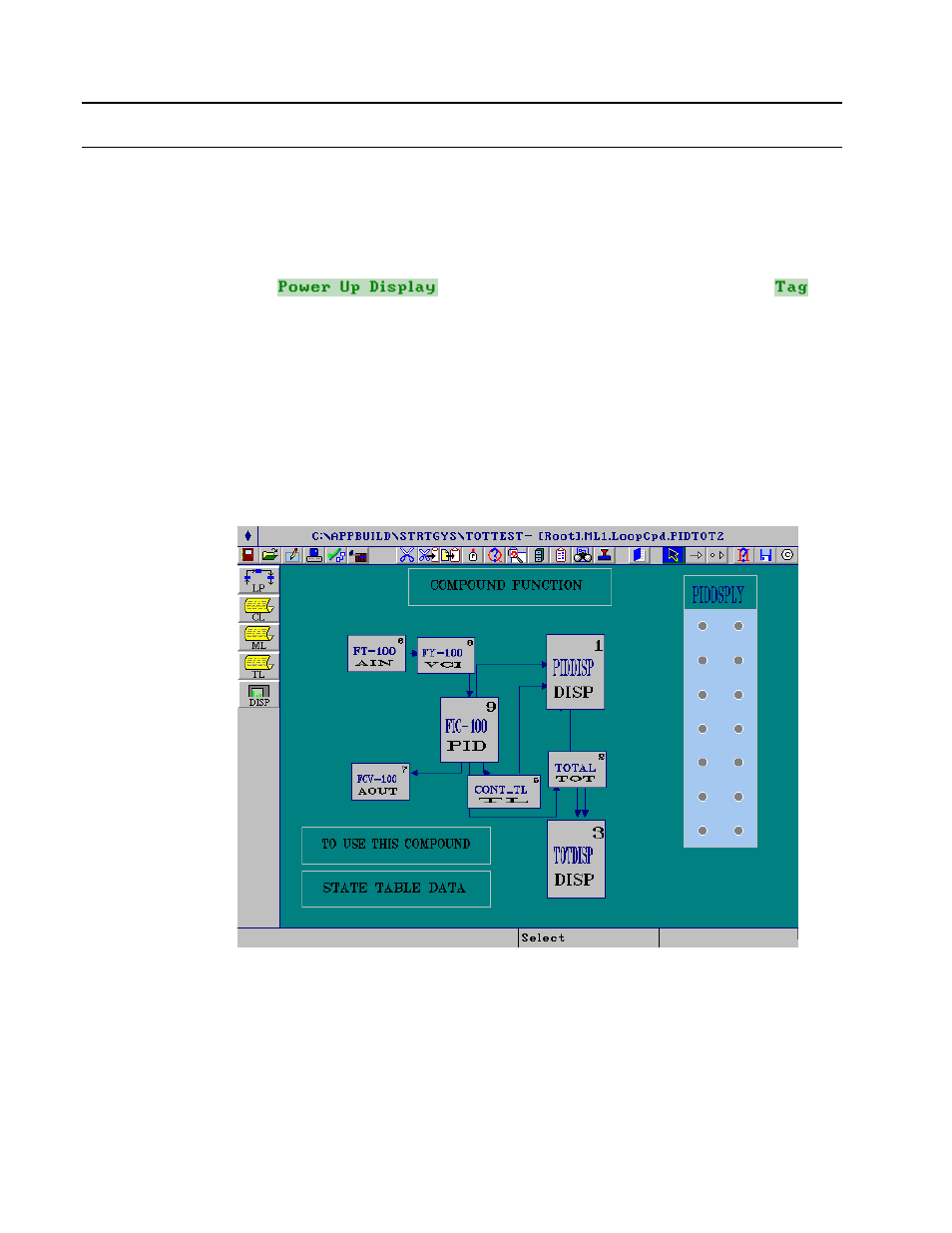

Figure 3. 37. Totalizer 2 Compound
