MOD 30ML Functions

CONFIGURATION EXAMPLES

• Open the DIF (Display Interface) block as shown in the figure above.

• Click on the New button on this block as shown in figure above: A text edit box will appear

in the area below and you will see a text edit cursor blinking.

• Type the name of your display tag (FIC-100). Click on the OK to accept he changes.

11. It is important that you save the database. Select File – Save All from the menu bar.

12. Compile the database by selecting Instrument-Compile from the menu bar.

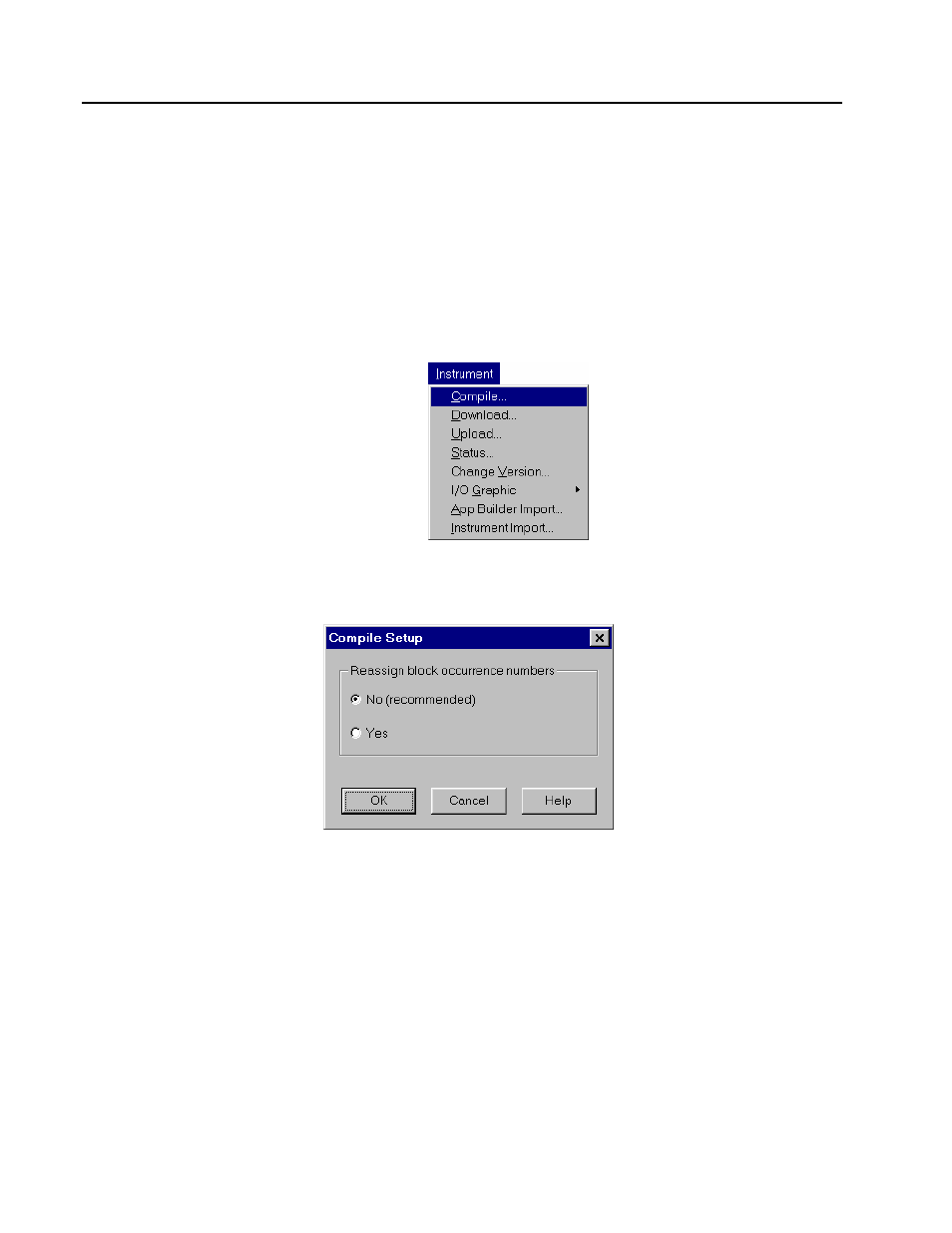

Figure 3. 31. Instrument Compile

• The Compile Setup dialog box as shown below will appear. Click on OK (Do not reassign

block occurrence numbers).

Figure 3. 32. Compile Setup

• The Interface File Options dialog box will be displayed as shown next. Click on OK. For more

information about Interface File options, refer to the ViZapp Training Manual IB-VIZAPP-TUT.

• Click on OK. If the database has errors, it will not be compiled successfully. A list of errors

will be displayed on the screen in a sub-window along with other information such as the
number of errors, warnings and info messages as shown below:
