MOD 30ML Functions

CONFIGURATION EXAMPLES

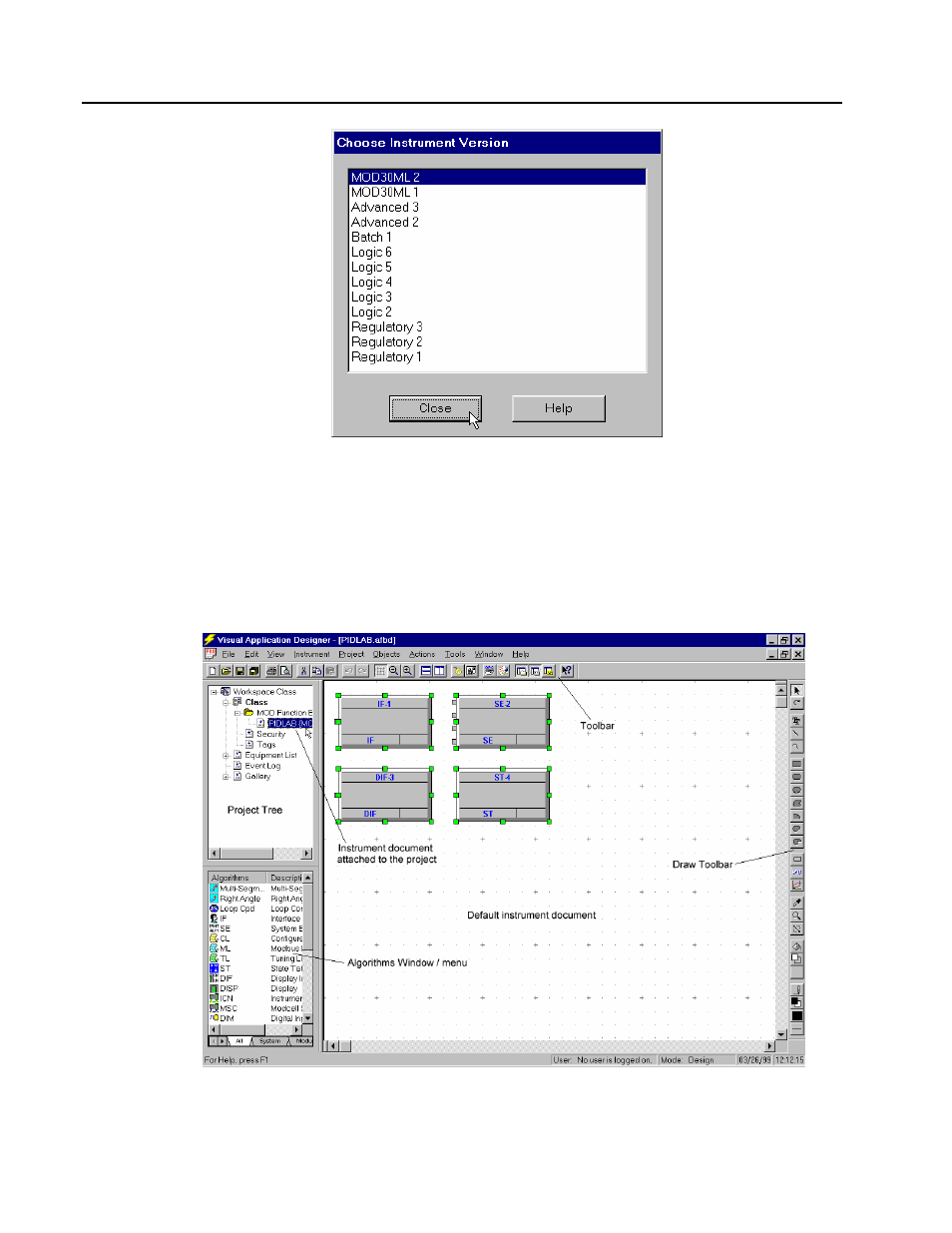

Figure 3. 8. Instrument Versions

• Select MOD 30ML 2 from this list as our instrument version by clicking on it and then click on

the Close button.

• The Configurator will redisplay as shown below. The instrument database will be opened on

the right frame and the default blocks (IF, SE, ST and DIF) for the MOD 30ML database will
be loaded.

• Notice that the newly created document PIDLAB is shown in the project tree attached to the

Project Class.

Figure 3. 9. Default instrument database

3-6
