MOD 30ML Functions

CONFIGURATION EXAMPLES

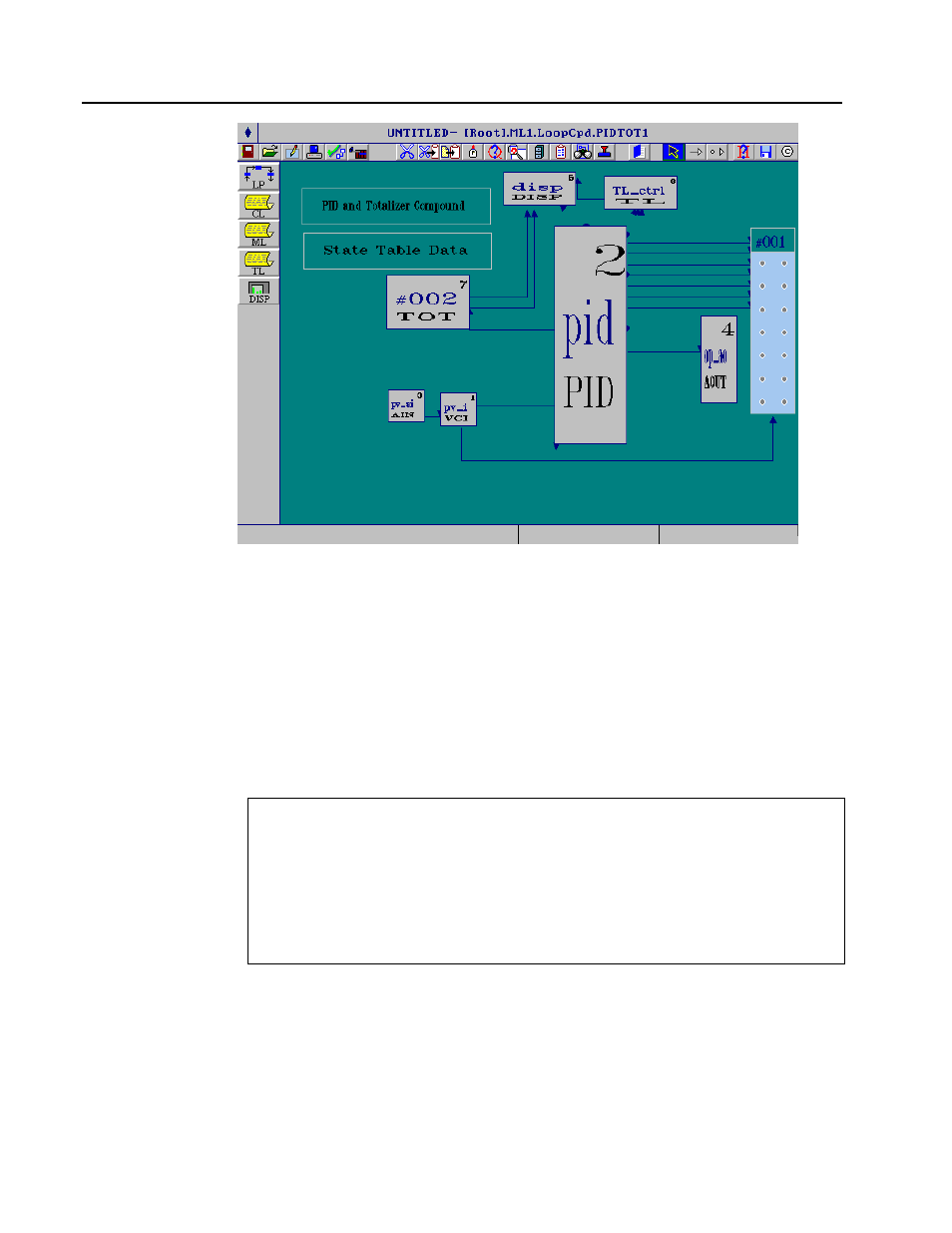

Figure 3. 36. Totalizer 1 Compound

Totalizer Block Connections

PID.PVI

------->

Totalizer.ANALINsP (input for totalizing)

Totalizer.CMD ----------> DISP.I10

(permits display access to the run, hold,
stop and reset commands of the totalizer)

Totalizer.TC

----------> DISP.I4

(totalized value to be displayed)


State Table Data

ACTIOND, 8, “????????”
{
0, “EXIT”;
}

ACTIONE, 8, “????????”
{
5,

“EXIT”;

1,

“RESET”;

2,

“STOP”;

3,

“RUN”;

4,

“HOLD”;

}

3-34
