MOD 30ML Functions

DISPLAY BLOCK

Display Block Formats
Use this display page to configure up to 512 format types for a display block. Multiple inputs
can be assigned the same format.

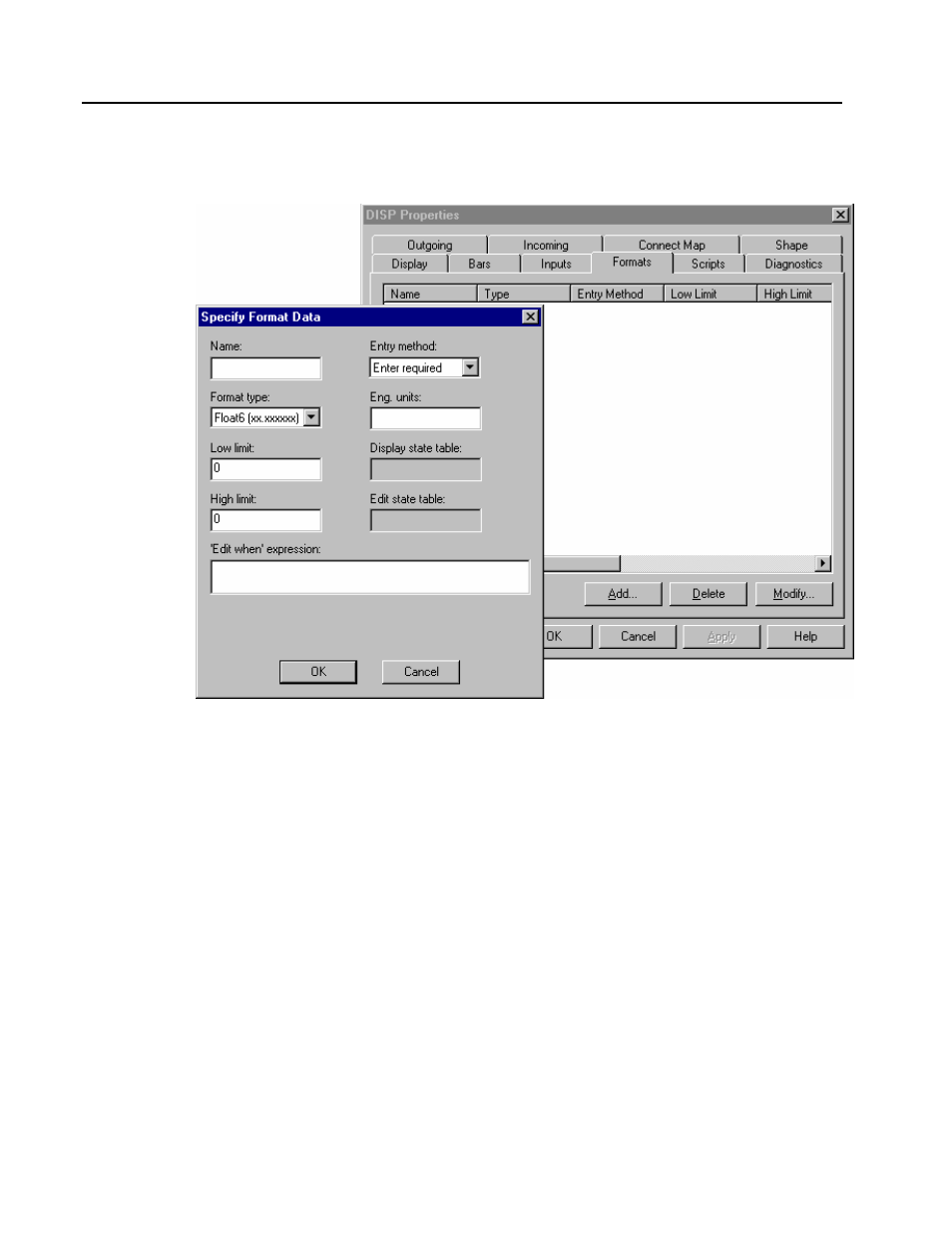

Figure 2-6. Display Block Display Formats, Edit Display, page 1

Select Add or Modify to edit formats and Delete to remove a format.

Move Up, Move Down
Select the item to be moved up or down and then select the Move Up or Down button to
move the item.

Duplicate
Select the item to be duplicated and then select the Duplicate button to make a copy (default
name is assigned).

Name:
(F1 ... F512), or 8 characters that start with a letter and contain only letters, digits, and
underscores. This becomes the unique name of the format for reference in this block.

2-12
