MOD 30ML Functions

DISPLAY INTERFACE BLOCK

2.3.3

Display Interface Block Configuration Screens

The displays used to configure the display block are described below.

Display Interface Block Page 1
Use this page to identify the display interface block, access.the display list, and identify the
power up display.

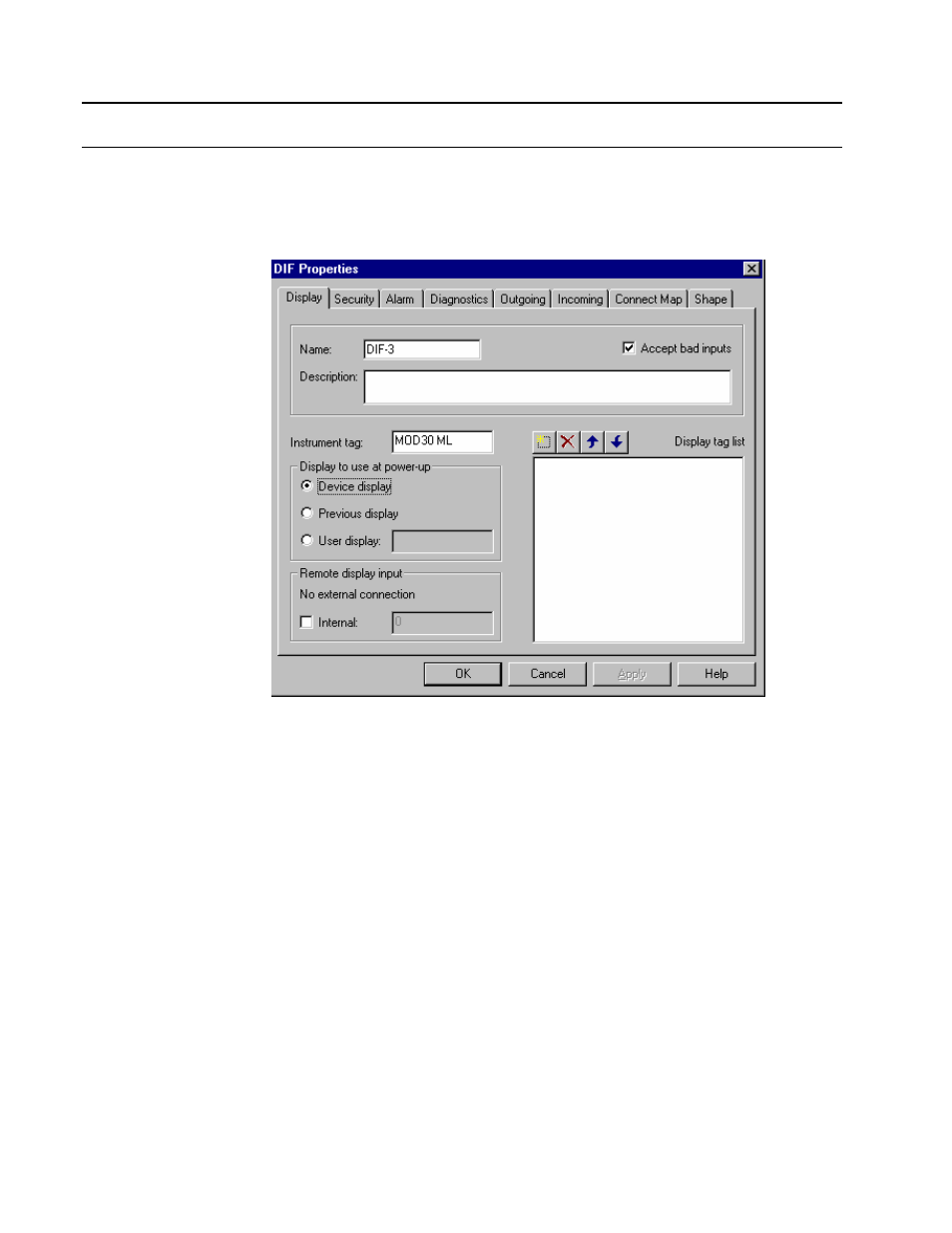

Figure 2-9. Display Interface Block (DIF), Edit Display, page 1


Name
Up to 8 alphanumeric characters identifying block.

Description
Any notes used to describe the block.

Accept bad inputs (See attribute 3 description.)
f checked, Block runs without a check on input quality. If not checked, the Run Complete
input is treated as FALSE when the input quality is BAD.

Instrument tag (See attribute 13 description.)
DEVICE, or up to 8 ascii characters identifying the instrument.

Display to use at power up (See attribute 14 description.)
Device, Previous, User. User requires a display name entry.

2-32
