Dc distribution fuses, Igure, C distribution fuse assignment – MaxPower Corp Gamatronic Power+ RM100 User Manual
Page 52
Gamatronic Electronic Industries Ltd.
36
POWER+ RM100,
3
X
208
V, User Guide, Release 2.7ys
DC DISTRIBUTION FUSES
Verify that the appropriate dc fuses are present.
All dc fuses are located on the opposite side (the front side) of the dc distribution panel. There are
two fuses for each power module and for the controller – one for the positive line and one for the
negative line. Figure 31 shows the fuse assignments for the 100 kVA model.

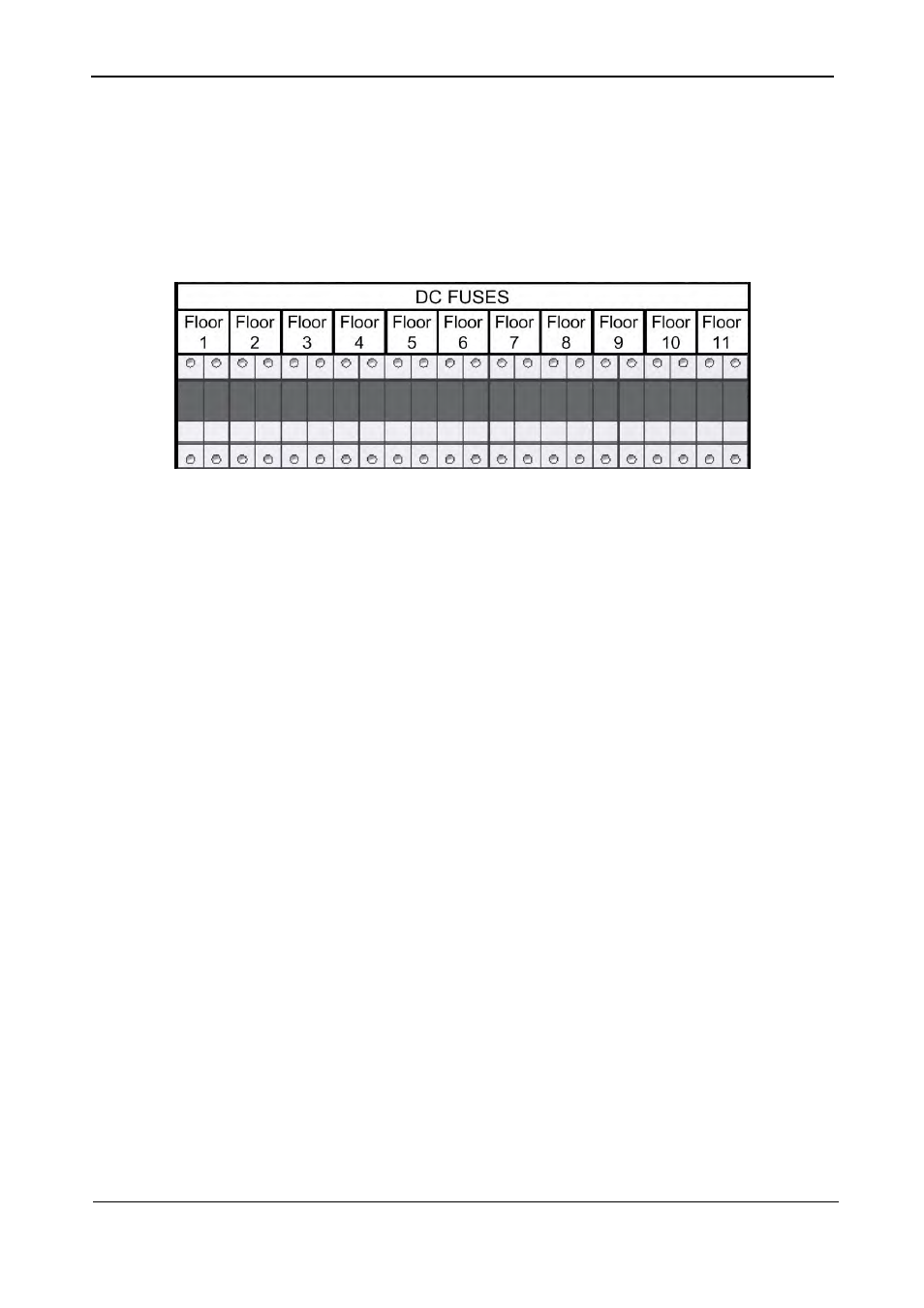

Figure 31: Dc distribution fuse assignment (100 kVA)
