Igure, Rm100, Rear view – MaxPower Corp Gamatronic Power+ RM100 User Manual
Page 39
Gamatronic Electronic Industries Ltd.
POWER+ RM100,
3
X
208
V, User Guide, Release 2.7ys
23
I
TEM
D
ESCRIPTION
1
Ac input terminals.
From top to bottom:
Rectifier ac input L1
Bypass ac input L1
Rectifier ac input L2
Bypass ac input L2
Rectifier ac input L3
Bypass ac input L3
Neutral
2
Ac output terminals.
From top to bottom: L1, L2, L3, N.
3
Terminals for external battery.
From top to bottom:
plus (+), minus (-), plus (+), minus (-).
4
Dc fuses for modules.
5
Ac fuses for modules.
6
Special connections (see section 5.6).
7
Rectifier ac input CB.
8
Bypass ac input CB
9
Ac output CB
10
Maintenance bypass CB

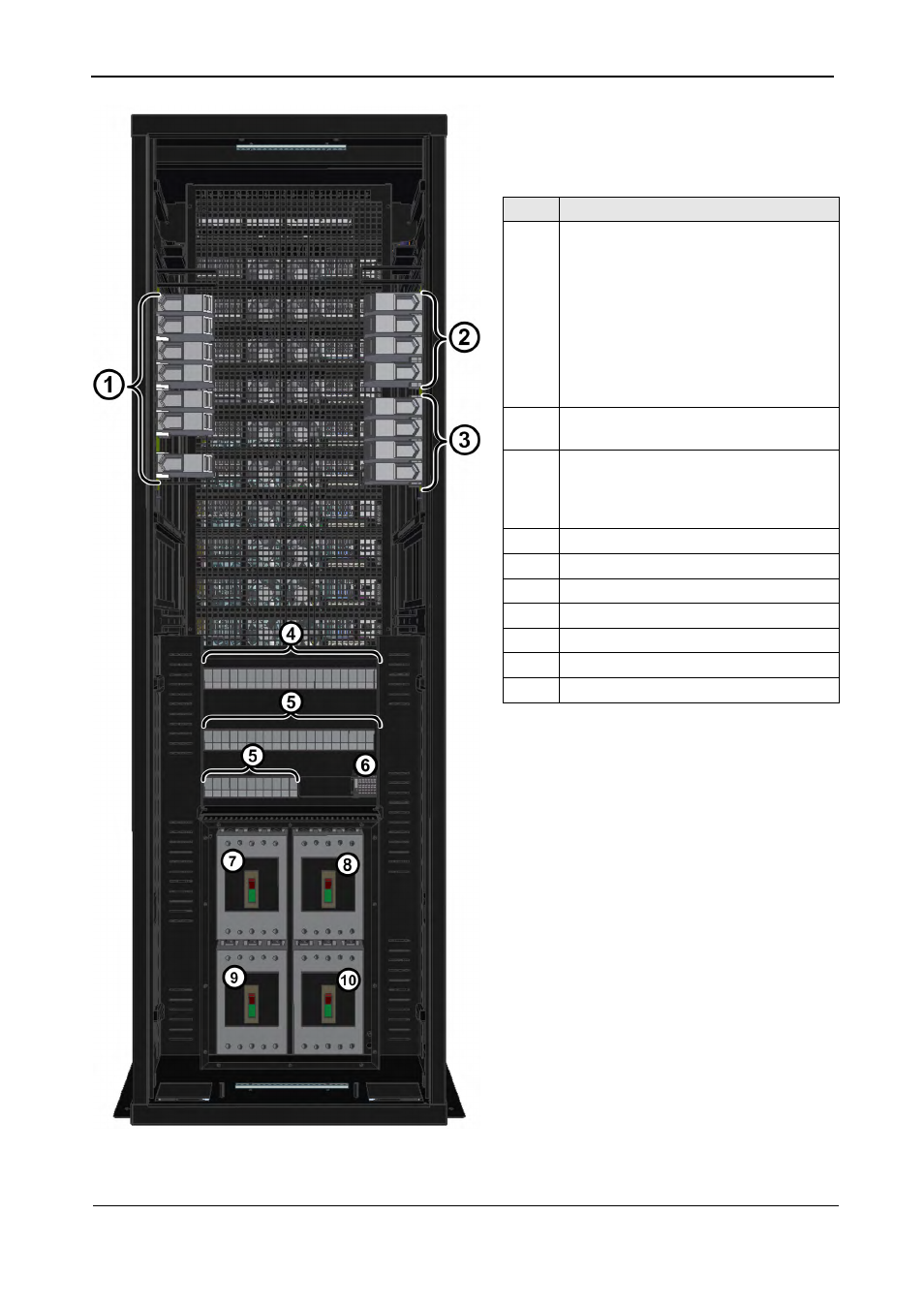

Figure 19: RM100 3x208 V, rear view
