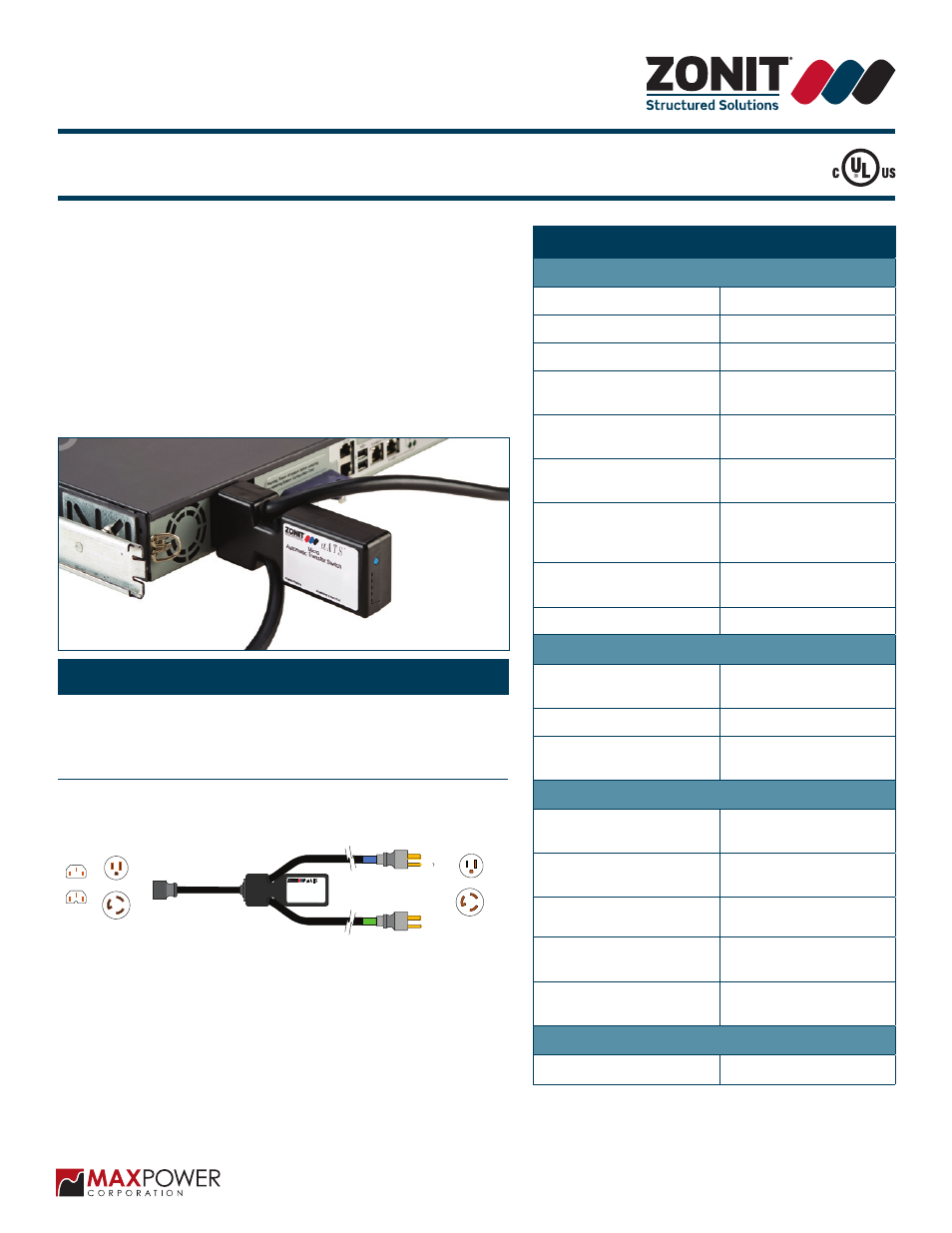

µATS – LV
The
Zonit Micro Automatic Transfer Switch
(μATS™) is the
world’s smallest ATS and solves the problem of supplying
A+B redundant power to single power supply devices. The
μATS™ draws power from A and monitors power quality.
The μATS™ will automatically switch to secondary B power
when A fails or becomes degraded in quality. The μATS™
will switch back to A when it returns and is of sufficient
quality. The μATS™ will transfer regardless of phase angle
between A and B.
DETAILS
SPECIFICATIONS
ELECTRICAL
Rated Input Voltage
120V
Rated Maximum Amperage
12A
Rated Input Frequency
50/60 Hz
Standard Input Cords
Pair of 2-foot 16/3AWG
with NEMA 5-15P plugs
Standard Output
Single IEC C13
receptacle
Single Corded Output
IEC C13 receptacle
on 9" cord
Internal Overload
Protection
Virtual Circuit Breaker
set at rated amperage
with reset switch
Transfer Time
A-B: 12-14ms
B-A: 6-8ms
Max. Power Consumption
125 mA
PHYSICAL
Dimensions (L x W x D)
0.75 x 1.60 x 4.25 in
(19 x 40.9 x 108 mm)
Weight
0.9 lb (3.9kg)
Shipping Weight
Qty 1: 1.1 lb (0.5 kg)
Qty 25: 24.5 lb (11.1 kg)
ENVIRONMENTAL
Elevation – Operating
0 to 10,000 ft
(0 to 3000m)
Elevation – Storage
0 to 50,000 ft
(0 to 15000m)
Temperature – Operating
23 to 113°F (-5 to 45°C)
Temperature – Storage
-13 to 149°F
(-25 to 65°C)
Operating Humidity
0 to 95%
Non-condensing
APPROVALS
Safety Verification
UL/cUL File E340237
• Model
: μATS1-LV-515
• Warranty
: 3 years
• Made in USA
A TS
Patented and Patents Pending
Assembled in the U.S.A.
TM
BB
AA
Automatic Transfer Switch
Micro
R
Structu re d So lution s
5-15R
L5-15R
C-13
C-15
5-15P
L5-15P
Input Plugs
Output Receptacles
Available Connectors and Corded Outputs
Available Connectors and Corded Outputs
