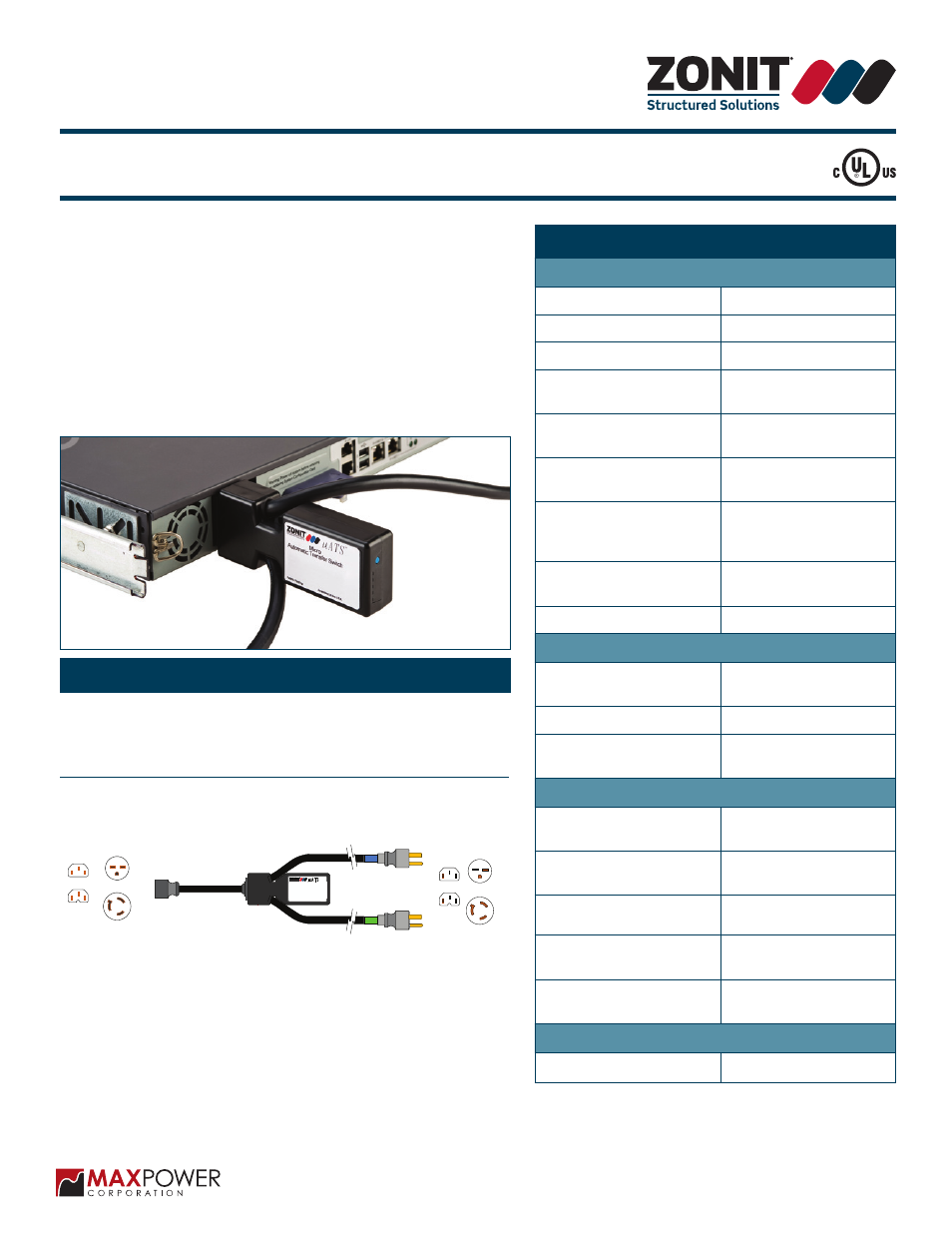

µATS – HV

The

Zonit Micro Automatic Transfer Switch

(μATS™) is the

world’s smallest ATS and solves the problem of supplying
A+B redundant power to single power supply devices. The
μATS™ draws power from A and monitors power quality.
The μATS™ will automatically switch to secondary B power
when A fails or becomes degraded in quality. The μATS™
will switch back to A when it returns and is of sufficient
quality. The μATS™ will transfer regardless of phase angle
between A and B.

DETAILS

SPECIFICATIONS

ELECTRICAL

Rated Input Voltage

208 - 240V

Rated Maximum Amperage

Rated Input Frequency

50/60 Hz

Standard Input Cords

Pair of 2-foot 18/3AWG

with IEC C14 plugs

Standard Output

Single IEC C13

receptacle

Single Corded Output

IEC C13 receptacle

on 9" cord

Internal Overload

Protection

Virtual Circuit Breaker

set at rated amperage

with reset switch

Transfer Time

A-B: 9-11ms

B-A: 9-11ms

Max. Power Consumption

125 mA

PHYSICAL

Dimensions (L x W x D)

0.75 x 1.60 x 4.25 in

(19 x 40.9 x 108 mm)

Weight

0.9 lb (3.9kg)

Shipping Weight

Qty 1: 1.1 lb (0.5 kg)

Qty 25: 24.5 lb (11.1 kg)

ENVIRONMENTAL

Elevation – Operating

0 to 10,000 ft

(0 to 3000m)

Elevation – Storage

0 to 50,000 ft

(0 to 15000m)

Temperature – Operating

23 to 113°F (-5 to 45°C)

Temperature – Storage

-13 to 149°F

(-25 to 65°C)

Operating Humidity

0 to 95%

Non-condensing

APPROVALS

Safety Verification

UL/cUL File E340237

• Model

: μATS1-HV-C14

• Warranty

: 3 years

• Made in USA

A T S

Patented and Patents Pending

Assembled in the U.S.A.

Automatic Transfer Switch

Micro

Structur ed S olutions

C-13

C-15

Input Plugs

Output Receptacles

Available Connectors and Corded Outputs

C-14

C-16

6-15P

L6-15P

6-15R

L6-15R

Available Connectors and Corded Outputs
