“Static Switch” option

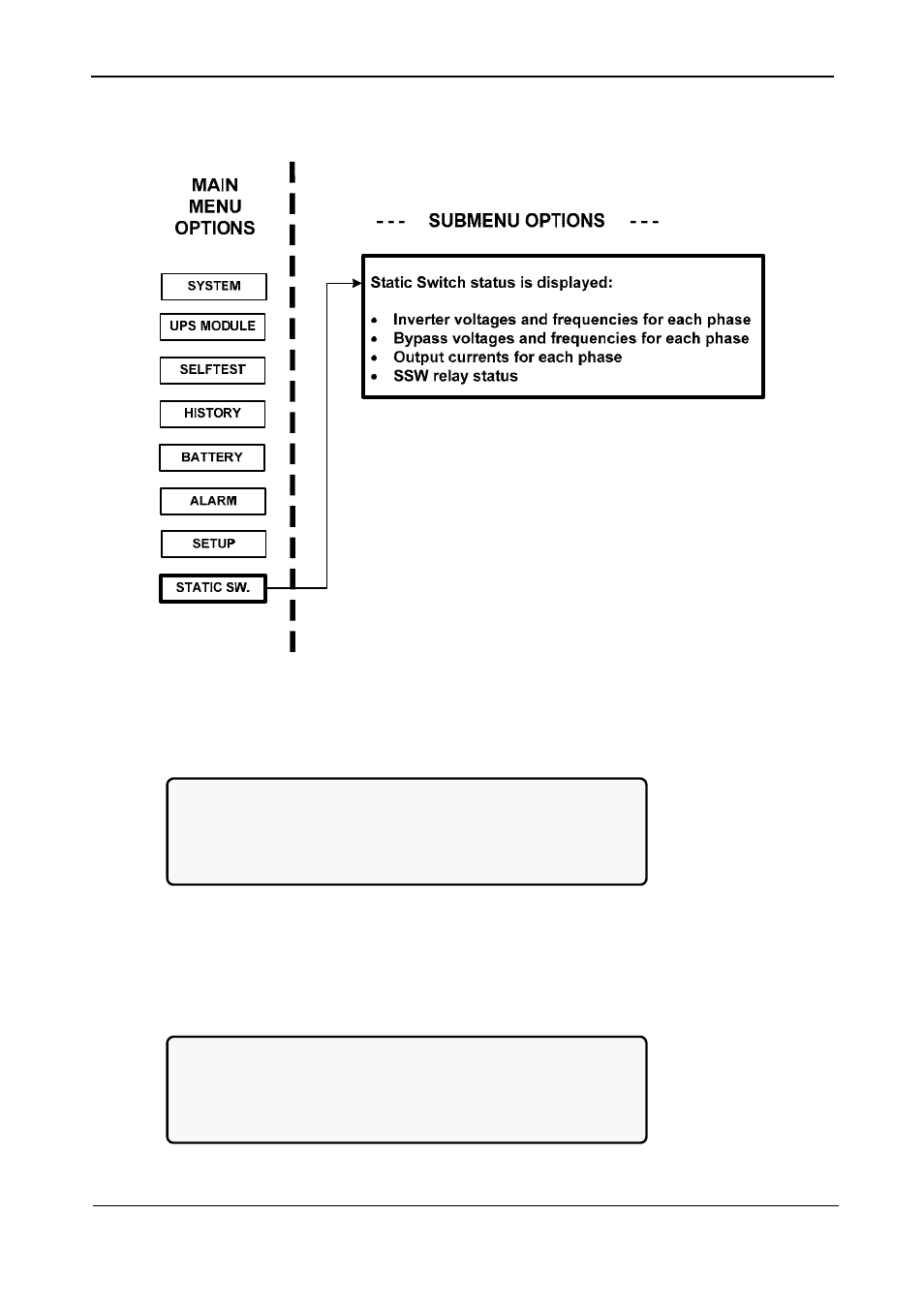

Figure 275: Static switch option
1.
View the static switch voltage and frequency:
[Main Menu > STATIC SW]
SSW VOLTAGE FREQ
INVERTER: L1-120V,L2-120V,L3-120V 60 Hz
BYPASS: L1-120V,L2-120V,L3-120V 60 Hz
IOUT: 050 050 050
Figure 276: Static switch voltage and frequency
2. Press
►to view the current messaging status:
[Main Menu > STATIC SW >
►
]
M<-----B3---->L M<--------B4-------->L
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
SSW STATUS
Figure 277: Static switch messaging status
