E-28-
POSITIONER 1067
ACTUATE (factory setting: SINGLE, INTERN): Method of operation of the valve actuator used.
Options:
SINGLE,
INTERN: Use of a single acting actuator with intern or without boost valves,
SINGLE, BOOST: Use of a single acting actuator with boost valves,
DOUBLE: Use of a double acting actuator
4 OPERATION
CHARACT (factory setting: LINEAR):
Customer-specific characteristic.
This additional function enables a transmission
characteristic curve with regard to the desired
value of the setting (set position) and valve stroke
for correction of the flow or operating curve to be
chosen (Fig 30).

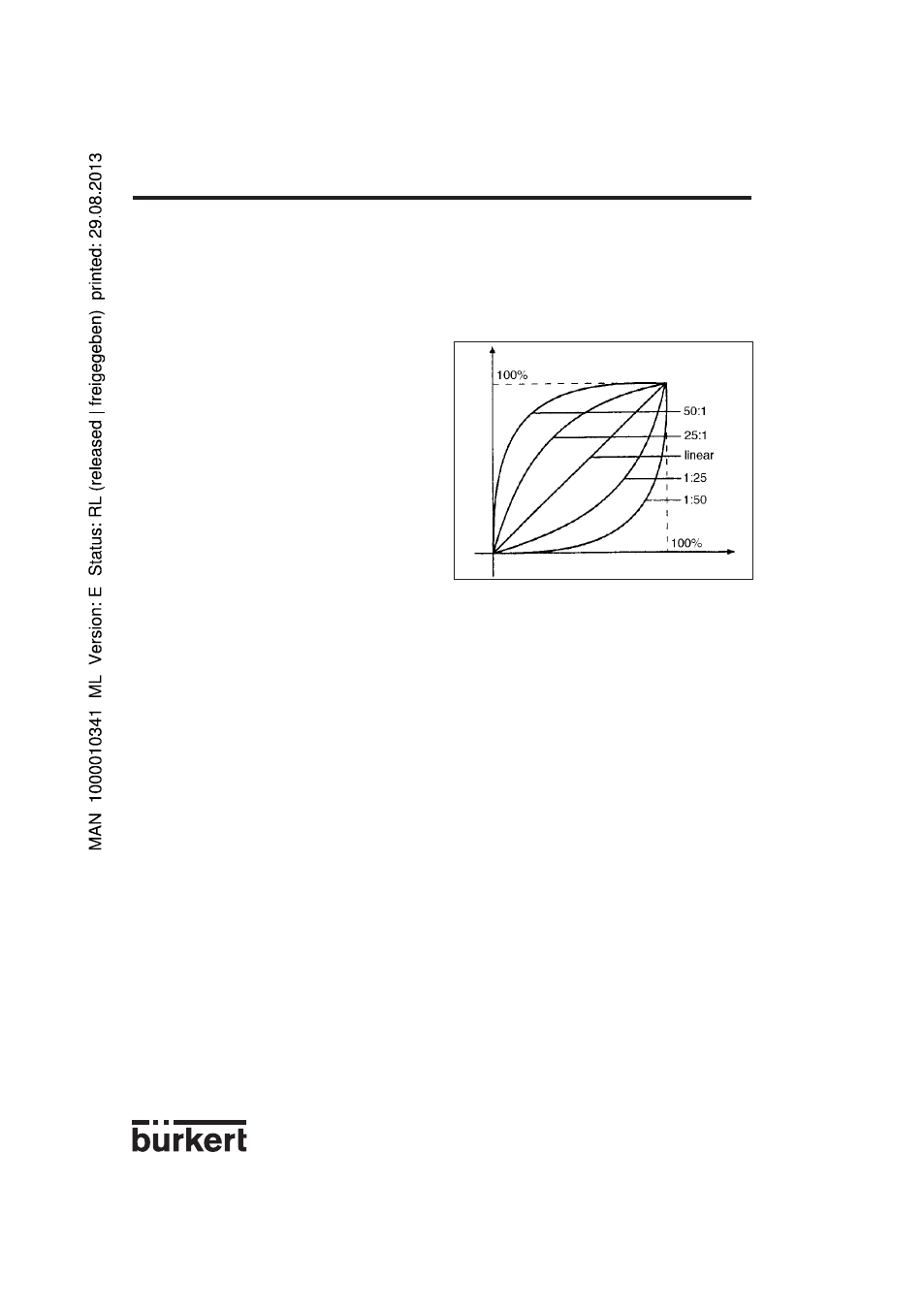

Fig. 30 Corrective characteristic curves
Set position
Plug travel
The flow characteristic k
v
= f
(s)
characterises the flow of a valve and is expressed by the k
v
value relative
to the stroke s of the valve spindle. It is determined by the shape of the valve body. There are normally
two types of flow characteristic curves: linear and equal percentage. In the case of linear characteristic
curves equal changes in stroke ds are assigned to equal k
v
value changes dk
v
(dk
v
= n
lin
ds). In the case
an equal percentage characteristic curve a change in stroke ds corresponds to an equal percentage
change in the k
v
value (dk
v
/k
v
= n
gleichpr
ds).
The operating curve Q = f
(s)
represents the relationship between the rate of flow Q which flows through
a valve fitted in the system and the stroke s. This curve is also affected by the properties of the pipe-
lines, pumps and consumers. It therefore has a form which deviates from the flow characteristic curve.
Specific requirements are usually laid down for the operating characteristic curve (e.g. linearity) in the
case of correcting tasks for closed loop control systems. Therefore it is sometimes necessary for this
reason to correct the pattern of the operating curve in a suitable manner. A transmission element which
implements various characteristic curves which can be used to correct the operating curve is provided
in the positioner for this purpose. One linear and various equal percentage characteristic curves with a
control ratio of 1:25, 1:50, 25:1 and 50:1 can be set (see fig. 30). It is also possible to freely program-
me a characteristic curve via restart points.
Options:
LINEAR
Linear characteristic curve
1:25 Equal percentage characteristic curve with a control ratio of 1:25
1:50 Equal percentage characteristic curve with a control ratio of 1:50
25:1 Inverse equal percentage characteristic curve with a control ratio of 25:1
50:1 Inverse equal percentage characteristic curve with a control ratio of 50:1
FREE Freely-programmable characteristic curve based on temporary restart points
