E-50-
POSITIONER 1067 APPENDIX
- + 24 V I/O4 I/O3 I/O2 I/O1 GND2 I2 I1 U1 GND1
24 VDC PE 4-20 mA
0/4-20 mA
0-10 V
24 V=
- +
8323
1067
3
2
1
4-20 mA
L+
- + 24 V I/O4 I/O3 I/O2 I/O1 GND2 I2 I1 U1 GND1
24 VDC PE 4-20 mA
0/4-20 mA
0-10 V
24 V=
- +
ST25
1067

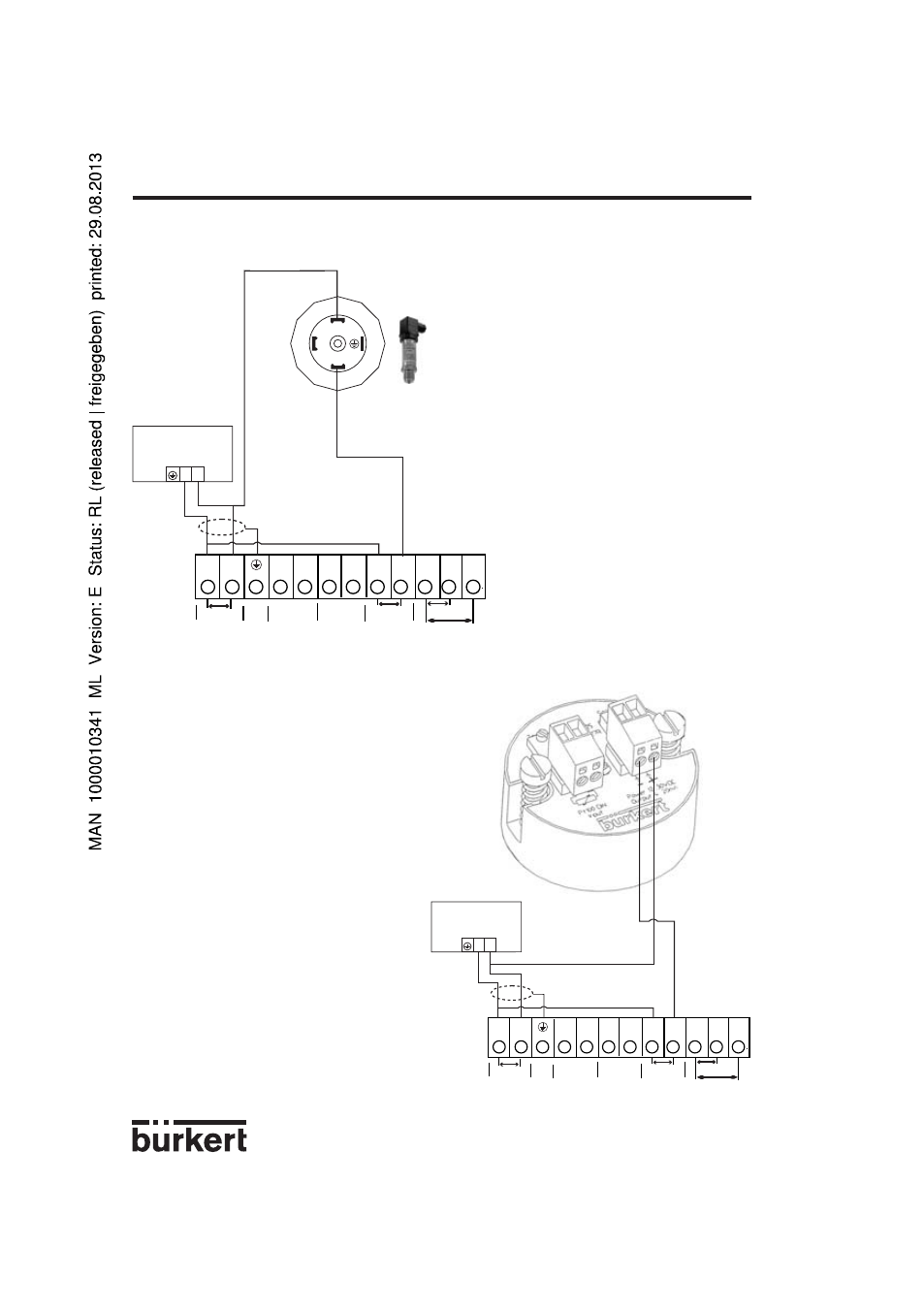

Connection between the positioner
1067 and the pressure sensor 8323.
Connection between the positioner 1067
and the temperature transmitter ST25.
