POSITIONER 1067
Fig. 14 External feedback/positional trans-
ducer
3 INSTALLATION
5
6
To assemble the external feedback/positional transducer, refer to the mounting instructions on pages
E13 and E14:
- carry out steps a) to g) (page E13 and fig. 17)
- insert the positioner cable "
7" through the cable gland "5" of the feedback/positional transducer
(see fig. 13 and 14)
- carry out steps l) to m) (page E14 and fig. 17).

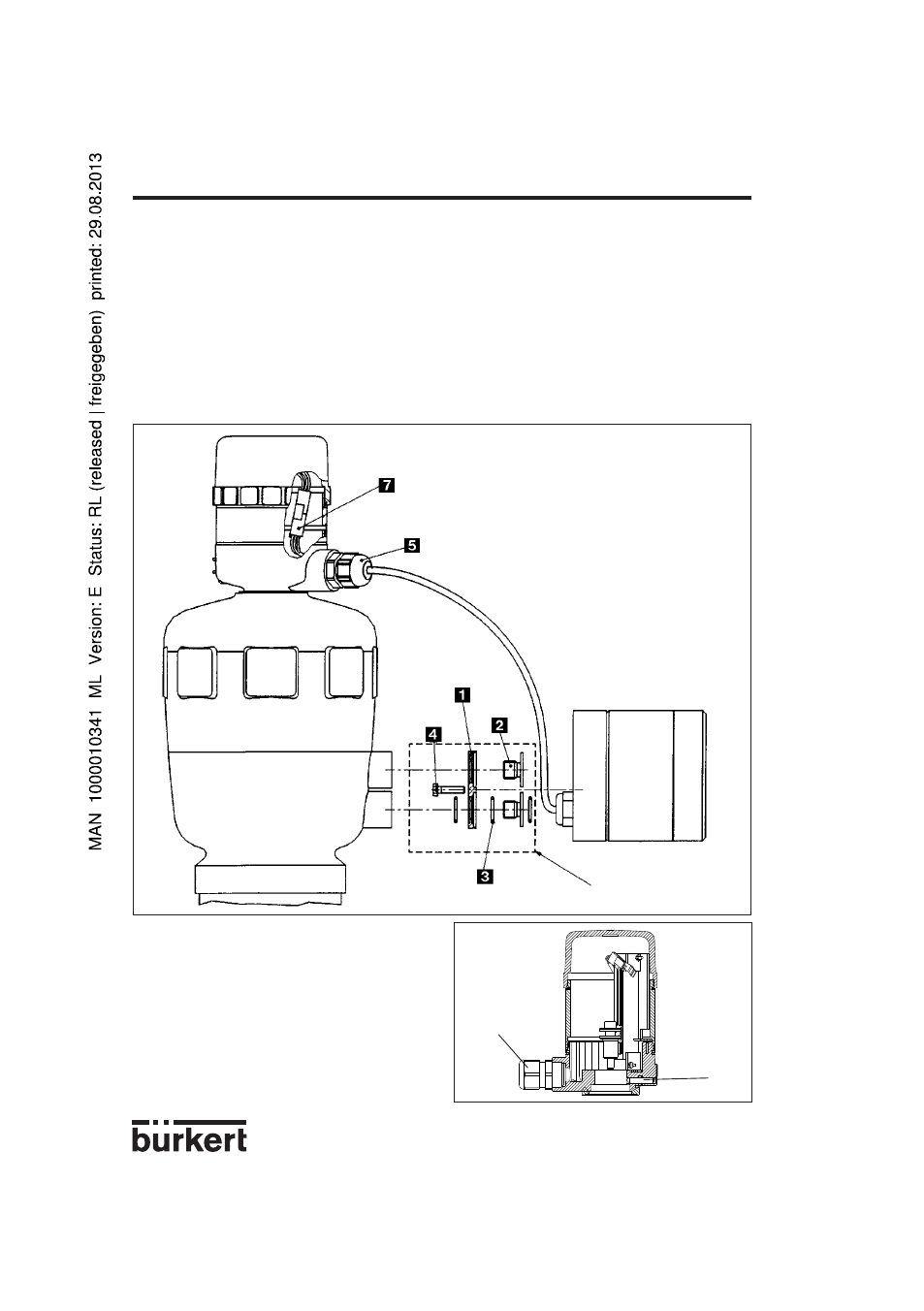

Fig. 13 Diagram for the assembly of positioner variant 2 and external feedback/positional
transducer on a continuous valve with piston drive (conforming to NAMUR)
Set of add-on parts for
Bürkert piston drive (ш125)
