FunctionsoftheConfigurationLevel
12.15.3. 2_P - configuration of the binary output as 2-state
controller
In the discontinuous 2-state control, an open/closed valve is opened or closed depending on two limit values, for
example.
Setting in the menu:
NO
PULS
2_P
SP
LIMT
B_O2
B_O1
* ) The display depends
on the control variable
selected in the
MODE
menu (see chapter 12.3)
REL
ABS FLOW * )
PRES * )
TEMP * )
LEVL * )
VAL * )
0002
HYLO
0001
HYHI
0002
PVLO
0002
PVHI
HIGH
LOW
00.0
DLY
NO
INV
YES
INV
000.0
SPLO
000.0
SPHI
For selection for binary output as limit switch
see „12.15.2. LIMT - Configuration of the binary output as limit switch“
For selection for binary output as pulse output
see „12.15.1. PULS - Configuration of the binary output as pulse output“

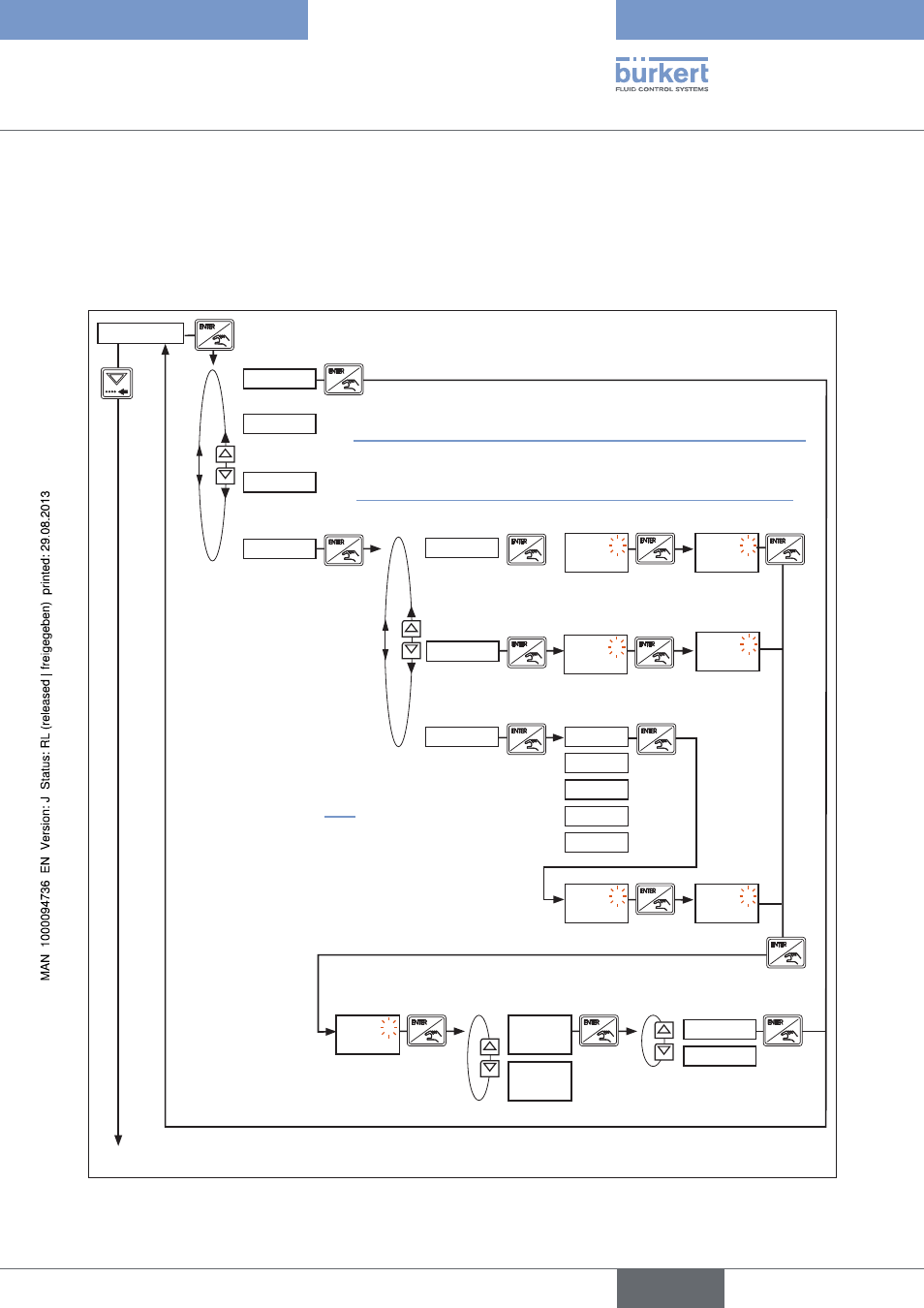

Figure 65: B_O1; Configuration of the binary output as 2-state control (2_P)
