20
ElectricalInstallation
8. elecTrical insTallaTiOn
8.1. electrical installation for fitting assembly, wall
assembly, valve assembly or rail assembly models
8.1.1. connection versions

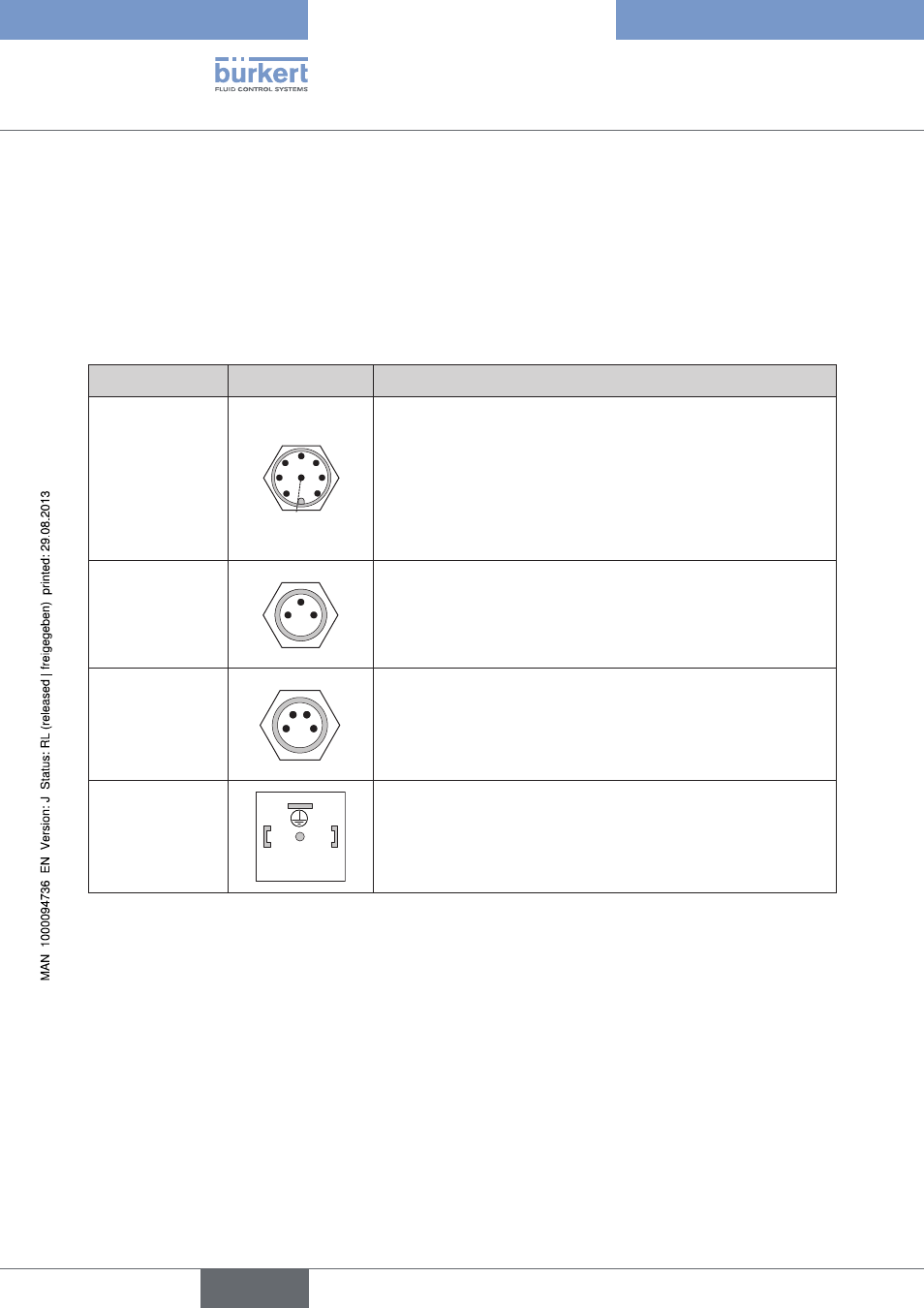

connector connector view configuration
Circular plug-in
connector
M12, 8-pole
5
4
3
2 1
8
7
6
Power supply voltage,
set-point input 4 - 20 mA / 0 - 10 V,
process actual value or position set-point output 4 - 20 mA / 0 - 10 V,
binary input,
binary output
note!
A straight plug (female) is recommended for the connecting cable,
as the alignment of the plug can vary.
Circular plug-in
connector
M8, 3-pole
4
3 1
Connection sensor
(4 - 20 mA / 0 - 10 V, Pt 100 or frequency)
and sensor supply 24 V DC
Circular plug-in
connector
M8, 4-pole
2
1
4
3
Connection actuating element
• Proportional valve (1 x PWM)
• Process valve (1 x PTM)
• Manipulated variable 4 - 20 mA / 0 - 10 V and
sensor supply 24 V DC (only ID 182383)
DIN-EN 175301
1 2
Connection for direct assembly on proportional valve (1 x PWM) or
open/closed valve (1 x PTM)
Table 4: Connection versions for assembly on flow-rate fitting, wall assembly, rail assembly or valve assembly
