OperationandFunction
9. OperaTiOn and funcTiOn
9.1. control and display elements
The control and display element of the eCONTROL Type 8611 is equipped with 3 buttons and an LCD-Matrix
display.
9.1.1. display elements
4-character display
7-character matrix for numerical values
4-character display
14-character matrix for measuring units and parameter
designations
10-segment bar graph for display of the manipulated
variable in % (One Segment indicates 10 % of
manipulated variable)
Red LED is lit in case of an alarm
Indicates the operating state MANUAL
Is displayed when the control is activated
Is displayed for external set-point value default

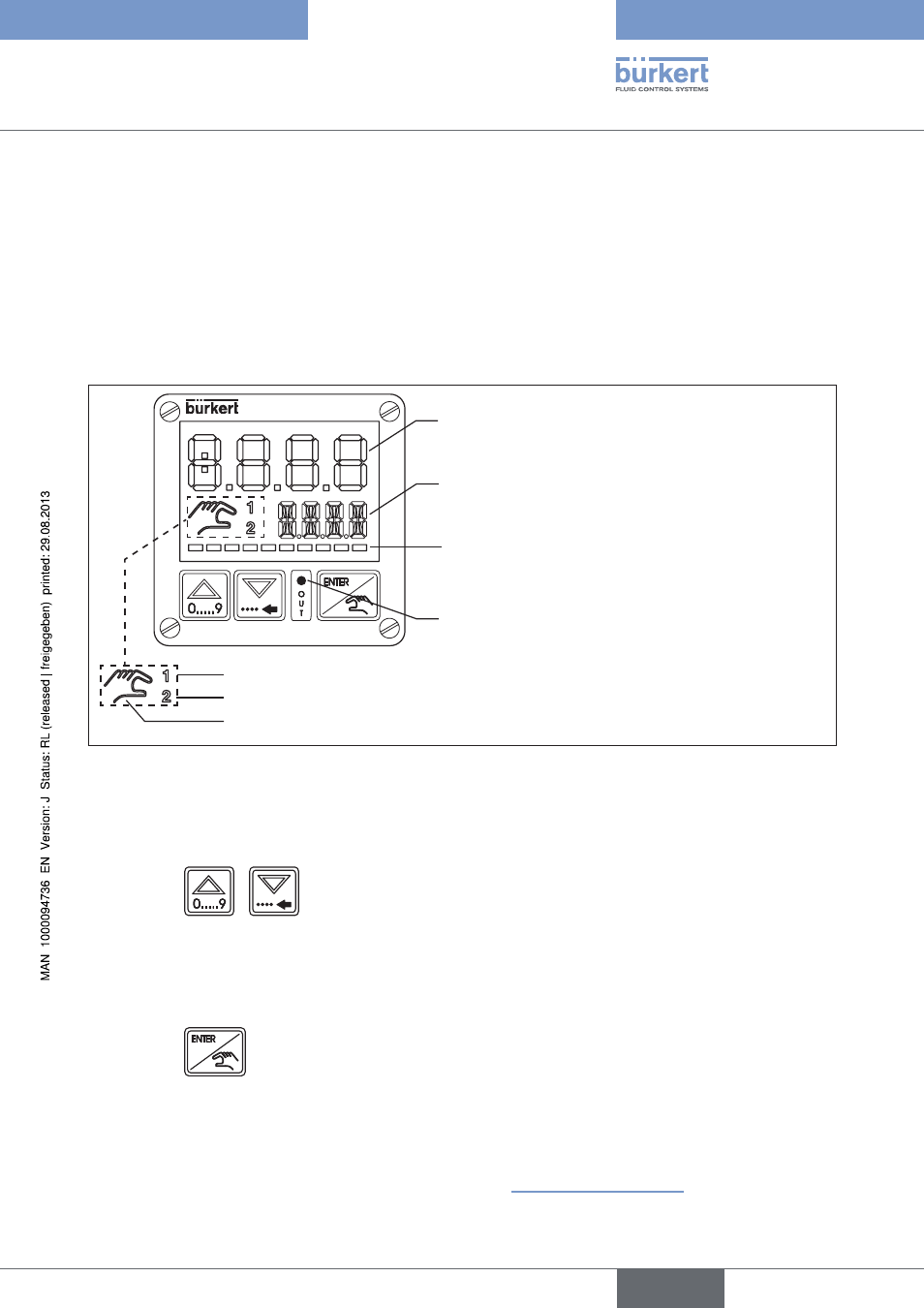

Figure 10: Display elements
9.1.2. control elements
arrow keys • Change the display at the process operating level in AUTOMATIC operating
state
• Change the menu options in MANUAL operating state and at the
configuration level
• Entering of numerical values
left right
enter
button • Switches between the operating states AUTOMATIC and MANUAL
• Switches between operating and configuration level
• Selection of menu option
• Take over settings
The detailed description of the function can be found in chapter “9.3. Function of the keys”.
