13
TechnicalData
6.4. rating plate description

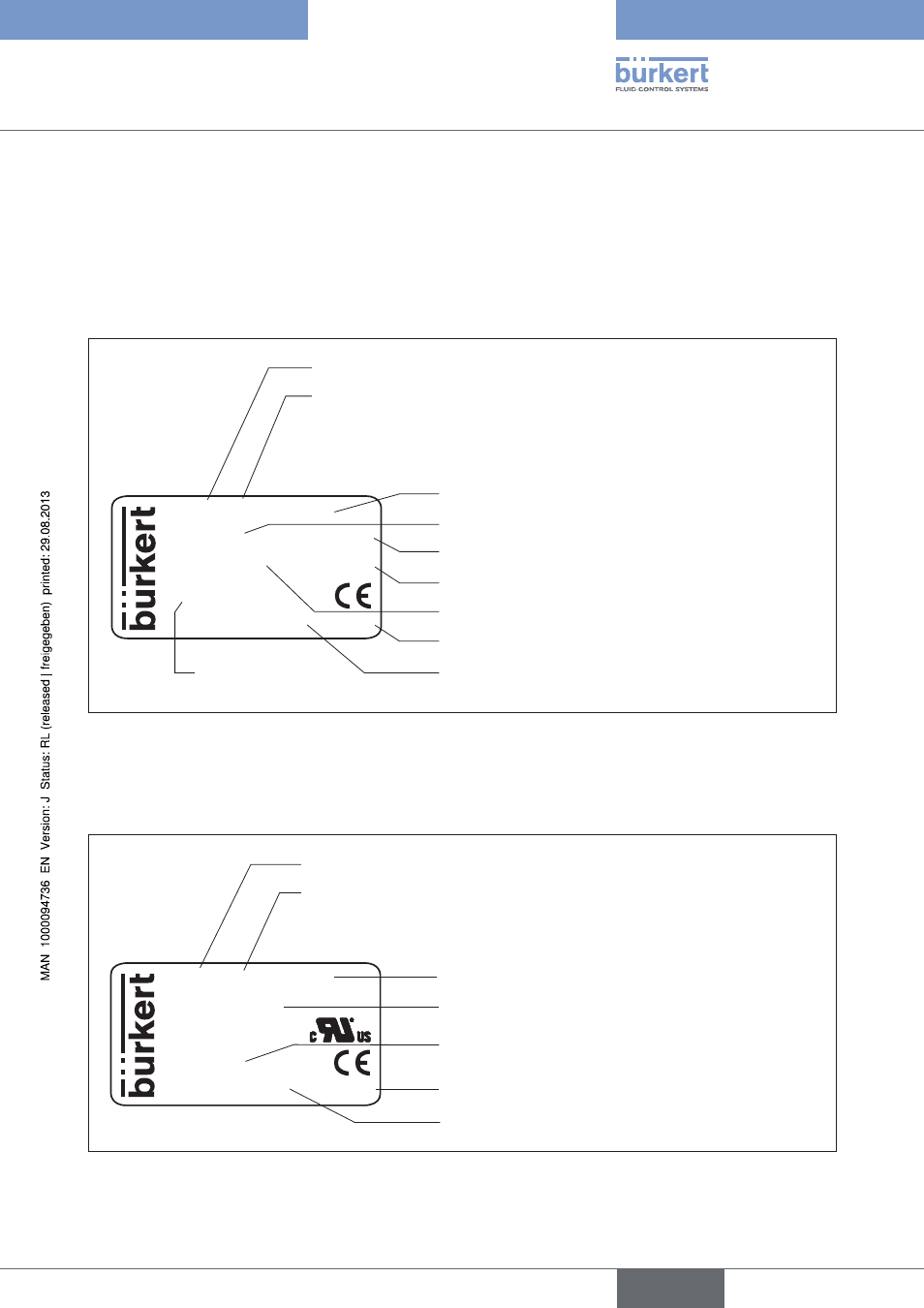

The rating plate contains important technical data for the specific device. The structure of the rating plate is
described below by way of example.
6.4.1. rating plate of the controllers for wall, rail, valve or fitting
assembly
8611 Wall 24VDC
00177462
W16LU
SET: Norm ACT: PWM
IN:Norm OUT:Norm
S/N xxxxxx
Sensor input signal (Norm, Pt 100 or Freq (NPN))
Analog output (Norm or None)
Controller output signal (PWM or NORM)
Set-point value input signal
Manufacturer's code
Order part number Serial number
Power supply voltage
Assembly model
- Wall (wall assembly)
- Rail (rail assembly)
- Valve (assembly directly on valve)
- Fitting (assembly directly on flow-rate fitting)
Controller type
Example:
Figure 3: Example: Rating plate of the controllers for wall, rail, valve or fitting assembly
6.4.2. rating plate of the control cabinet model
8611 Panel 24VDC
00210206
W16LU
Prozessregler
S/N xxxxxx
Assembly model
- Panel (control cabinet)
Controller type
Power supply voltage
Controller design
Serial number
Manufacturer's code
Order part number
Example:
Figure 4: Example: Rating plate of the control cabinet model
english
Type 8611
