FunctionsoftheConfigurationLevel
12.7.
AOUT - scaling of analog output
(4 - 20 ma or 0 - 10 V)
The analog output is selected and scaled in this menu.
The
AOUT menu is not displayed if, in the MODE menu, 4 - 20 or 0 - 10 was selected as actuating
Setting in the menu:
0000
4 mA
**
)
0000
0 V
**
)
Selection of standard signal
Selection of output variable
4 – 20
FLOW *
)
0 – 10
TEMP *
)
PRES *
)
LEVL *
)
VAL *
)
POS *
)
Q1 *
)
Q2 *
)
RFAC *
)
CALI
AOUT
Scaling
*
)
The display depends
on the control variable
set in the
MODE
menu
*
)
The display depends
on the selected output
variable
50.00
20 mA
**
)
50.00
10 V
**
)

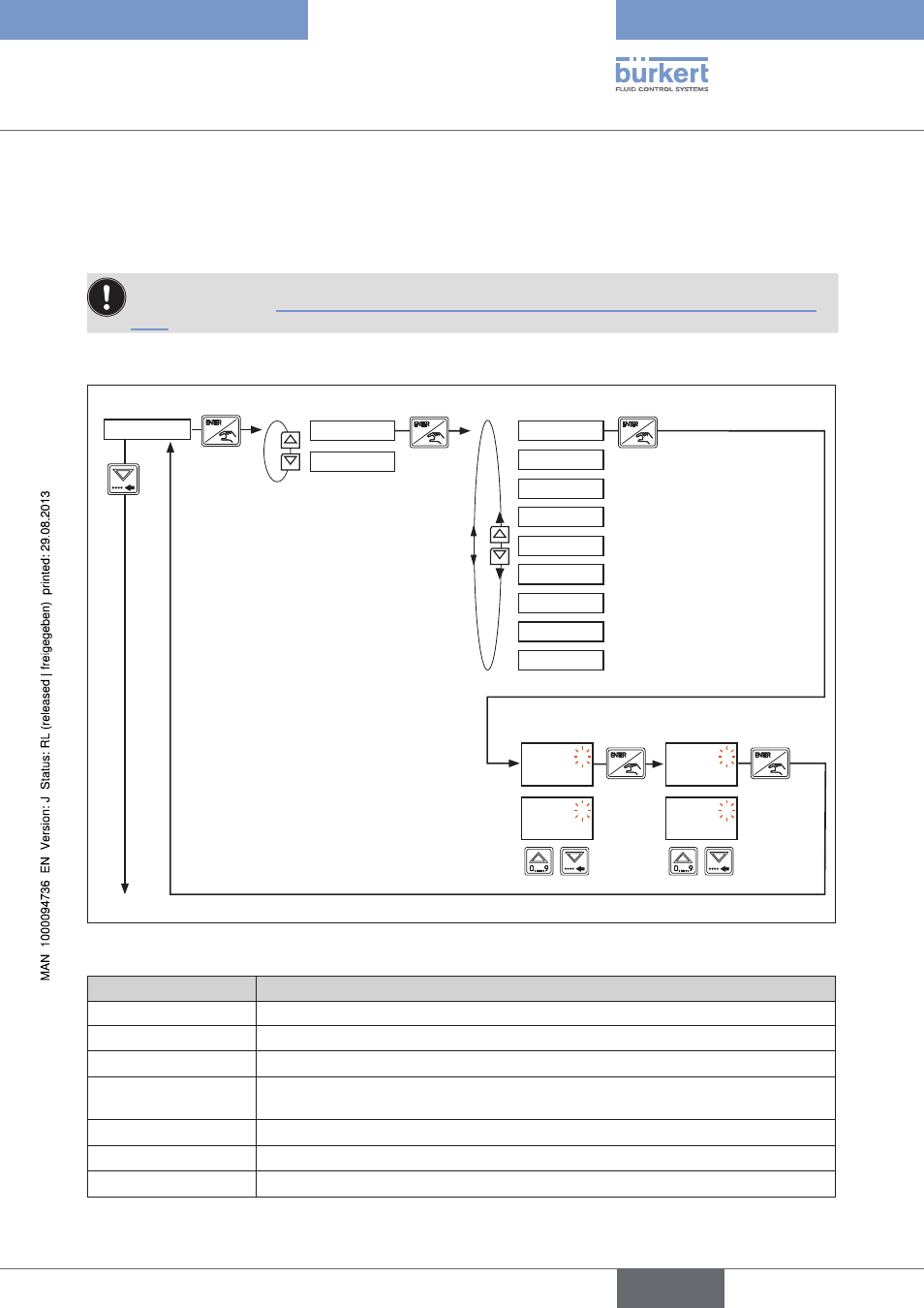

Figure 50:
AOUT; Scaling of the analog output
display
description
4 - 20
Selection of 4 - 20 mA standard signal output
0 - 10
Selection of 0 - 10 V standard signal output
FLOW
Output of flow-rate as standard signal (only for control variable
MODE = F, T + F, T - F)
TEMP
Output of temperature as standard signal (only for control variable
MODE = T, T + F,
T - F)
PRES
Output of pressure as standard signal (only for control variable
MODE = P)
LEVL
Output of filling level (only for control variable
MODE = L)
VAL
Output of process value (only for control variable
MODE = X or T and UNIT = NU)
