63
FunctionsoftheConfigurationLevel
display SETP description
INT Internal set-point value default.
Is entered in the operating state MANUAL in the
SET menu using the keyboard.
See chapter “11.5. SET - Set-point value default for process control”
EXT External process set-point value default using standard signal (4 - 20 mA or 0 - 10 V).
4 mA / 20 mA Scaling of 4 - 20 mA standard signal (for definition of decimal places see UNIT menu).
0 V / 10 V Scaling of 0 - 10 V standard signal (for definition of decimal places see UNIT menu).
Table 20: Display SETP
Setting in the menu for ratio control ( RFAC):
S_IN
AOUT
RFAC
0000
4 mA * )
9.999
20 mA * )
0000
0 V * )
9.999
10 V * )
INT
EXT
Selection of standard signal
4 – 20
0 – 10
Scaling
Selection of
set-point value default
* ) The display depends on the selection
of the standard signal

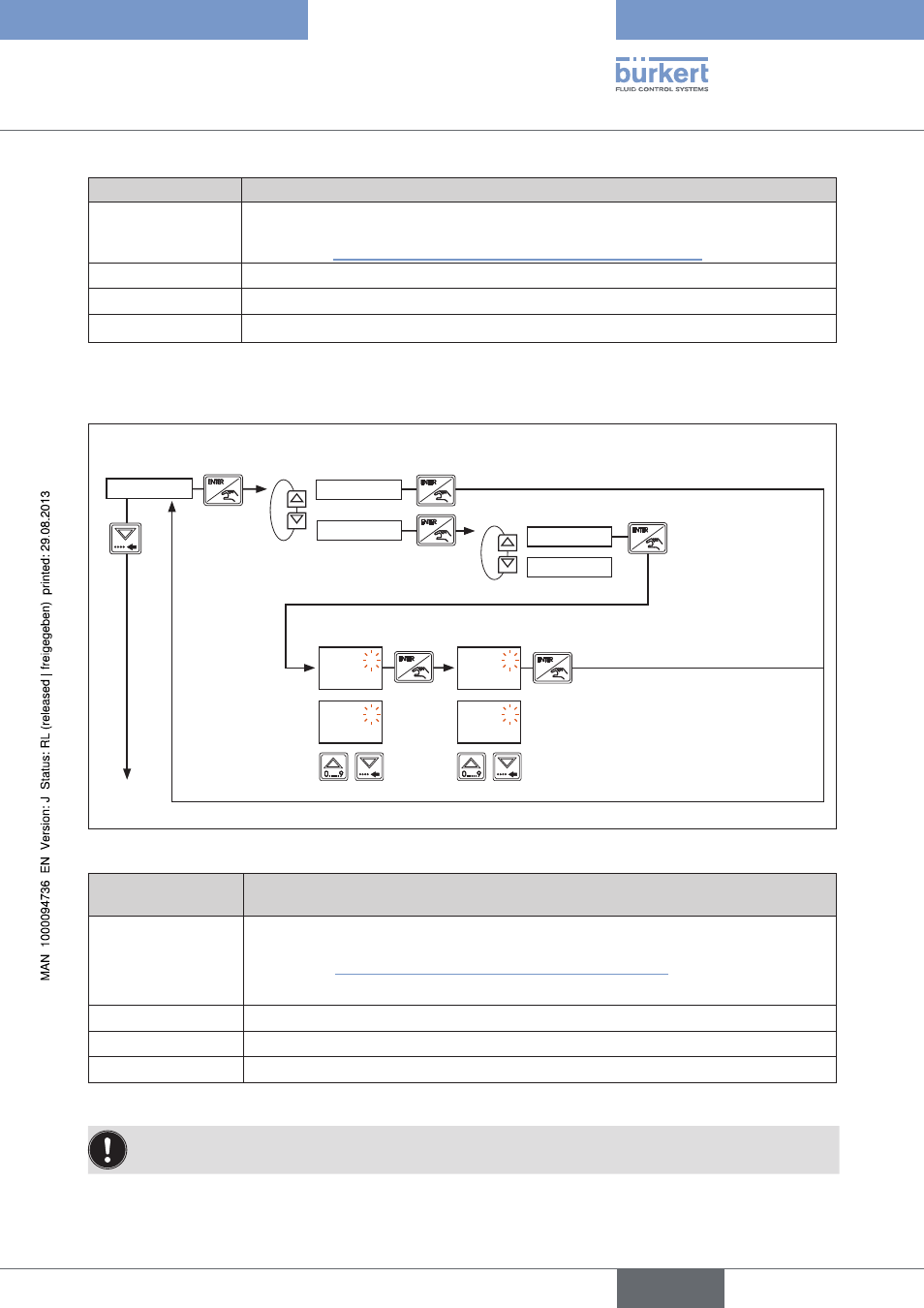

Figure 48: RFAC; Setting the ratio factor
display
RFAC description
INT Internal ratio factor default.
Is entered in the operating state MANUAL in the
RFAC menu using the keyboard.
See chapter “11.6. RFAC - Ratio factor default for ratio control”.
Value range: 0.000 to 9.999
EXT External ratio factor default ( RFAC) using standard signal (4 - 20 mA or 0 - 10 V).
4 mA / 20 mA Scaling of 4 - 20 mA standard signal (value range: 0.000 - 9.999).
0 V / 10 V Scaling of 0 - 10 V standard signal (value range: 0.000 - 9.999).
Table 21: Display RFAC
The decimal place for the ratio factor RFAC is fixed and cannot be changed.
