9.2. Operating levels and operating states
2 operating levels and 2 operating states AUTOMATIC and MANUAL are available for the operation and setting
of the eCONTROL Type 8611.
level 1: process operating level
At level 1, the user can switch between 2 operating states AUTOMATIC and MANUAL.
Operating state: autOMatic: The normal control mode is executed and monitored.
Manual: Quick access to important functions and test functions.
The operating state MANUAL is indicated on the display by a hand
symbol.
level 2: configuration level
At level 2, the user can change the basic settings of the controller.
After switching on the operating voltage, the controller is at the process operating level and in the AUTOMATIC
operating state.
When the operating voltage is applied, the software version will light up on the display for approx. 2 seconds. If
the ENTER key is pressed during these 2 seconds, the sub-version is displayed. After this, the controller is once
again at the process operating level.
9.2.1. switching between the operating levels and operating
states
The ENTER key is pressed to change the operating level and operating state (see Figure 11).
Any changes made within the configuration level are only stored after returning to the process operating
level.
Changes in the MANUAL operating state can be made while the controller is running.
process operating level
Operating state
AUTOMATIC
025.5
L /M
0..... 9
ENTER
O
u
t
eCONTROL 8611
Press
button
< 1 s (short)
> 5 s (long)
configuration level
MODE
0..... 9
ENTER
O
u
t
eCONTROL 8611
MODE
UNIT
.
.
.
.
END
Operating state
MANUAL
SET
PARA
VALV
TEST
BACK

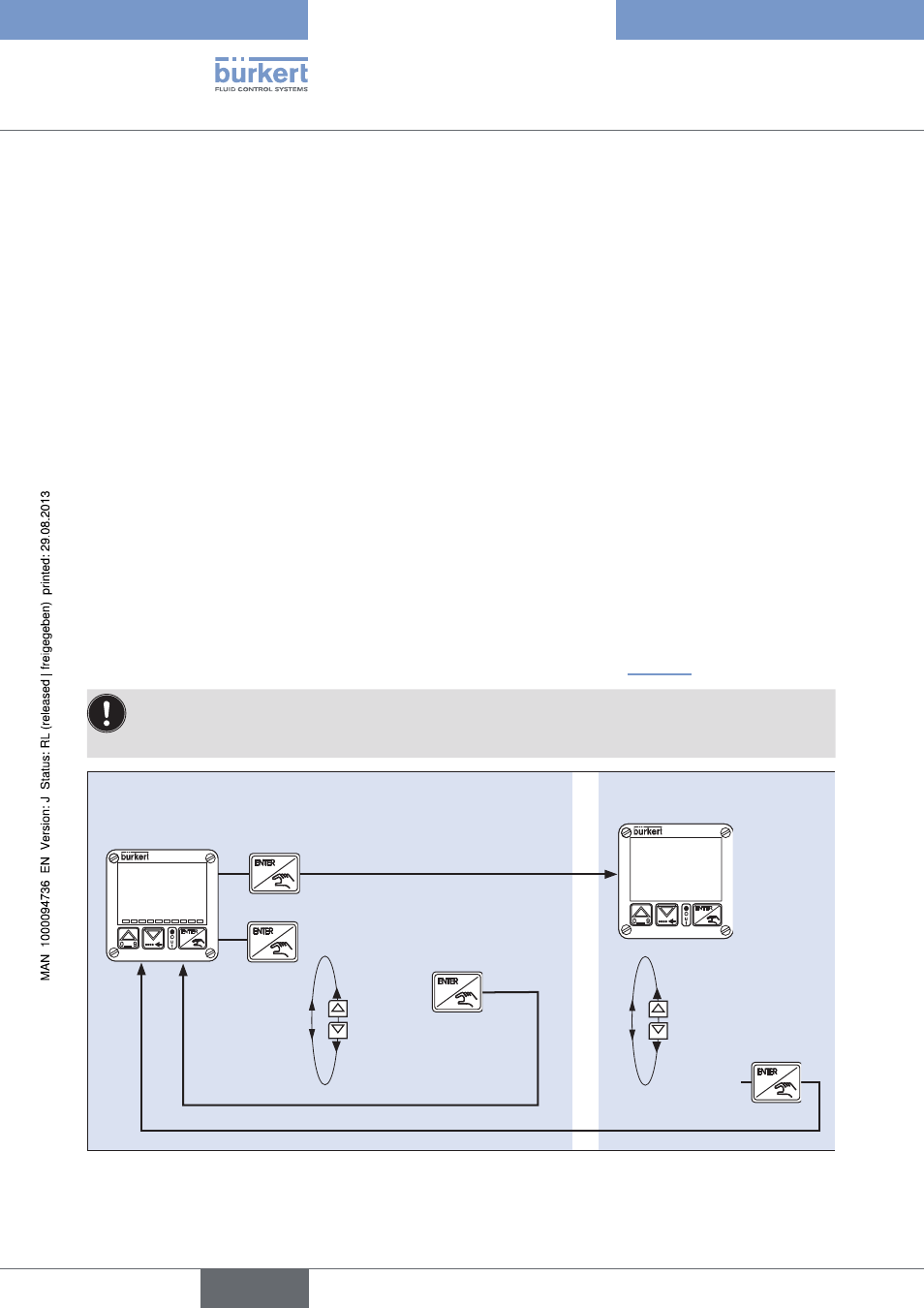

Figure 11: Changing the operating level and operating state
