Assembly
7.2. attachment to a proportional valve
Attach the process controller Type 8611 to a proportional valve as described below.
→
Loosen the 4 screws at the front of the process controller.
NOTe!
Be careful when opening the process controller so as not to damage the internal cabling.
• Remove the cover carefully from the housing without jerks.
→
Remove the cover carefully from the housing.
→
Place the supplied flat seal over the contact tabs.
→
Attach the housing of the process controller on the contact tabs and fasten with the valve screw.
→
Check the correct position of the profile gasket at the housing of the process controller.
→
Place cover on the housing of the process controller and fasten with 4 screws.
If necessary, the cover can also be mounted in a position rotated by 90 ° to the left or the right.
Proportional valve
Contact tabs
Profile gasket
Valve screw
Flat seal
Housing of the process controller
Cover of the
process controller
4 screws for fastening the cover

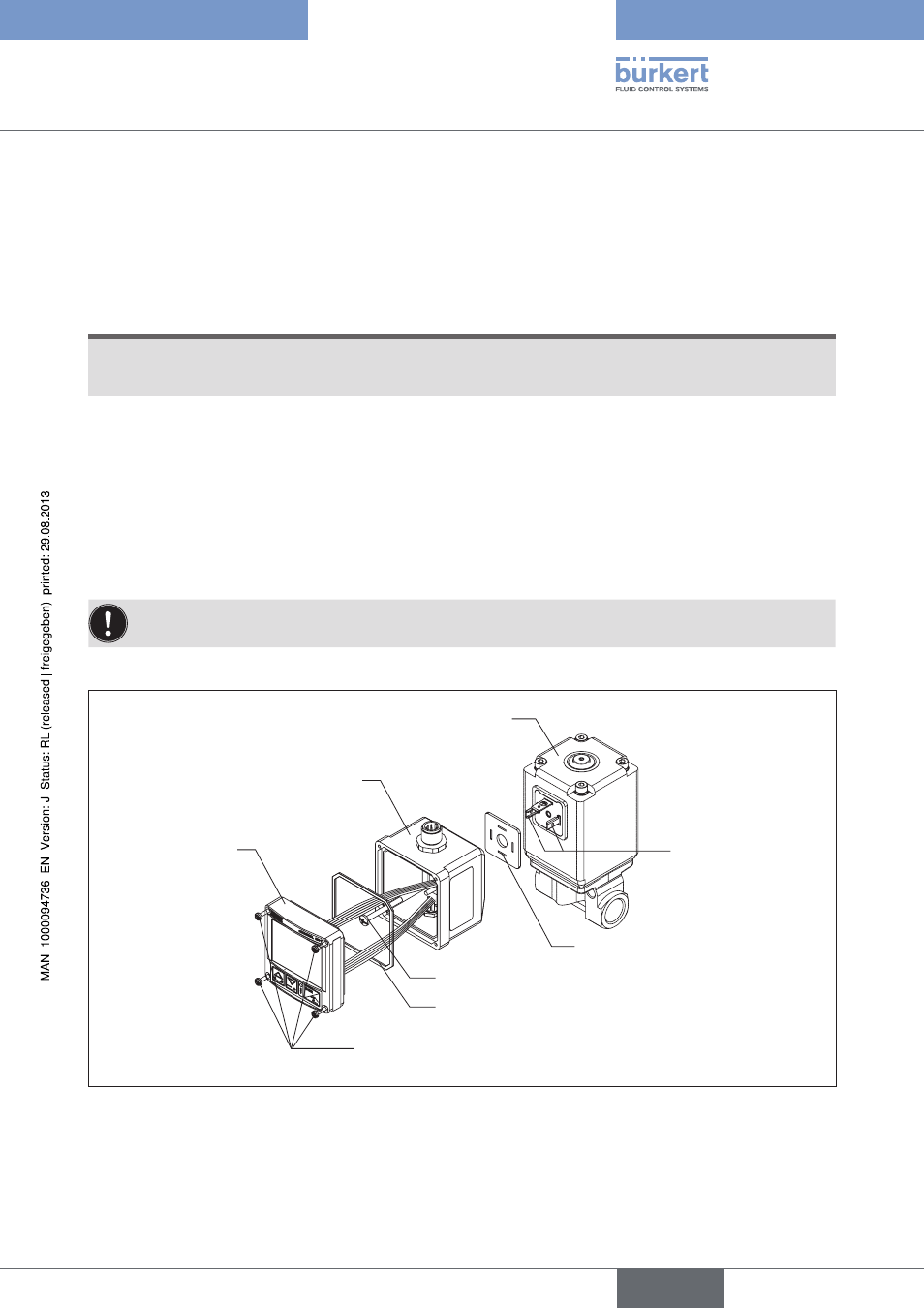

Figure 5: Attachment of the process controller to a proportional valve
