B_in - configuration of binary input, B_in - configuration of binary input, See chapter 12.14 – Burkert Type 8611 User Manual
Page 81
81
FunctionsoftheConfigurationLevel
12.14.
B_IN - configuration of binary input
The binary input allows for starting various controller functions. The feedback from a limit switch (for filling level,
pressure, etc.), the feedback from a PLC, etc. may be binary input signals.
What menu options are displayed for the configuration depends on the actuating element set in the
MODE menu.
Setting in the menu:
NO
INV
STOP
*
)
OPEN
*
)
SAFP
HOLD
CLOS
*
)
B_O1
B_IN
*
)
The display depends on the actuating
element set in the
MODE menu
Enter value
HIGH
HIGH
OPEN
HIGH
HIGH
LOW
LOW
CLOS
LOW
LOW
000
PRZV
*
)
000
mA
*
)
000
V
*
)
000
OPEN
*
)
000
CLOS
*
)

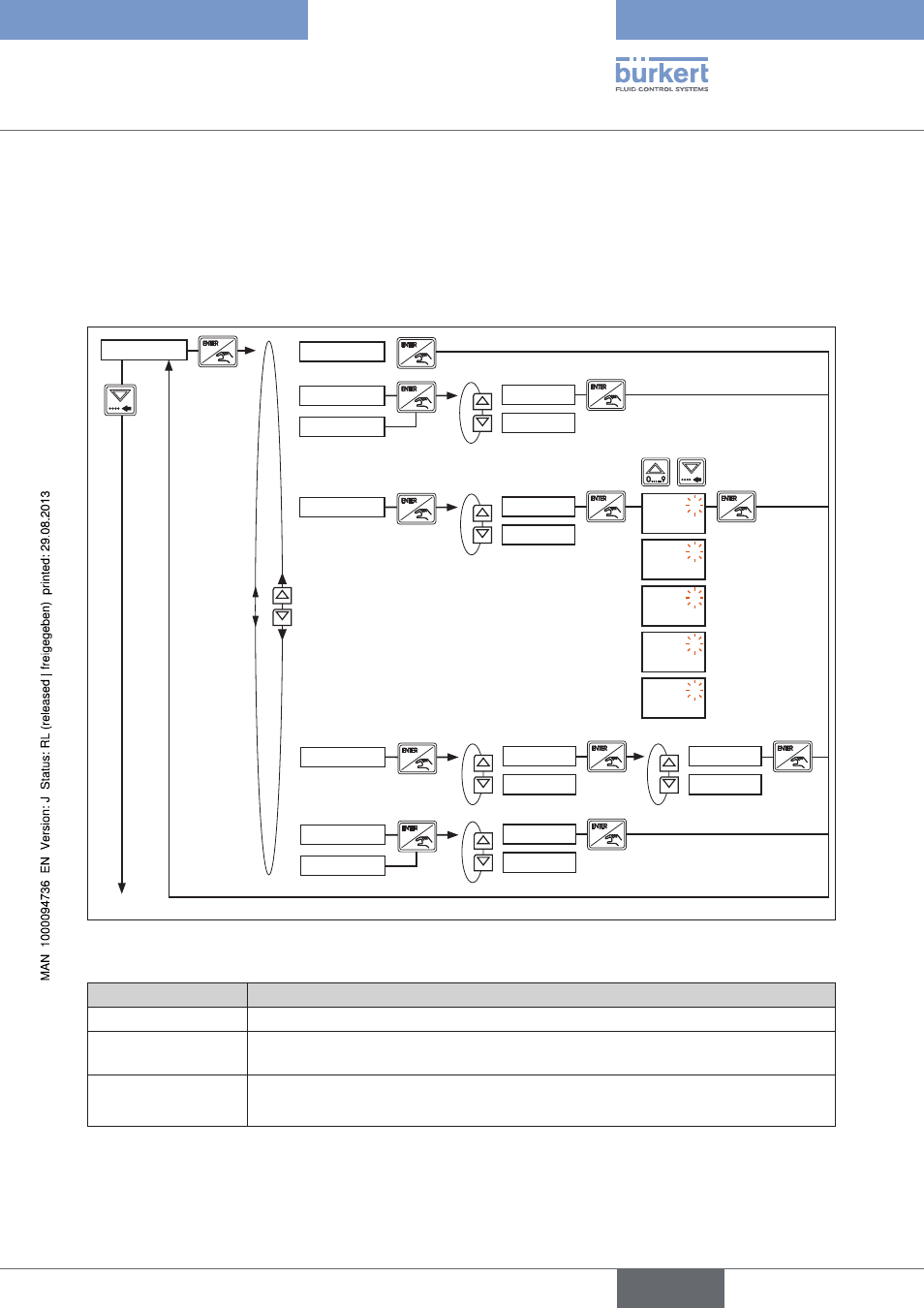

Figure 60:
B_IN; Configuration of binary input
display
description
NO
Binary input not active
INV
Inverting of the effective direction defined in the
PARA menu. By this, the controller can
be switched via an external signal from "cooling" to "heating", for example.
HOLD
Stopping the controller when binary input is active. Valve remains in current position.
If control is active, the "2" is displayed.
english
Type 8611
