FunctionsoftheConfigurationLevel
12.9. calibration of the assembly models:
Wall, rail, valve or fitting assembly
Menu description circular plug-in
connector pin external circuit
SETA,
SETV
Use standard signal transmitter to apply a
defined voltage (max. 10 V) or defined current
(max. 20 mA), as shown in the columns on the
right.
Use the arrow keys to change the displayed value
until the display corresponds to the default.
M 12,
8-pole
5
4
3
2 1
8
7
6 5 (+)
7 (–)
IN A,
IN V
Apply defined current to sensor input, as shown
in the columns on the right.
Use the arrow keys to change the displayed value
until the display corresponds to the default.
M 8,
3-pole
4
3 1
4 (+)
3 (–)
OUTA,
OUTV
Connect multimeter to circular plug-in con-
nector, as shown in the columns on the right, and
measure the current and voltage value.
Use the arrow keys to change the current or
voltage value until 20 mA or 10 V are displayed
on the multimeter.
M 12,
8-pole
5
4
3
2 1
8
7
6 6 (–)
4 (+)
Wall assembly (only identification number 182383)
M 8,
4-pole
2
1
4
3
2 (–)
4 (+)
TEMP
Use standard signal transmitter to apply a tem-
perature of 0 °C or a resistance of 100 Ω, as
shown in the columns on the right. Press the up
arrow key to accept the value.
Increase temperature value to 100 °C or resis-
tance to 138.506 Ω. Press the up arrow key to
accept the value.
Confirm the SAVE display with the ENTER key to
save the measurement.
M 8,
3-pole
4
3 1
4
3

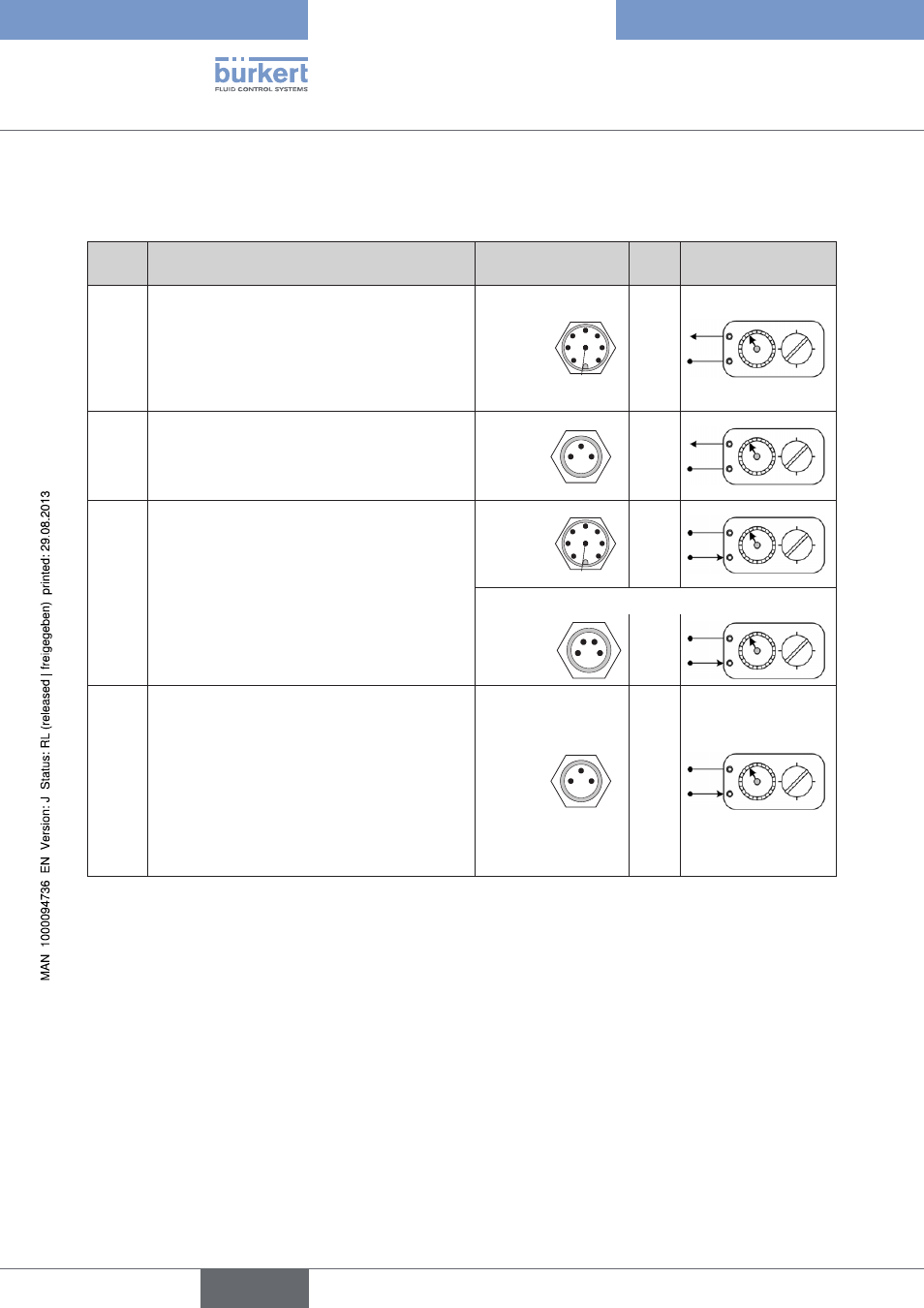

Table 24: Calibration of the assembly models: Wall, rail, valve or fitting assembly
