12.15.2. LIMT - configuration of the binary output as limit switch
This menu can be used to set alarms or switching contacts if specific limit values are exceeded or not reached.
Setting in the menu:
B_O2
NO
PULS
LIMT
2_P
B_O1
REL
ABS FLOW * )
POS * )
PRES * )
TEMP * )
LEVL * )
VAL * )
0002
HYLO
0002
HYHI
0002
PVLO
0002
POSL
0002
PVHI
0002
POSH
HIGH
LOW
00.0
DLY
NO
INV
NO
TEXT
NO
LED
YES
INV
YES
TEXT
YES
LED
For description of the configuration
see „12.15.3. 2_P - Configuration of the binary output as
2-state controller“
For description of the configuration
see „12.15.1. PULS - Configuration of the binary output as pulse output“
* ) The display depends
on the control variable
selected in the
MODE
menu (see chapter 12.3)

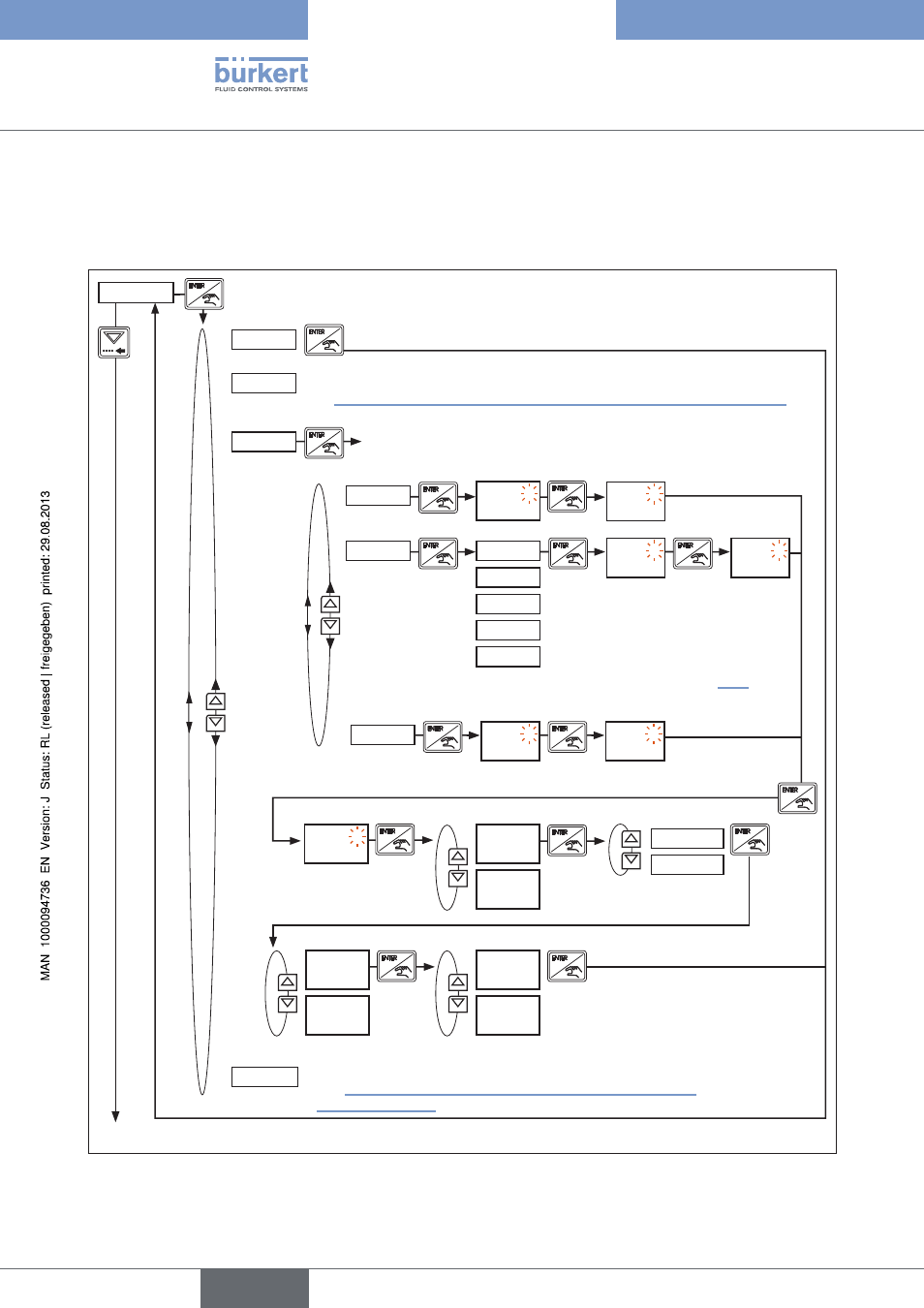

Figure 62: B_O1; Configuration of the binary output as limit switch (LIMT)
