Série lsb – Xylem LSB User Manual
Page 69
Instructions de montage, de service et de maintenance
Série LSB
LSB 100-france
Page 65
Revision 02
Artikel Nr. 771076129
Ausgabe 01/2010

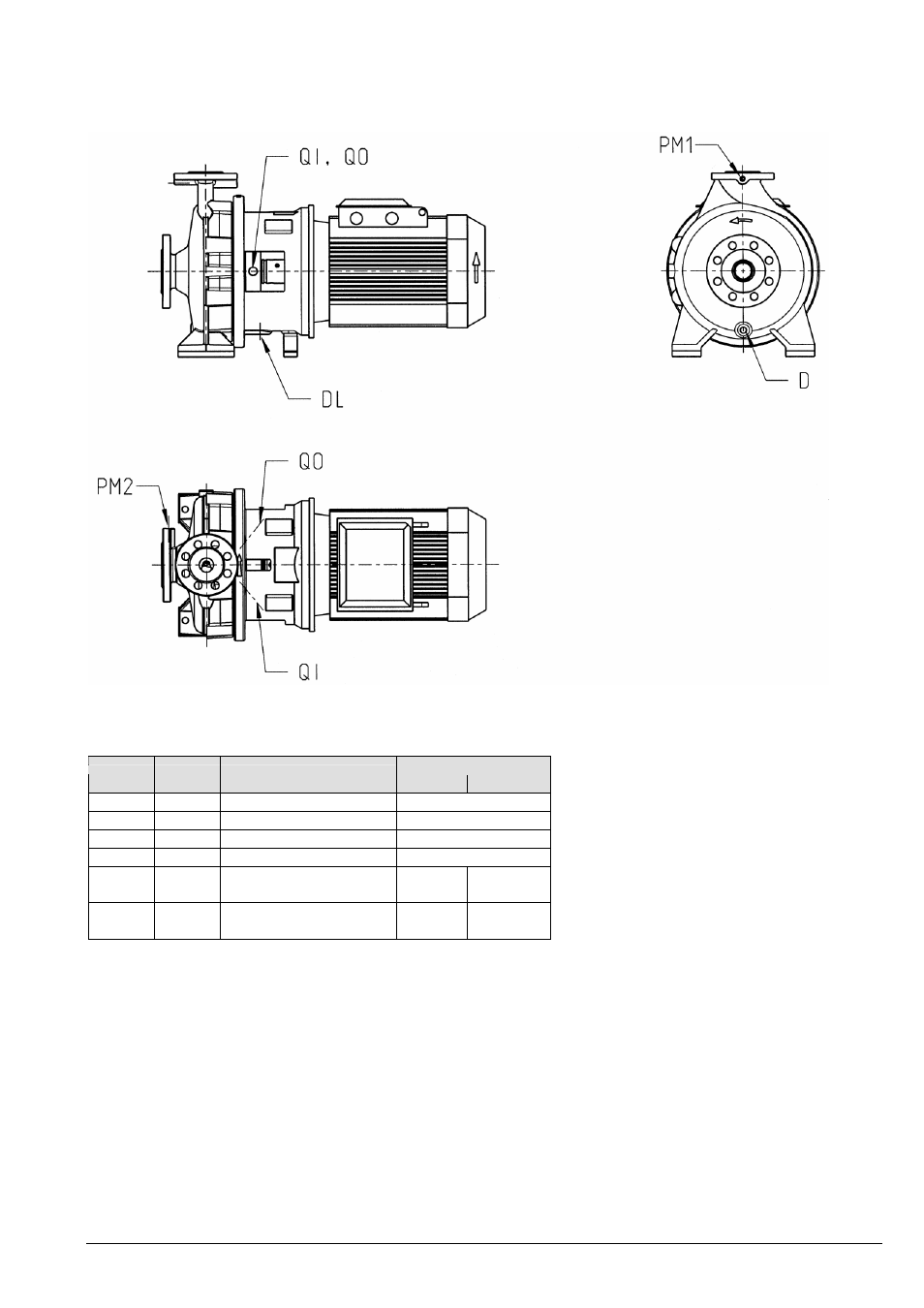

Raccordements
Corps de palier
Code Nombre
Raccordements
24
32, 42, 48
PM1 *)
1
Mesurage de la pression
1/4-18 NPT
PM2 *)
1
Mesurage de la pression
1/4-18 NPT
D
1
Vidange (corps)
3/8-18 NPT
DL
1
Vidange (lanterne)
G 1/2
QI **)
1
Entrée quench
1/4-18
NPT 3/8-18 NPT
QO **)
1
Sortie quench
1/4-18
NPT 3/8-18 NPT
*) ... optionnel, possible pour les exécutions S2..1 et S4..2
**) ... exclusivement pour l’exécution S4..2
Sous réserve de modifications techniques !
Non à l’échelle !
