Model lsb – Xylem LSB User Manual
Page 103
Installation, Operation and Maintenance Instruction
Model LSB
LSB 100-english
page 99
Revision 02
Artikel Nr. 771076129
Ausgabe 01/2010

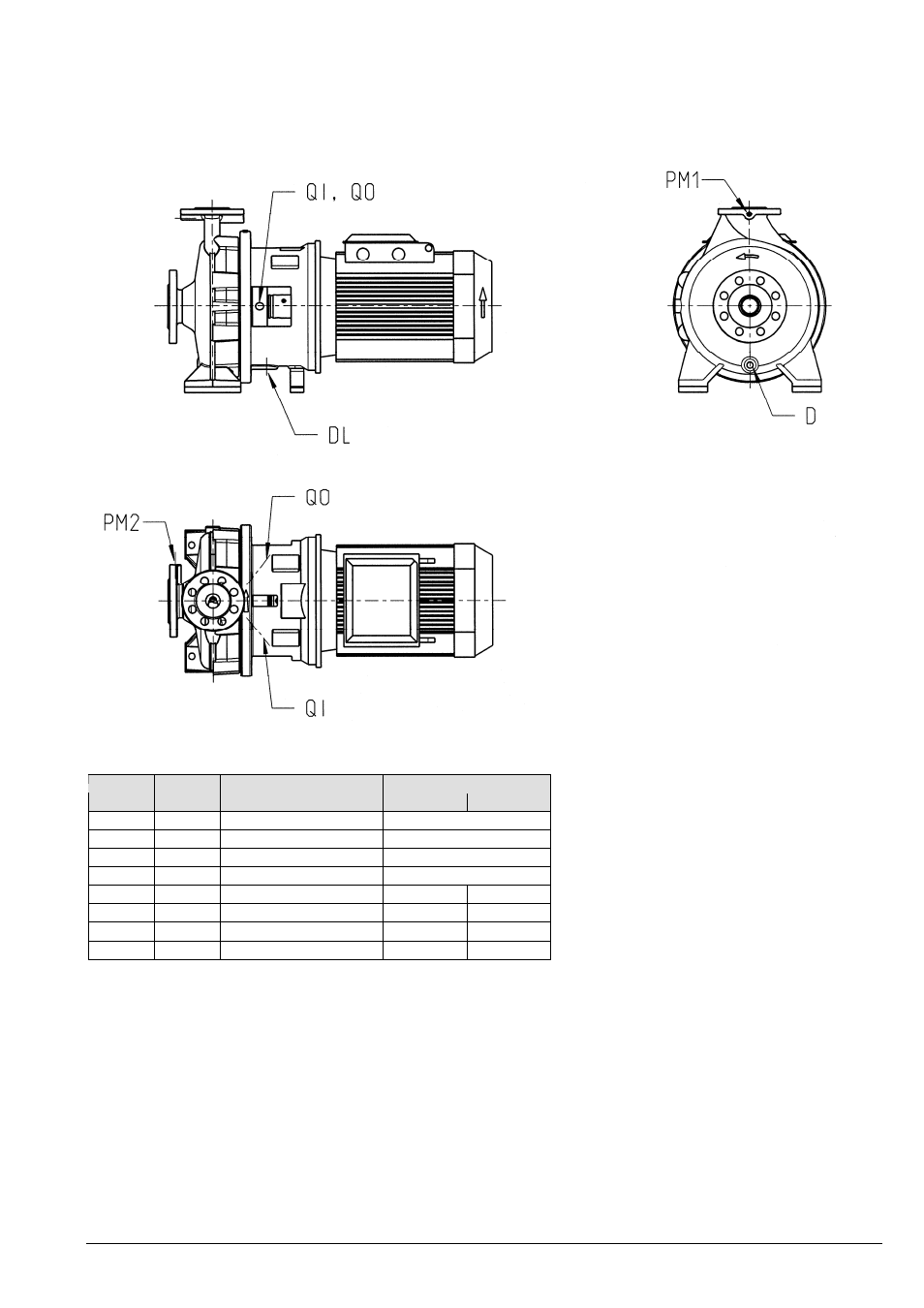

Connections:
Bearing bracket
Code Number
Connection
24
32, 42, 48
PM1 *)
1
pressure gaging
1/4-18 NPT
PM2 *)
1
pressure gaging
1/4-18 NPT
D
1
draining (casing)
3/8-18 NPT
DL
1
draining (lantern)
G 1/2
QI **)
1
Quench-suction
1/4-18 NPT 3/8-18 NPT
QO **)
1
Quench-discharge 1/4-18 NPT 3/8-18 NPT
*) ... optional, possible with designs S2..1 and S4..2
**) ... only with design S4..2
Subject to techn. alterations!
Not to scale
