Baureihe lsb, Einbau-, betriebs- und wartungsanleitung – Xylem LSB User Manual
Page 34
Einbau-, Betriebs- und Wartungsanleitung
Baureihe LSB
LSB 100-german
Seite 30
Revision 02
Artikel Nr. 771076129
Ausgabe 01/2010

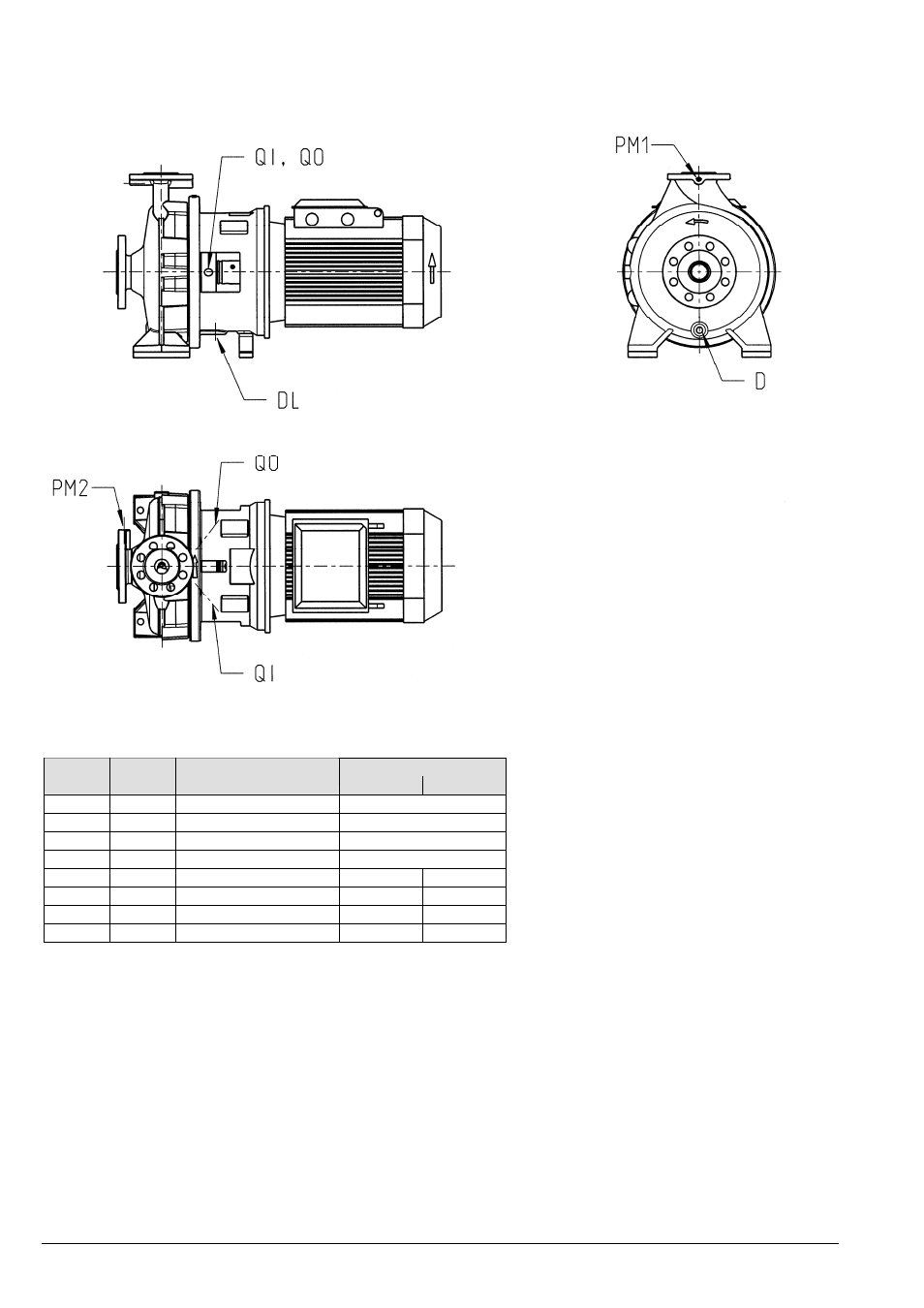

Anschlüsse
Lagerträger
Code
Anzahl
Anschlüsse
24
32, 42, 48
PM1 *)
1
Druckmessung
1/4-18 NPT
PM2 *)
1
Druckmessung
1/4-18 NPT
D
1
Entleerung (Gehäuse)
3/8-18 NPT
DL
1
Entleerung (Laterne)
G 1/2
QI **)
1
Quench-Eintritt
1/4-18 NPT 3/8-18 NPT
QO **)
1
Quench-Austritt
1/4-18 NPT 3/8-18 NPT
*) ... optional, bei Ausführung S2..1 und S4..2 möglich
**) ... nur bei Ausführung S4..2
Technische Änderungen vorbehalten!
Nicht maßstäblich!
