Overlay

Use this function to add an overlay to the selected graph.

Visible Spectrum

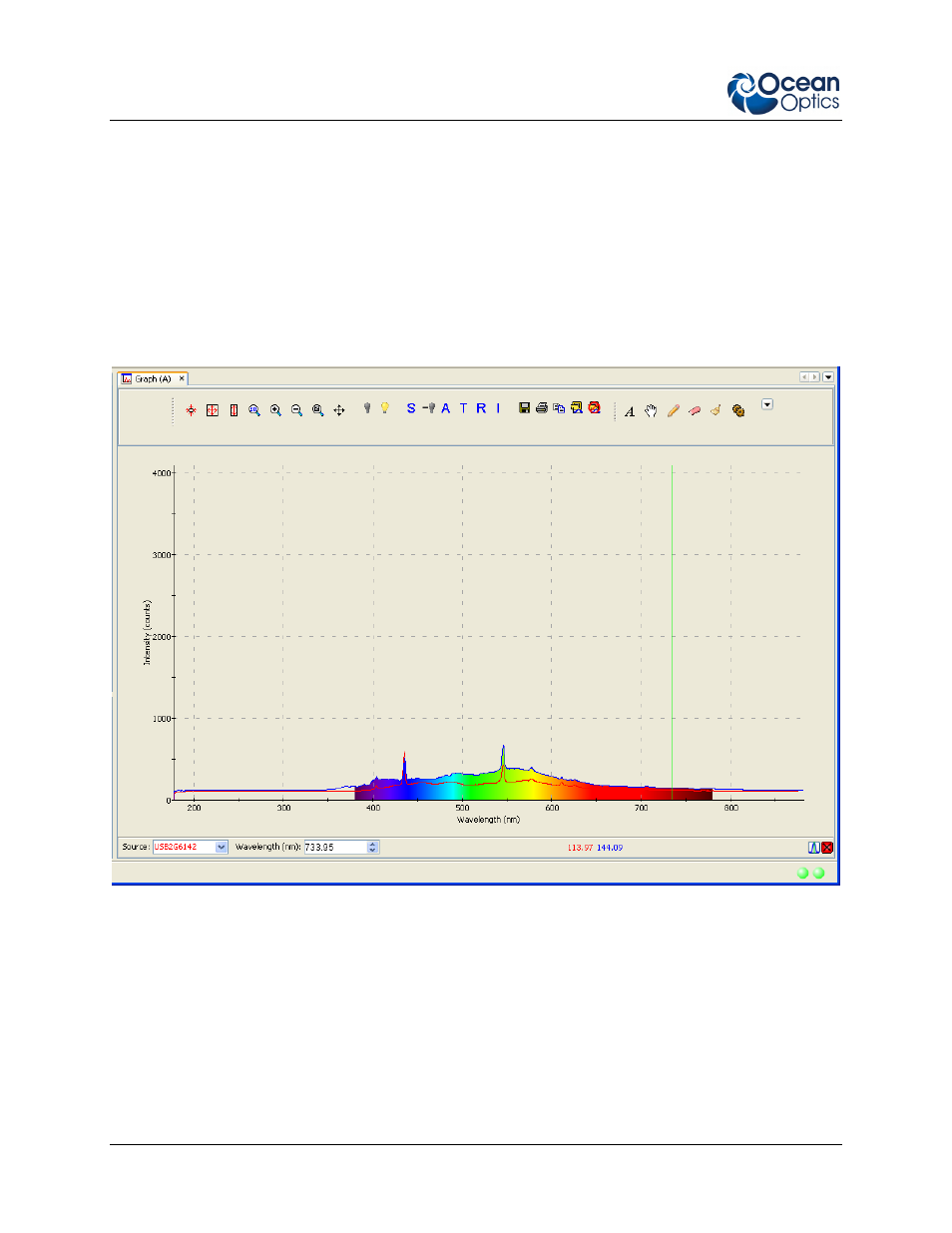

This option allows you to display the visible spectrum on your graph. You can display the spectrum the
full height of the chart, as a bar on the x-axis, or beneath the selected trend line (as shown in figure
below).

Spectrum Range

Spectrum Range allows you to display captions for the following spectrum ranges: Gamma, X-ray, UV,
Visible, Near infrared, Mid infrared, Far infrared, Microwaves, and Radiowaves.
