Page 336
B-46
WorkCentre Pro 665/685/765/785

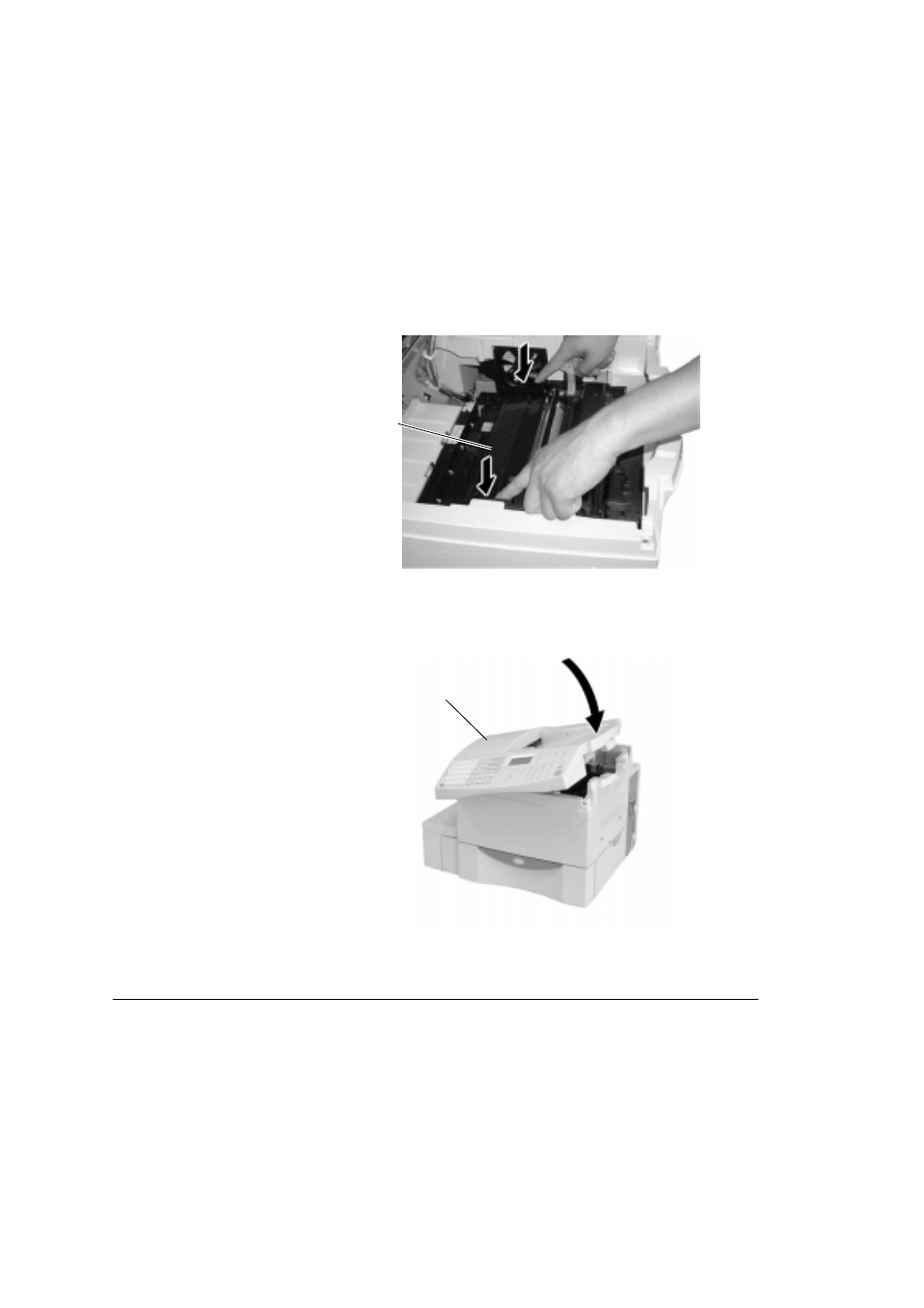

10. Press firmly on the green squares on the Drum Unit until the
Drum Unit clicks into place. The following figure shows how to
press the Drum Unit into place.
11. Close the Top Cover. Press down the Top Cover until a “click” is
heard to ensure the cover is closed.
Installing the maintenance kit
An Installation Sheet will be provided to the customer in the
Maintenance Kit packaging.
Drum Unit
029
Top Cover
101
