B-34 WorkCentre Pro 665/685/765/785
4. Place the Developer Assembly on a level surface.
5. Lift up on the 2 green handles to separate the Drum Unit from the

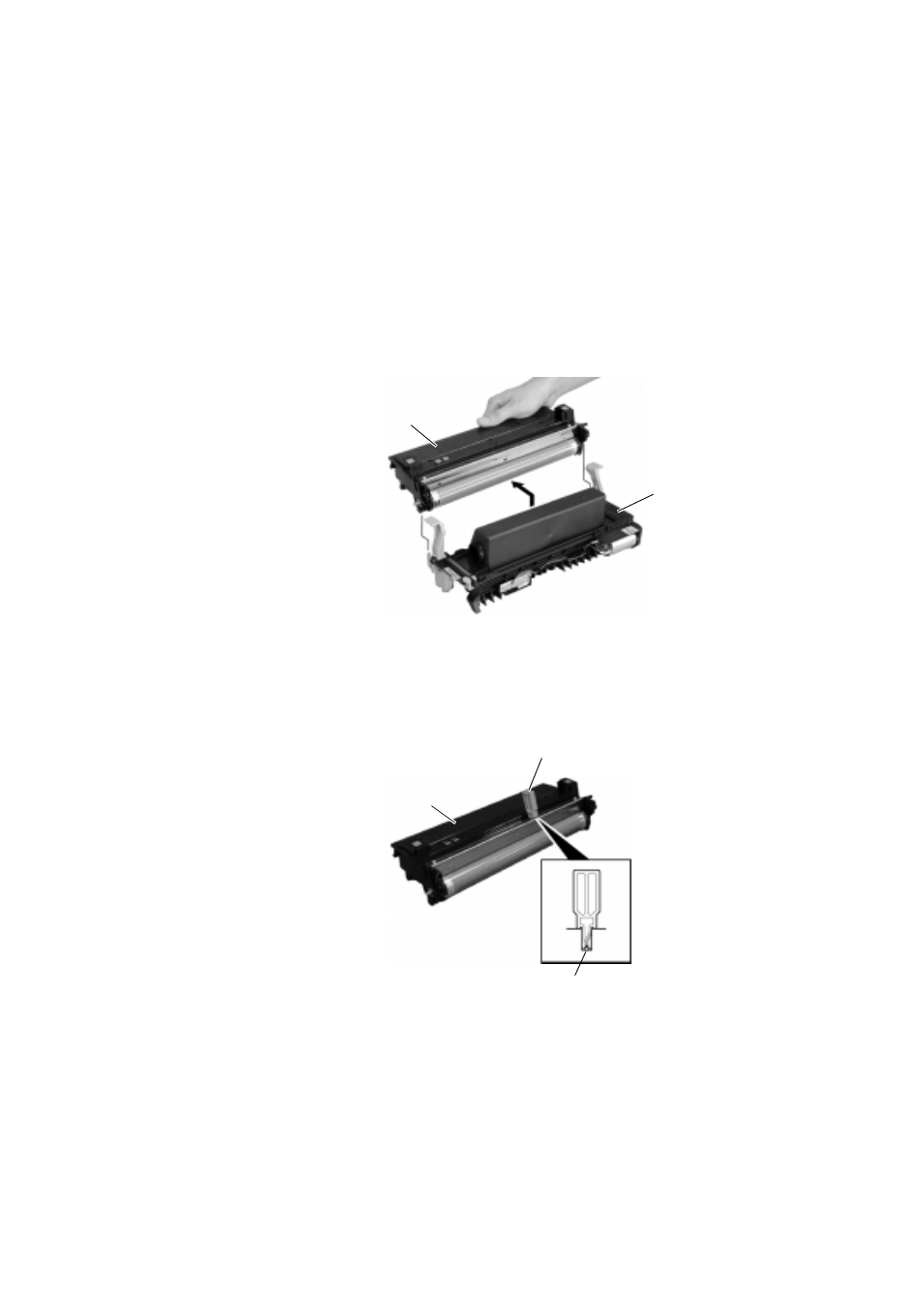

Developer Assembly. Place the Drum Unit on a level surface. The
following figure shows the Drum Unit and the Developer
Assembly.
6. Locate the Charger Wire on the Drum Unit.
7. Use the Charger Cleaner to lightly wipe the Charger Wire on the
Drum Unit. The following figure shows how to clean the Charger
Wire.
Drum Unit
Developer
098
Assembly
Drum Unit
Charger Cleaner
Charger Wire
088
