To clean the Developer Assembly
6.
Lift up on the 2 green handles to separate the Drum Unit from the

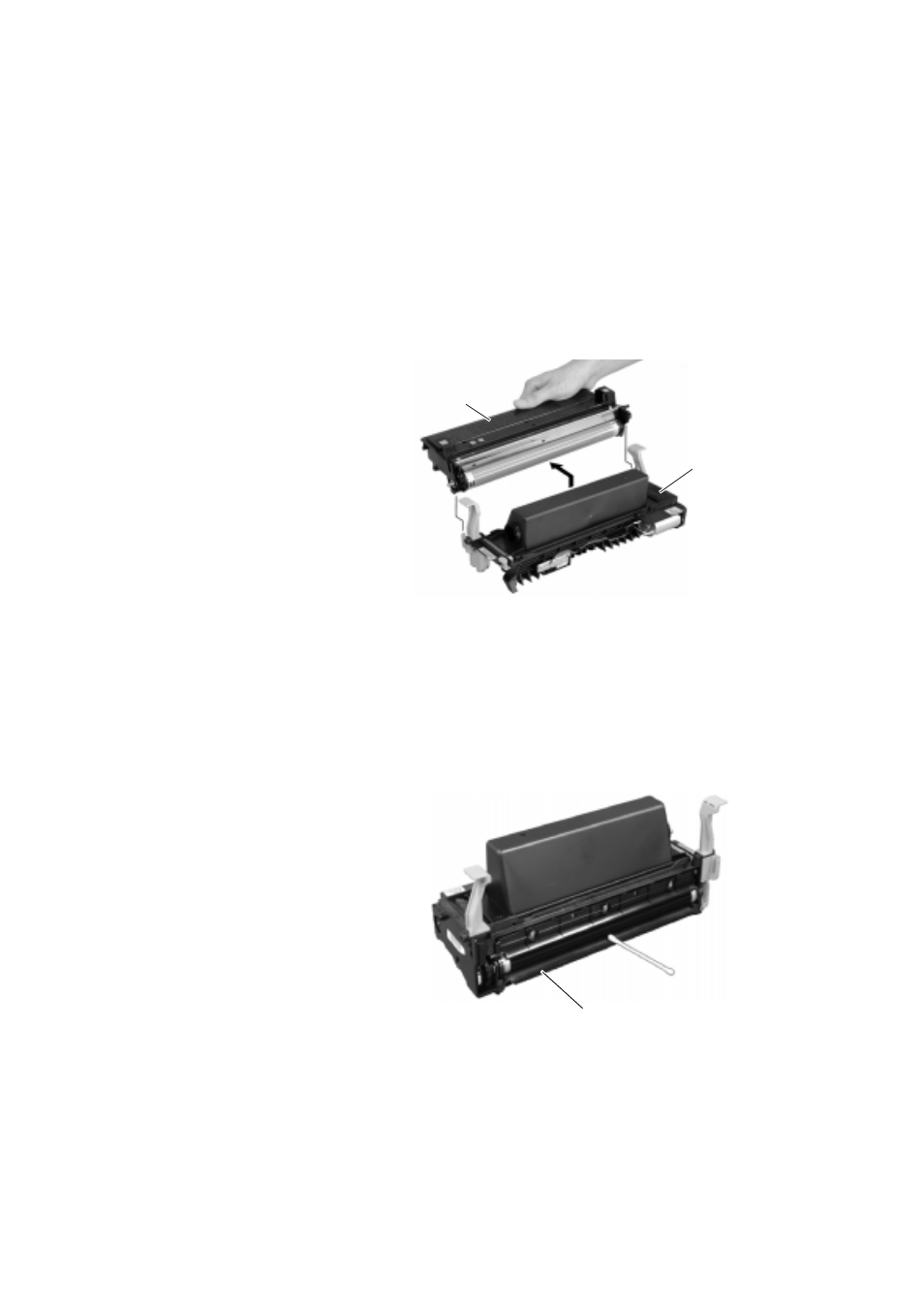

Developer Assembly. The following figure shows the Drum Unit
and the Developer Assembly.
7.
Cover the entire Drum Unit with a clean cloth to protect the drum
from exposure to light.
8.
Place the Developer Assembly over paper to protect the surface
on which you are working.
9.
Use a cotton swab to clean above the Mylar Sheet of the
Developer Assembly. The following figure shows how to clean the
Mylar Sheet.
Drum Unit
Developer
098
Assembly
105
Mylar Sheet
