WorkCentre Pro 665/685/765/785

B-31

Cleaning the Charger Wire and the Laser Beam Window

Clean the following parts of the machine when you replace the Drum
Unit or the ozone filter. The period for cleaning is every 10,000 pages
or every 6 months.

Laser Beam Window

The Laser Beam Window is located on the under side of the Top
Cover.

Charger Wire

The Charger Wire is located on the Drum Unit above the green
drum roller.

Use the following procedure to clean the charger wire and the laser
beam window:

1.

Grasp the Top Cover Open Lever and open the Top Cover.

WARNING

Do not touch the fuser housing inside the machine. The fuser
housing is extremely hot while the machine is operating.

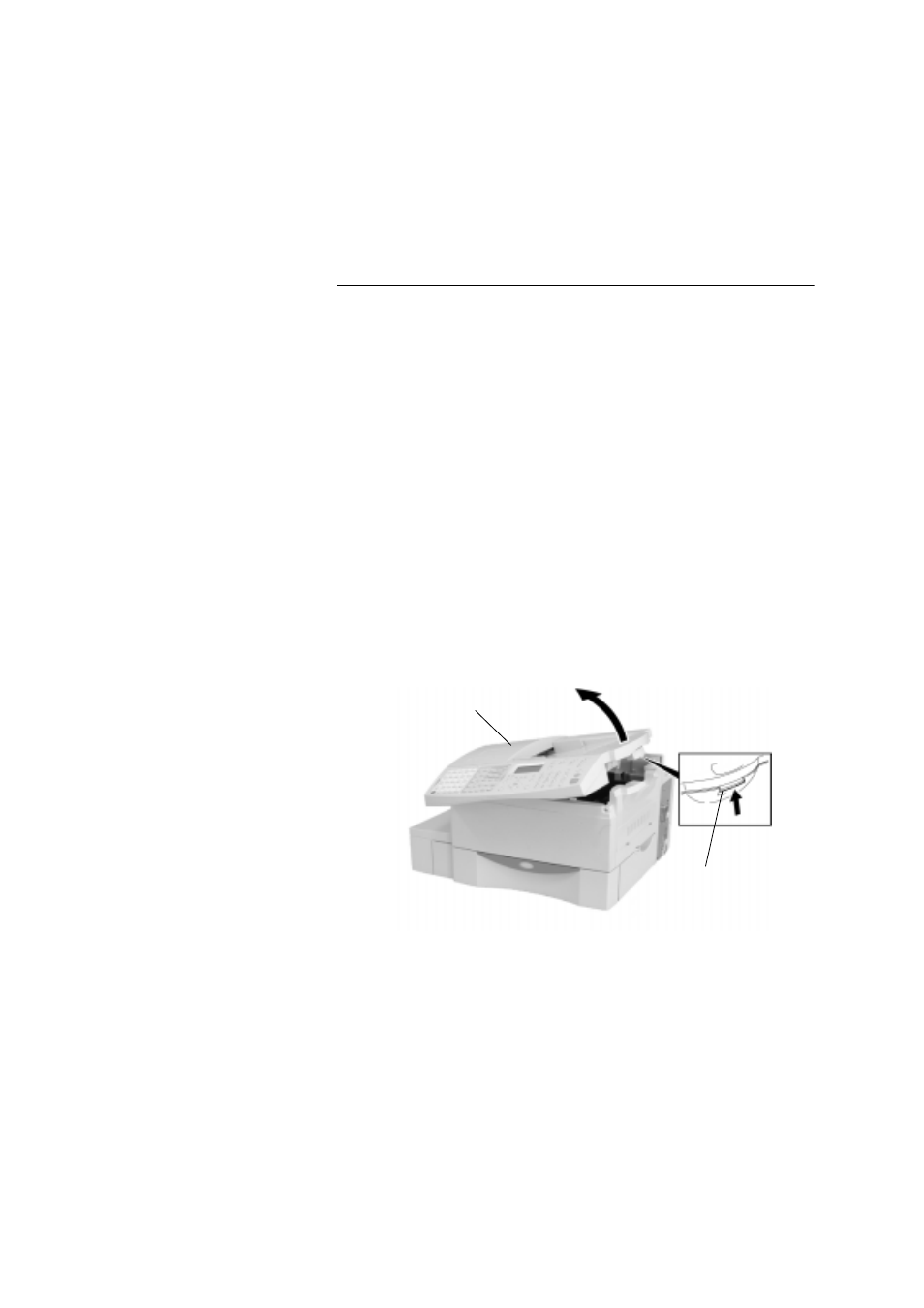

Top Cover

Top Cover
Open Lever
