Troubleshooting
WorkCentre Pro 665/685/765/785
16-11
3.

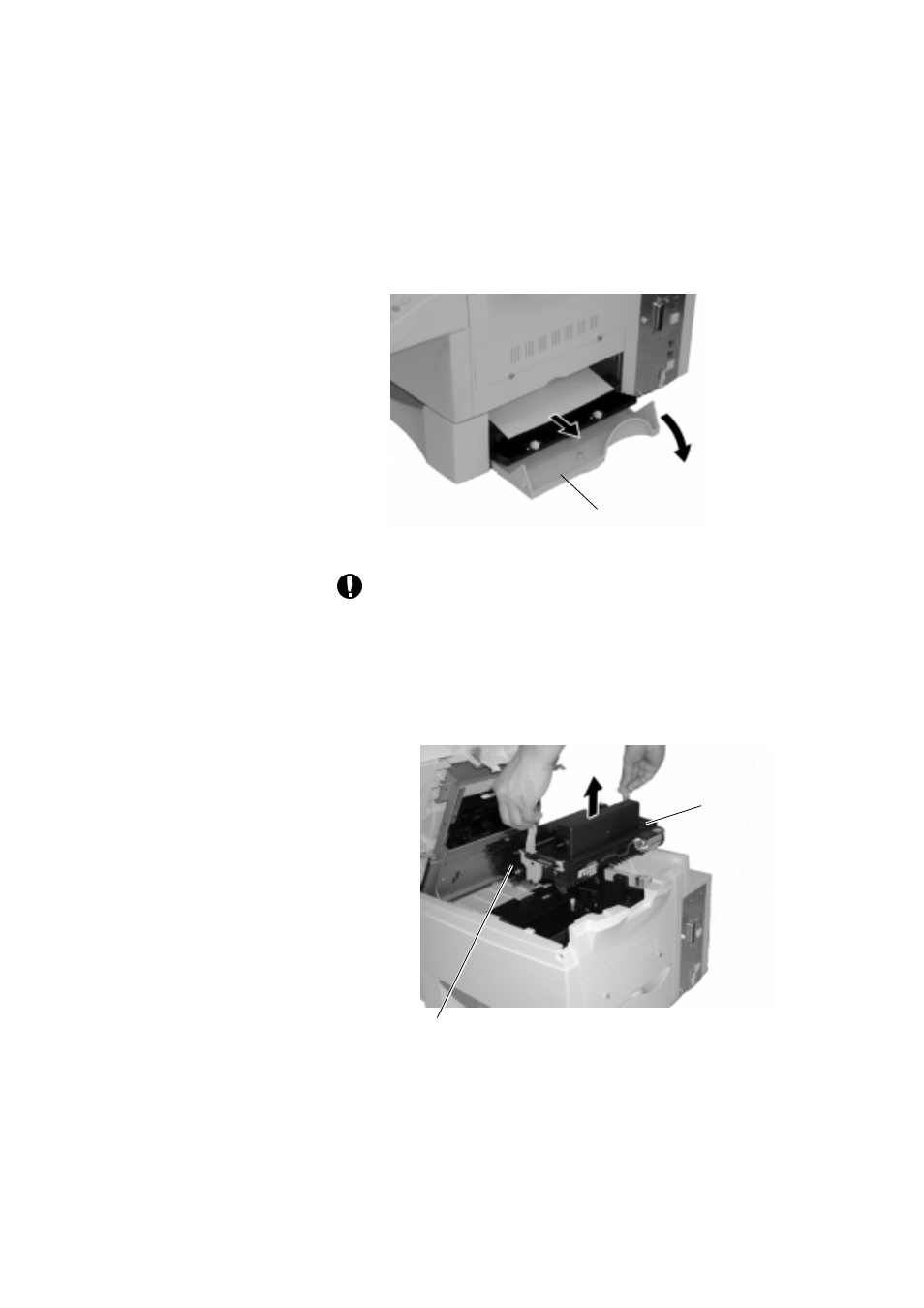

Open the Right Side Cover and remove any jammed paper.
CAUTION
Always hold the Developer Assembly by the green
handles. Do not expose the green drum to light for
more than 3 minutes. Never expose it to direct
sunlight or touch the green drum. Damage or poor
print quality may result.
4.
Remove the Developer Assembly with the Drum Unit.
Right Side Cover
064
Developer
Drum Unit
065
Assembly
