WorkCentre Pro 665/685/765/785
B-17
4.
Place the Developer Assembly on a flat clean surface. Discard of
the used Drum Unit properly.
5.
Position the new Drum Unit with the green drum surface facing
the black toner roller on the Developer Assembly. Without
touching the green drum surface, hook the Drum Unit to the

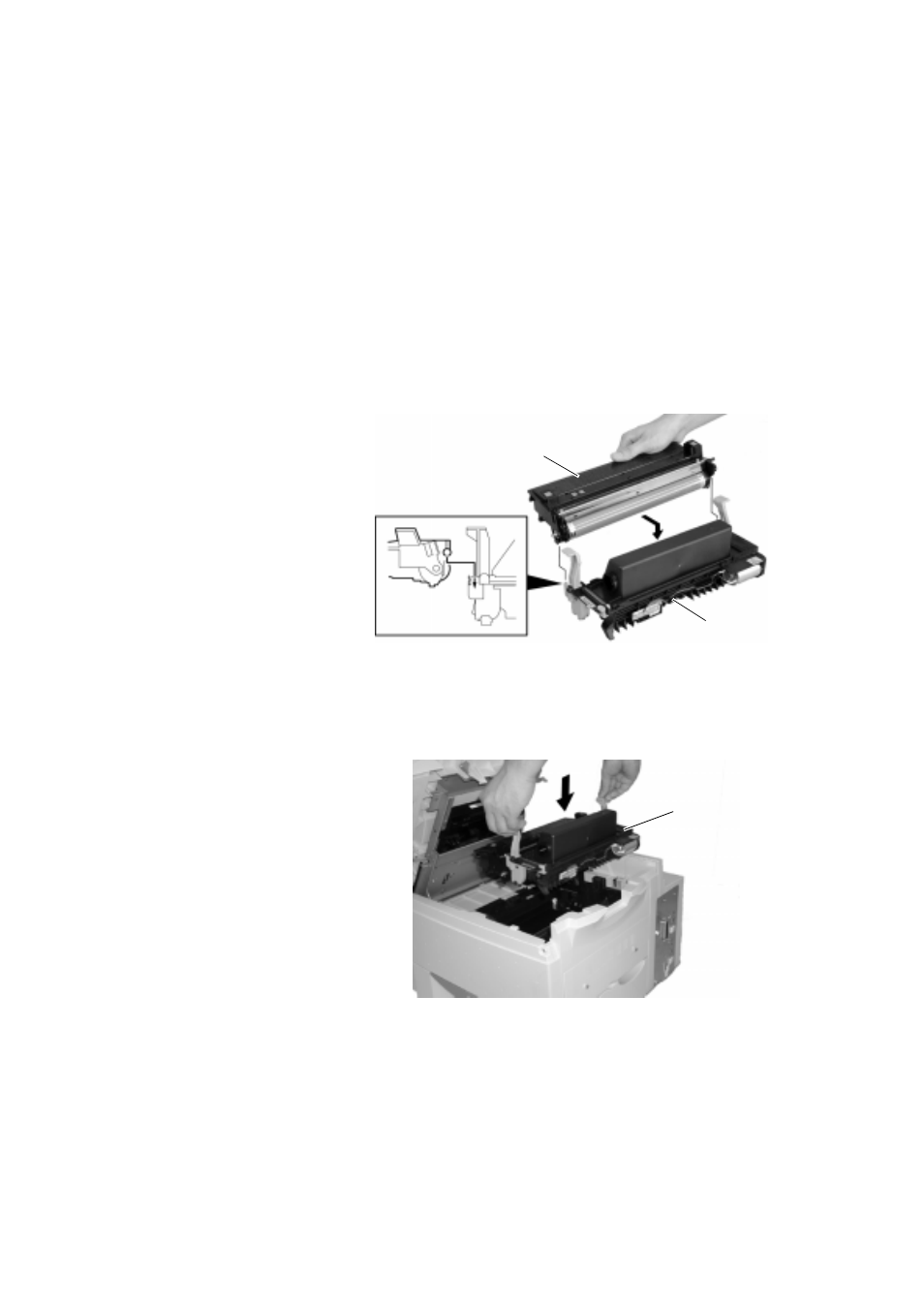

Developer Assembly. The following figure shows how to join the
Drum Unit and the Developer Assembly.
6.
Holding the Developer Assembly by the green handles, align the
three shafts on the Developer Assembly sides with the slots in
the machine frame. Lower the assembly into the machine.
Drum Unit
Developer
026
Assembly
Developer
027
Assembly
