B-44
WorkCentre Pro 665/685/765/785
8.

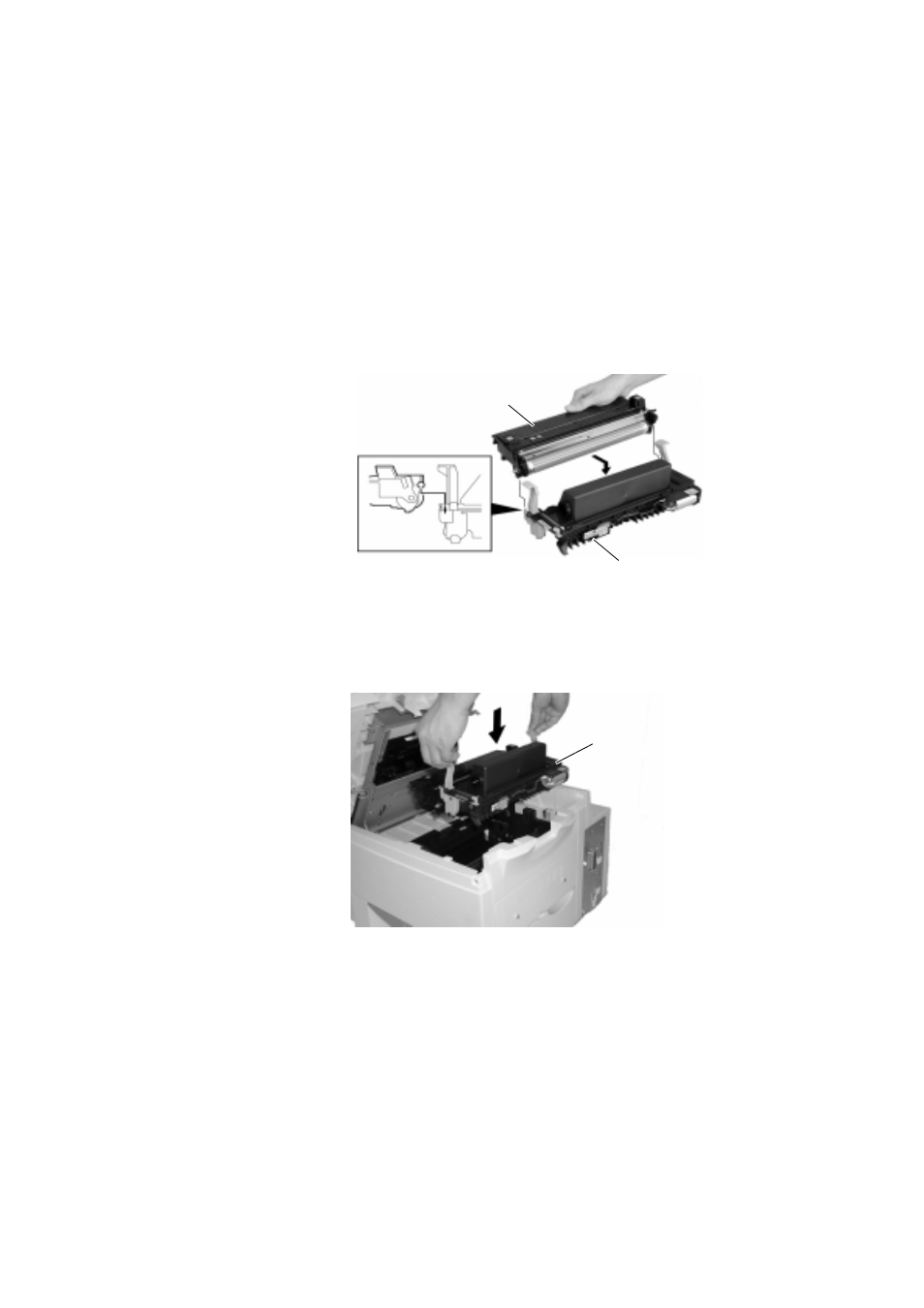

Position the Drum Unit with the green drum surface facing the
black toner roller on the Developer Assembly. Without touching
the green drum surface, hook the Drum Unit to the Developer
Assembly. The following figure shows how to join the Drum Unit
and the Developer Assembly.
9.
Holding the Developer Assembly by the green handles, align the
three shafts on the Developer Assembly sides with the slots in
the machine frame. Lower the assembly into the machine.
Drum Unit
Developer
026
Assembly
Developer
027
Assembly
